American Type Forged Swivel Coupler - Bulk Cloned

Adavantages:

1. High-Strength Material:

Manufactured from forged Q235 mild steel, providing an excellent balance of strength, ductility, and durability for heavy-duty construction loads.

2.Superior Load-Bearing Capacity:

The robust forged construction ensures high load-bearing capacity, offering exceptional safety and stability for workers and materials.

3. Simple and Quick Installation:

Designed for ease of use, allowing for rapid assembly and disassembly of scaffolding structures, significantly saving labor time and cost.

4. Extended Service Life:

The combination of high-quality material and forging process results in a long operational lifespan, even under frequent use and harsh conditions.

5. Versatile Surface Options:

Can be electro-galvanized (for good corrosion resistance) or hot-dip galvanized (for extreme corrosion resistance), making them suitable for both indoor and outdoor applications.

6. Globally Recognized Compliance:

Manufactured in accordance with European Standards (EN 74), ensuring high quality and acceptance on construction projects worldwide.

7. Universal Compatibility:

Standardized dimensions and design allow them to be used with various tube diameters (e.g., 48.3mm), making them versatile and interchangeable on different projects.

Contact Now E-Mail Telephone

Product Details

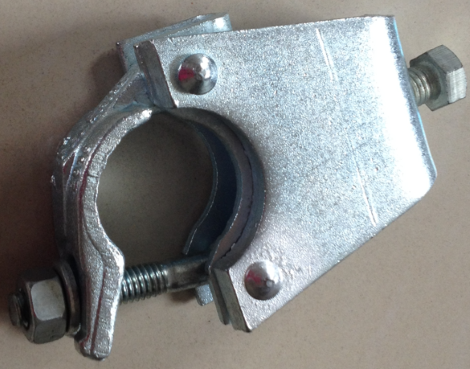

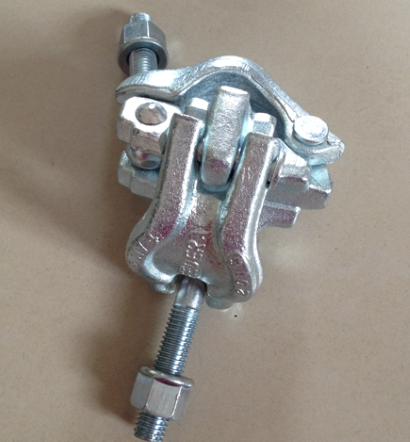

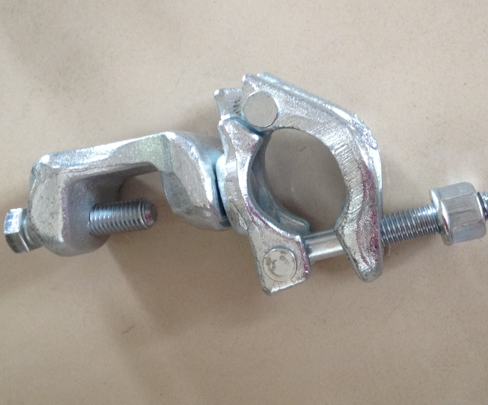

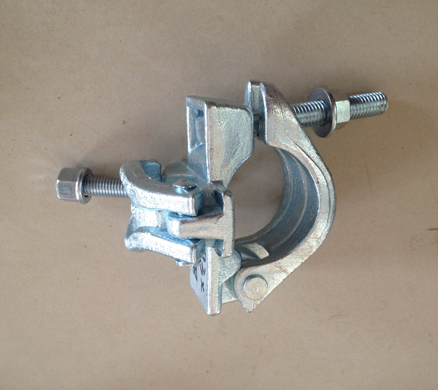

Scaffolding American Type Forged Swivel Coupler

an old factory

focus on scaffolding coupler production since 1995.

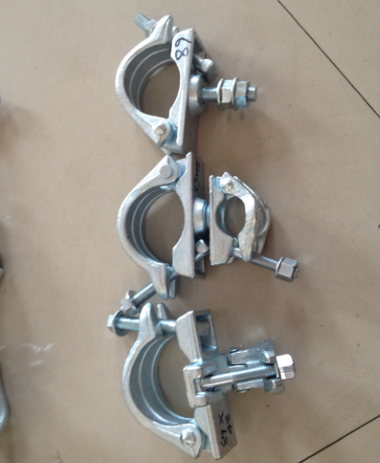

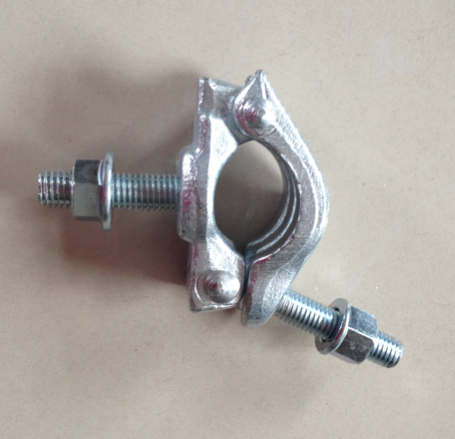

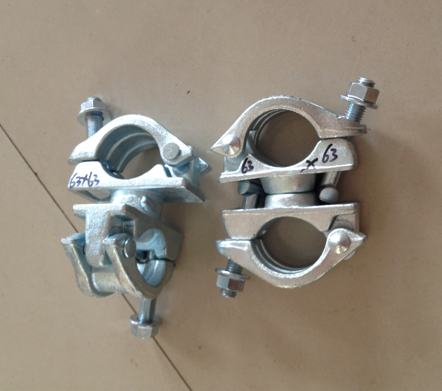

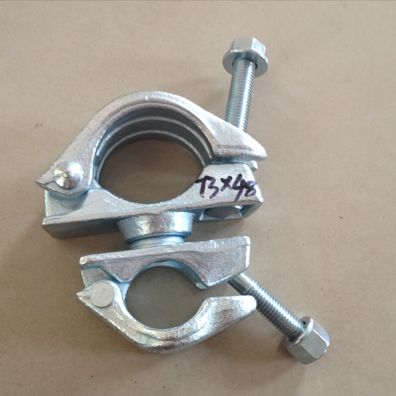

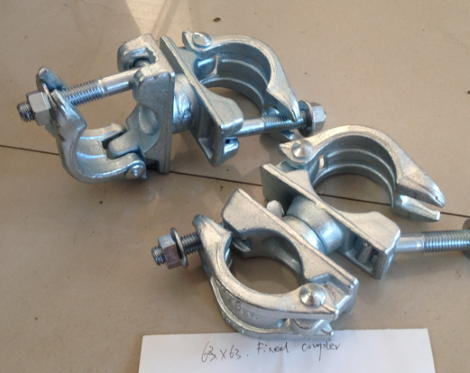

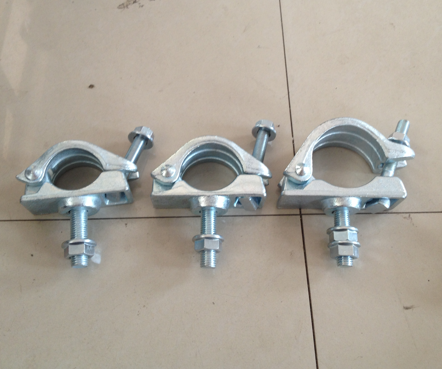

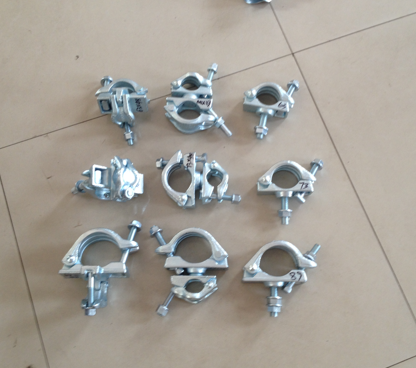

American Type Forged Swivel Couplers, Double Couplers, and Half Couplers are essential components in tubular scaffolding systems. Manufactured to meet rigorous American standards, these couplers are designed to securely connect scaffold tubes of various diameters, including the common sizes of 48.3mm (1-1/2"), 63mm (2-1/2"), 73mm (2-7/8"), and 89mm (3-1/2"). They are the backbone of safe and versatile access and support structures.

You can buy all kinds of couplers from fenghua factory.

Like Forged couplers and pressed couplers

Like British type coupler, Germany type couple, Italian type coupler in hot sale

Like 42/48/51/60/63/73/89mm American type coupler on sale.

Like Brazilian type coupler on sale.

Like Pressed Japanese type and Pressed Koran type couplers in hot sale.

Like Ringlock scaffolding related couplers are selling very well

Like Frame scaffolding related couplers are available.

Like casting wedge couplers

Features:

RFH-NO.	NAME	MATERIAL	SIZE(MM)	WEIGHT(KG)	SURFACE TREATMENT
RFH-A005	American Type Forged Swivel Coupler	Q235	48.3x48.3	1.77	Electro Zinc plated
RFH-A006	American Type Forged Double Coupler	Q235	48.3x48.3	1.61	Electro Zinc plated
RFH-A021	American Type Forged Double Coupler	Q235	48.3x73	2.45	Electro Zinc plated
RFH-A022	American Type Forged Swivel Coupler	Q235	48.3X73	2.51	Electro Zinc plated
RFH-A023	American Type Forged Double Coupler	Q235	48.3x63	2.22	Electro Zinc plated
RFH-A024	American Type Forged Swivel Coupler	Q235	48.3x63	2.38	Electro Zinc plated
RFH-A025	American Type Forged Swivel Coupler	Q235	48.3X89	2.97	Electro Zinc plated
RFH-A026	American Type Forged Double Coupler	Q235	48.3x89	2.86	Electro Zinc plated
RFH-A027	American Type 89 Half Coupler	Q235	89	2.36	Electro Zinc plated
RFH-A072	American Type 48.3 Half Coupler	Q235	48.3	0.98	Electro Zinc plated
	American Type 63 Half Coupler	Q235	63	1.66	Electro Zinc plated
	American Type 73 Half Coupler	Q235	73	1.78	Electro Zinc plated
