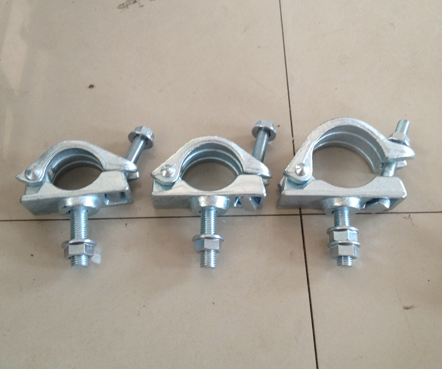

American Type Forged 48.3 63 73 89 Half Coupler

Adavantages:

1. High-Strength Material:

Manufactured from forged Q235 mild steel, providing an excellent balance of strength, ductility, and durability for heavy-duty construction loads.

2.Superior Load-Bearing Capacity:

The robust forged construction ensures high load-bearing capacity, offering exceptional safety and stability for workers and materials.

3. Simple and Quick Installation:

Designed for ease of use, allowing for rapid assembly and disassembly of scaffolding structures, significantly saving labor time and cost.

4. Extended Service Life:

The combination of high-quality material and forging process results in a long operational lifespan, even under frequent use and harsh conditions.

5. Versatile Surface Options:

Can be electro-galvanized (for good corrosion resistance) or hot-dip galvanized (for extreme corrosion resistance), making them suitable for both indoor and outdoor applications.

6. Globally Recognized Compliance:

Manufactured in accordance with European Standards (EN 74), ensuring high quality and acceptance on construction projects worldwide.

7. Universal Compatibility:

Standardized dimensions and design allow them to be used with various tube diameters (e.g., 48.3mm), making them versatile and interchangeable on different projects.

Contact Now E-Mail Telephone

Product Details

Scaffolding American Type Forged 48.3 63 73 89 Half Coupler

an old factory

focus on scaffolding coupler production since 1995.

In the dynamic environment of American construction, efficiency is key.

Our American Type Forged Couplers (Swivel, Double, Half) are designed for maximum versatility.

Available for 48.3mm, 63mm, 73mm, and 89mm tubes, their standout feature is the ability to connect different-sized tubes together seamlessly.

Application:

Imagine a project that uses 48.3mm standards and 63mm ledgers.

A standard swivel coupler can bridge this gap perfectly. This interchangeability eliminates the need for specialized, single-purpose fittings, drastically simplifying logistics and tooling on site.

Contractors can carry a smaller inventory of couplers while being prepared for a wider range of scaffolding configurations. This flexibility is crucial for adapting to complex architectural designs and unforeseen site challenges, making these couplers a smart, cost-effective choice for the US market where project demands are constantly evolving.

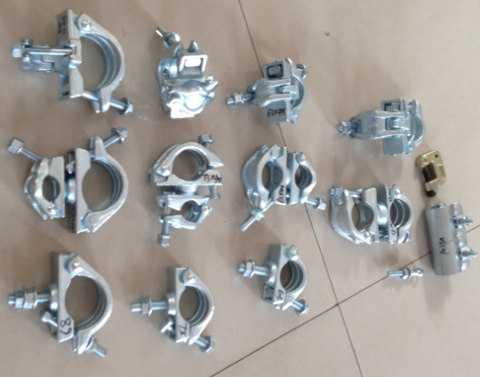

You can buy all kinds of couplers from fenghua factory.

Like Forged couplers and pressed couplers

Like British type coupler, Germany type couple, Italian type coupler in hot sale

Like 42/48/51/60/63/73/89mm American type coupler on sale.

Like Brazilian type coupler on sale.

Like Pressed Japanese type and Pressed Koran type couplers in hot sale.

Like Ringlock scaffolding related couplers are selling very well

Like Frame scaffolding related couplers are available.

Like casting wedge couplers

Features:

RFH-NO.	NAME	MATERIAL	SIZE(MM)	WEIGHT(KG)	SURFACE TREATMENT
RFH-A005	American Type Forged Swivel Coupler	Q235	48.3x48.3	1.77	Electro Zinc plated
RFH-A006	American Type Forged Double Coupler	Q235	48.3x48.3	1.61	Electro Zinc plated
RFH-A021	American Type Forged Double Coupler	Q235	48.3x73	2.45	Electro Zinc plated
RFH-A022	American Type Forged Swivel Coupler	Q235	48.3X73	2.51	Electro Zinc plated
RFH-A023	American Type Forged Double Coupler	Q235	48.3x63	2.22	Electro Zinc plated
RFH-A024	American Type Forged Swivel Coupler	Q235	48.3x63	2.38	Electro Zinc plated
RFH-A025	American Type Forged Swivel Coupler	Q235	48.3X89	2.97	Electro Zinc plated
RFH-A026	American Type Forged Double Coupler	Q235	48.3x89	2.86	Electro Zinc plated
RFH-A027	American Type 89 Half Coupler	Q235	89	2.36	Electro Zinc plated
RFH-A072	American Type 48.3 Half Coupler	Q235	48.3	0.98	Electro Zinc plated
	American Type 63 Half Coupler	Q235	63	1.66	Electro Zinc plated
	American Type 73 Half Coupler	Q235	73	1.78	Electro Zinc plated
