60 X 48.3mm German Type Swivel Coupler
Adavantages:
1. High-Strength Material:
Manufactured from forged Q235 mild steel, providing an excellent balance of strength, ductility, and durability for heavy-duty construction loads.
2.Superior Load-Bearing Capacity:
The robust forged construction ensures high load-bearing capacity, offering exceptional safety and stability for workers and materials.
3. Simple and Quick Installation:
Designed for ease of use, allowing for rapid assembly and disassembly of scaffolding structures, significantly saving labor time and cost.
4. Extended Service Life:
The combination of high-quality material and forging process results in a long operational lifespan, even under frequent use and harsh conditions.
5. Versatile Surface Options:
Can be electro-galvanized (for good corrosion resistance) or hot-dip galvanized (for extreme corrosion resistance), making them suitable for both indoor and outdoor applications.
6. Globally Recognized Compliance:
Manufactured in accordance with European Standards (EN 74), ensuring high quality and acceptance on construction projects worldwide.
7. Universal Compatibility:
Standardized dimensions and design allow them to be used with various tube diameters (e.g., 48.3mm), making them versatile and interchangeable on different projects.

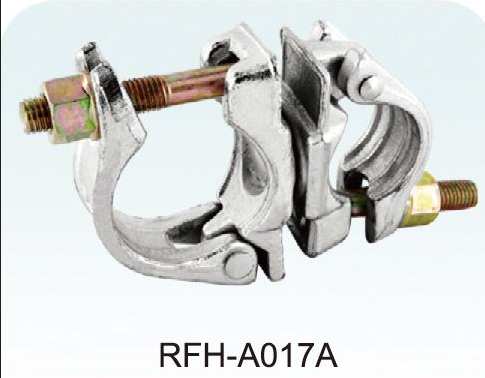

Scaffolding 60mm*48.3mm German Type Swivel Coupler
RFH-A017A
an old factory
Professional manufacturer of scaffolding coupler since 1995.
A German type swivel coupler is a special kind of scaffold connector used in construction and scaffolding.
It’s designed to give you flexibility when connecting scaffold tubes at different angles, all while keeping everything secure and stable.
This makes it perfect for various construction projects where you need precise and adaptable setups.
Swivel Functionality: The main thing that sets the German type swivel coupler apart is its ability to swivel.
This means it can connect two scaffold tubes at pretty much any angle—up to 360 degrees!
That flexibility is super important in scaffolding systems where you need angled connections.
Secure Connection:
Just like other types of scaffold couplers, the German type ensures a solid and sturdy connection between the tubes.
It locks them firmly in place, which helps keep everything safe and stable.
Construction:
These couplers are usually made from high-quality steel or other tough materials that can handle the demands of construction sites.
The swivel mechanism is built to be strong and reliable too.
Locking Mechanism:
It comes with a locking bolt or pin system that makes it easy to adjust and tighten things up,
ensuring a rock-solid connection between the tubes.
Key Features
1.Globally Recognized Compliance:
Fenghua couplers are manufactured according to European Standards (EN 74/BS1139),
guaranteeing high quality and acceptance in construction projects worldwide.
2.Minimal Maintenance:
The protective galvanized coating requires little upkeep, saving time and resources on cleaning and repainting.
3.Custom Options Available.
4.Material Q235
5.Available Types: Forged
6.Sizes:60mm*48.3mm
7.Advanced technology, fast production, guarantee delivery speed.
8.Scientific structure, more durable, better use.
You can purchase various couplers & clamps from fenghua factory.
Like Forged couplers and pressed couplers
Like British type coupler, Germany type couple, Italian type coupler in hot sale
Like 42/48/51/60/63/73/89mm American type coupler on sale.
Like Brazilian type coupler on sale.
Like Pressed Japanese type and Pressed Koran type couplers in hot sale.
Like Ringlock scaffolding related couplers are selling very well
Like Frame scaffolding related couplers are available.
Like casting wedge couplers
Specifiation :
RFH-NO. | NAME | MATERIAL | SIZE(MM) | WEIGHT(KG) | SURFACE TREATMENT |
RFH-A014 | German Type Half Swivel Coupler | Q235 | 42/48.3 | 0.61/0.73 | Hot Dip Galvanized |
RFH-A015 | German Type Swivel Coupler | Q235 | 48.3*48.3 | 1.4 | Hot Dip Galvanized |
RFH-A016 | Q235 | 48.3*48.3 | 1.2 | Hot Dip Galvanized | |
RFH-A017 | German Type Swivel Coupler | Q235 | 42*42 | 1.28 | Hot Dip Galvanized |
RFH-A017A | German Type Swivel Coupler | Q235 | 60*48.3 | 1.5 | Hot Dip Galvanized |
RFH-A018 | German Type Double Coupler | Q235 | 42*42 | 1.15 | Hot Dip Galvanized |
RFH-A018A | German Type DoubleCoupler | Q235 | 60*48.3 | 1.3 | Hot Dip Galvanized |
Almost 100 different styles of couplers are in full production.
There is surely one that suits you.
Don't hesitate, Contact me. High Quality is controlled, Reasonable Price.
