Italian Type Forged Sleeve Coupler
Adavantages:
1. High-Strength Material:
Manufactured from forged Q235 mild steel, providing an excellent balance of strength, ductility, and durability for heavy-duty construction loads.
2.Superior Load-Bearing Capacity:
The robust forged construction ensures high load-bearing capacity, offering exceptional safety and stability for workers and materials.
3. Simple and Quick Installation:
Designed for ease of use, allowing for rapid assembly and disassembly of scaffolding structures, significantly saving labor time and cost.
4. Extended Service Life:
The combination of high-quality material and forging process results in a long operational lifespan, even under frequent use and harsh conditions.
5. Versatile Surface Options:
Can be electro-galvanized (for good corrosion resistance) or hot-dip galvanized (for extreme corrosion resistance), making them suitable for both indoor and outdoor applications.
6. Globally Recognized Compliance:
Manufactured in accordance with European Standards (EN 74), ensuring high quality and acceptance on construction projects worldwide.
7. Universal Compatibility:
Standardized dimensions and design allow them to be used with various tube diameters (e.g., 48.3mm), making them versatile and interchangeable on different projects.

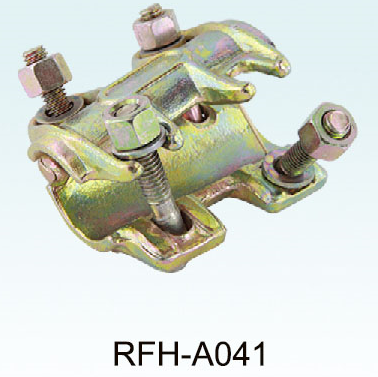

Scaffolding Italian Type Forged Sleeve Coupler
RFH-A041
an old factory
Professional manufacturer of scaffolding couplers since 1995.
A Scaffolding Forged Sleeve Coupler, often simply called a "sleeve coupler" or "pipe sleeve," is a fundamental and critical component used in tube-and-coupler scaffolding systems. Its primary purpose is to connect two scaffold tubes (pipes) end-to-end in a straight line, effectively lengthening them. The term "forged" refers to its manufacturing process, where high-strength steel is shaped under immense pressure and heat. This forging process creates a coupler with a dense, robust grain structure, resulting in exceptional strength and durability—a vital characteristic for ensuring the safety and integrity of the scaffold structure.
With nearly 30 years of expertise in manufacturing and exporting to Italy, we guarantee a product that meets the highest industry standards. This is the ideal choice for demanding construction projects.
Key Features
1.Globally Recognized Compliance:
Fenghua couplers are manufactured according to European Standards (EN 74/BS1139),
guaranteeing high quality and acceptance in construction projects worldwide.
2.Minimal Maintenance:
The protective galvanized coating requires little upkeep, saving time and resources on cleaning and repainting.
3.Custom Options Available.
4.Material Q235
5.Available Types: Forged
6.Sizes:48.3mm
7.Advanced technology, fast production, guarantee delivery speed.
8.Scientific structure, more durable, better use.
You can purchase various couplers & clamps from fenghua factory.
Like Forged couplers and pressed couplers
Like British type coupler, Germany type couple, Italian type coupler in hot sale
Like 42/48/51/60/63/73/89mm American type coupler on sale.
Like Brazilian type coupler on sale.
Like Pressed Japanese type and Pressed Koran type couplers in hot sale.
Like Ringlock scaffolding related couplers are selling very well
Like Frame scaffolding related couplers are available.
Like casting wedge couplers
Specifiation :
RFH-NO. | NAME | MATERIAL | SIZE(MM) | WEIGHT(KG) | SURFACE TREATMENT |
RFH-A033 | Italian Type Forged Swivel Coupler | Q235 | 48.3 | 1.7 | Color Zinc Galvanized |
RFH-A034A | Italian Type Forged Double Coupler | Q235 | 48.3 | 1.3 | Color Zinc Galvanized |
RFH-A034B | Q235 | 48.3 | 1.8 | Color Zinc Galvanized | |
RFH-A035 | Q235 | 48.3 | 1.35 | Color Zinc Galvanized | |
RFH-A035C | Q235 | 48.3 | 1.74 | Color Zinc Galvanized | |
RFH-A036 | Q235 | 48.3 | 0.86 | Self color/uncoated | |
RFH-A036A | Italian Type Half Coupler | Q235 | 48.3 | 0.65 | Self color/uncoated |
RFH-A041 | Italian Type Forged Sleeve Coupler | Q235 | 48.3 | 1.65 | Color Zinc Galvanized |
Almost 100 different styles of couplers are in full production.
There is surely one that suits you.
Don't hesitate, Contact me. High Quality is controlled, Reasonable Price.
