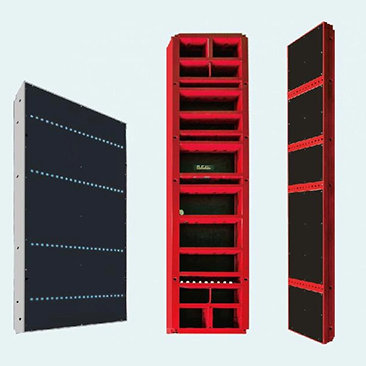

FW00AA Heavy Duty Multi Shutter Panel

1. What Is the FW00AA Heavy Duty Multi Shutter Panel?

The FW00AA Heavy Duty Multi Shutter Panel is a steel formwork component used to create a controlled      forming surface for cast-in-place concrete construction. Several shutter panels can be arranged and connected to form a larger      concrete wall or structural forming area.

The idea is quite practical. Instead of making one very large formwork component for every possible project,      contractors can use individual panels and arrange them according to the required dimensions and construction layout.

This type of system can be useful for residential buildings, commercial construction, bridges, infrastructure projects,      industrial plants, and other concrete structures where reusable formwork is needed.

The “heavy duty” description refers to the intended construction category and robust steel structure.      It does not mean that the panel has an unlimited load capacity. The actual allowable load depends on the specific design,      steel material, panel dimensions, connection method, support arrangement, concrete pressure, placement rate, and project conditions.

I always make this distinction because formwork is a system, not just a panel.      Even a strong steel shutter panel needs the right bracing, supports, connectors, installation procedure, and engineering calculations.

OSHA requires cast-in-place concrete formwork and shoring to be designed, fabricated, erected, supported, braced, and maintained      so that they can support reasonably anticipated vertical and lateral loads without failure.              OSHA 29 CFR 1926.703

       Source: Practical summary based on OSHA requirements for cast-in-place concrete formwork and shoring.        The table is not a substitute for project-specific engineering calculations.

2. How Does the FW00AA Multi Shutter Panel Work?

The working principle is quite easy to understand. We use steel shutter panels to create the required concrete forming boundary.      The panels are connected, aligned, supported, and braced before concrete is placed.

Fresh concrete then fills the space inside the formwork. While the concrete is still fresh,      the formwork controls its shape. The shutter surface creates the contact face, while the frame and support system help the complete arrangement remain stable.

Step 1: Start With the Project Drawing

Before selecting the panel, I recommend checking the actual project drawing.      Wall length, height, thickness, openings, corners, construction joints, and other structural details all affect the formwork arrangement.

This is especially important for a multi-shutter system because the number and arrangement of panels depend on the actual forming area.

Step 2: Prepare the Formwork Components

Workers should inspect the shutter panels, connectors, supports, braces, and other components before installation.      Damaged or deformed parts should not be used simply because they are available.

Step 3: Assemble the Panels

The FW00AA panels are arranged according to the approved construction layout.      Individual panels are connected to form the required forming area.

Step 4: Align and Brace the System

The assembled formwork is positioned and checked for alignment.      Supports and braces are installed according to the project design.

This stage deserves attention. When formwork is properly aligned before concrete placement,      workers have a much better chance of achieving the required wall geometry without unnecessary correction work later.

Step 5: Place Concrete

Concrete is placed according to the approved construction method.      The pressure acting on formwork is influenced by concrete properties, placement speed, temperature, wall dimensions,      and other conditions.

For this reason, I would never recommend using a generic load figure without checking the actual project.

Step 6: Remove and Prepare the Panels for Reuse

Once the concrete has reached the required condition and the approved construction procedure allows form removal,      the panels can be removed. They should then be cleaned, inspected, and stored correctly before their next use.

OSHA specifies that forms and shores should not be removed until the concrete has gained sufficient strength to support its own weight      and imposed loads.              OSHA 29 CFR 1926.703

3. Main Features of the FW00AA Heavy Duty Multi Shutter Panel

When we manufacture a Steel Formwork Panel, I try to keep the discussion practical.      Contractors need products that work in real construction conditions, not just products with impressive words in a brochure.

Heavy Duty Steel Structure

The FW00AA is designed as a Heavy Duty Steel Shutter Panel for demanding concrete formwork applications.      Steel provides a strong and durable base for a reusable formwork component.

Multi-Panel Arrangement

One of the main benefits is the ability to use multiple panels together.      This makes it easier to create larger forming areas without depending on one oversized panel.

Reusable Design

Steel formwork is intended for repeated construction use.      With suitable handling, cleaning, inspection, and storage, panels can be prepared for subsequent construction cycles.

Flexible Installation

Different projects have different dimensions. A multi-shutter arrangement gives contractors more freedom to organize the forming area      according to the actual project layout.

Suitable for Customized Projects

We can discuss customized requirements based on customer drawings, dimensions, construction methods, and project needs.      This can be especially useful when a standard catalog configuration does not match the site.

Integration With Other Formwork Products

The shutter panel can be considered together with supports, braces, connectors, and other construction accessories.      Looking at the complete system usually gives a better result than selecting each component separately.

       Source: General engineering comparison based on common properties of steel, aluminum alloy, and wood-based formwork materials.        Actual performance depends on material specifications, structural design, dimensions, connections, support conditions, and construction practices.

4. Technical Advantages for Concrete Construction

In my view, the biggest advantage of the FW00AA Heavy Duty Multi Shutter Panel is not one single feature.      It is the combination of strength, reuse, modular arrangement, and the ability to adapt the system to different construction requirements.

1. Strong and Durable Material

Steel is widely used in construction equipment because it provides a strong structural material.      For formwork, this can be useful when the equipment is expected to go through repeated handling and construction cycles.

2. Repeated Construction Cycles

If a contractor is building several similar structures, reusable steel panels can be moved from one forming area to another.      This can make the formwork part of a planned construction workflow.

3. Larger Forming Areas

Multi shutter panels can be combined to create larger forming surfaces.      This gives contractors more flexibility when working with long walls or repeated structural sections.

4. Less Dependence on Temporary Site Fabrication

A planned modular formwork system can reduce the need for workers to repeatedly cut and modify temporary materials on site.      The actual amount of site modification depends on the project design and the selected configuration.

5. Easier Project Planning

Reusable panels can be included in the construction schedule.      Contractors can plan when panels are installed, removed, cleaned, moved, and reused.

6. Better Fit for Customized Construction

Not every project follows standard building dimensions.      For customers with special wall sizes or construction methods, we can discuss a customized solution based on drawings.

I would also point out something that is sometimes missed in purchasing discussions:      the panel should be evaluated together with transportation and handling requirements.      Steel formwork can be relatively heavy compared with some alternative materials, so lifting and site handling need to be included in the project plan.

5. Where Can FW00AA Heavy Duty Multi Shutter Panels Be Used?

We designed our formwork products for a broad range of construction applications.      However, the exact use of the FW00AA should always be confirmed against project drawings and engineering requirements.

Residential Buildings

Residential construction often includes repeated wall layouts.      Reusable steel formwork can be useful when contractors need to repeat similar forming operations across several floors or buildings.

Commercial Construction

Commercial buildings may include larger concrete wall sections and different structural layouts.      A multi-panel formwork arrangement can provide flexibility when the forming area changes from one section to another.

Bridge Construction

Bridge projects involve many concrete structures and often require carefully planned temporary works.      Steel formwork can be considered where the panel configuration and support system meet the project requirements.

Infrastructure Projects

Infrastructure projects may include retaining structures, foundations, concrete walls, and other cast-in-place structures.      Reusable steel formwork can be useful where similar forming operations are repeated.

Industrial Plants

Industrial facilities often have foundations, equipment bases, concrete walls, trenches, and structural components.      Customized formwork can be useful when these structures do not follow typical residential dimensions.

Large Concrete Wall Projects

A multi Shutter Panel System is particularly useful to consider when the project contains long wall sections.      Multiple panels can be arranged to create the required forming length.

       Source: General application guidance based on common uses of modular steel formwork in cast-in-place concrete construction.        Final application suitability depends on project-specific engineering and local requirements.

6. How We Manufacture the FW00AA Steel Shutter Panel

Manufacturing quality starts long before the finished panel leaves our factory.      When several steel panels are connected on a construction site, small dimensional errors can become obvious.      That is why we pay attention to fabrication accuracy from the beginning.

Steel Material Preparation

Production begins with material preparation according to the approved product and project requirements.      Steel components are processed according to production drawings.

Cutting and Processing

Steel members are cut and processed to the required dimensions.      Correct preparation helps the components fit together during frame assembly.

Frame Assembly

The panel frame is assembled according to the approved drawing.      Important dimensions and connection locations are checked before welding.

Welding

Welding is an important part of steel formwork manufacturing.      Poor welding can affect both structural integrity and dimensional accuracy, so welding quality needs to be controlled during production.

Our factory has automated welding lines and professional manufacturing workshops.      We operate under ISO9001 quality management procedures and apply manufacturing requirements relevant to the products being produced.

Surface Treatment

After fabrication and inspection, suitable surface treatment can be applied according to product specifications and customer requirements.      Proper surface preparation also helps make the panel easier to maintain during its service life.

Inspection

Before shipment, finished panels are checked against the agreed production requirements.      Inspection can include dimensions, welding condition, appearance, connection areas, and other specified points.

We also understand that international customers need more than a finished product.      They need reliable packing and a delivery plan that works with their project schedule.

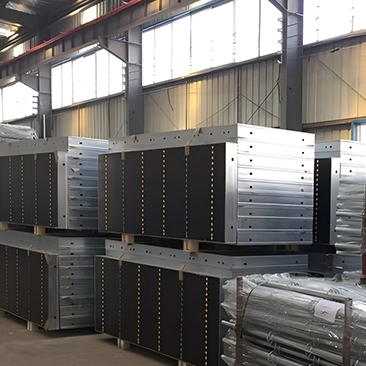

Export Packaging

Depending on the order, steel formwork products can be packed using steel frames, bundles, or export-standard packaging.      The final method is selected according to the product characteristics and transportation requirements.

Products can be transported by sea, rail, or other international logistics methods depending on destination and customer requirements.

7. Why Buy FW00AA Heavy Duty Multi Shutter Panel From Rizhao Fenghua?

When customers ask me why they should buy from us, I do not think the best answer is simply “we have a factory.”      Many companies can say that.

The more useful question is whether the supplier can understand the product, manufacture it consistently,      handle customization, inspect the finished goods, and deliver them properly.

Established in 1953

Rizhao Fenghua Scaffolding Co., Ltd. was established in 1953.      We have developed long-term experience in building formwork, scaffolding systems, and construction accessories.

Approximately 80,000 m² Factory

Our manufacturing facility in Rizhao, Shandong, covers approximately 80,000 m².      The factory includes professional workshops, production equipment, and automated welding lines.

Formwork and Scaffolding Manufacturing

Our product range covers steel formwork, Aluminum Alloy Formwork, adjustable supports, ring lock scaffolding, Cuplock Scaffolding,      Frame Scaffolding, and various construction accessories.

This broader product range allows us to understand how different construction components need to work together.

Customization Based on Drawings

We support customized solutions according to customer drawings and project requirements.      For an FW00AA Heavy Duty Multi Shutter Panel, the project drawing is particularly useful because it helps us understand      the required dimensions, arrangement, connection requirements, and intended application.

Quality Management

Our manufacturing processes operate under ISO9001 quality management procedures.      Our product portfolio and manufacturing capabilities also involve international requirements such as EN1090, EN74, and CE where applicable.

I want to make one technical point clear here. EN74 relates primarily to couplers, spigot pins, and baseplates used in falsework and scaffolds.      It should not be presented as a universal certification for every steel Formwork Shutter Panel.

The British Standards Institution identifies EN 74-1 as covering couplers, spigot pins, and baseplates for use in falsework and scaffolds.              BSI information for EN 74-1

126 Export Markets

Our products are exported to 126 countries and regions.      International supply means we need to think about product quality, packaging, documentation, logistics, and communication together.

30–60 Day Standard Production Lead Time

Our standard production lead time is usually 30–60 days, depending on order quantity and customization requirements.      The final production schedule is confirmed according to the order and manufacturing plan.

Flexible Payment and Shipping

We support payment methods including T/T and L/C.      For transportation, products can be shipped by sea, rail, or other suitable international logistics methods.

For me, the goal is straightforward: make the purchasing process easier for the contractor.      If you have a drawing, send it to us. If you only have basic dimensions, send those first.      We can start by understanding what you actually need instead of automatically recommending a standard product.

8. FW00AA Heavy Duty Multi Shutter Panel FAQ

What is the FW00AA Heavy Duty Multi Shutter Panel used for?

The FW00AA is designed for use as part of a Steel Concrete Formwork System.      It can be considered for concrete walls and other suitable cast-in-place construction applications.

What does “multi shutter panel” mean?

It refers to a formwork arrangement in which multiple shutter panels can be connected or combined to create a larger forming area.      This approach provides more flexibility than relying on one fixed panel for every project.

Is FW00AA reusable?

Yes. The steel formwork design is intended for repeated use when the panels are properly installed, cleaned, inspected, handled,      and stored. Actual service life depends on project conditions and maintenance.

Can FW00AA be customized?

We can discuss customized requirements according to customer drawings, dimensions, connection details, construction methods,      and other project requirements.

Can it be used for Concrete Wall Formwork?

Yes, it can be considered for suitable concrete wall forming applications.      The complete system needs to be checked according to wall dimensions, concrete pressure, supports, braces, connections, and project engineering requirements.

What information should I send for a quotation?

I recommend sending the project drawings if available.      Useful information includes wall height, wall thickness, wall length, panel quantity, openings, connection requirements,      project location, and expected delivery schedule.

If you do not have a complete drawing yet, basic dimensions, sketches, photos, and application details can still help us understand the requirement.

What is the production lead time?

Our standard production lead time is generally 30–60 days.      The exact time depends on order quantity, customization requirements, raw material planning, and current production conditions.

How are the panels packed?

Depending on the order and transportation method, we use steel frames, bundles, or export-standard packaging.      The packaging arrangement is selected to make the products easier to handle and protect them during international transportation.

Can I purchase scaffolding products together with the formwork?

Yes. Rizhao Fenghua manufactures and supplies steel formwork, aluminum alloy formwork, ring lock scaffolding, cuplock scaffolding,      frame scaffolding, adjustable supports, and construction accessories.      Combined supply can be discussed according to the project requirements.

Does heavy duty mean the panel has a fixed universal load capacity?

No. There is no universal load value that can safely be applied to every installation.      Actual capacity depends on the panel design, dimensions, material, connections, support spacing, concrete conditions, and construction method.      Project-specific calculations should be used where required.

What should I check before concrete placement?

The complete formwork should be checked for correct assembly, alignment, connections, supports, bracing, and other project-specific requirements.      OSHA provides requirements covering the design, erection, support, bracing, inspection, and removal of cast-in-place concrete formwork.              OSHA 29 CFR 1926.703

Does EN74 certify the entire FW00AA panel?

EN74 should not be described as a blanket certification for the entire FW00AA shutter panel.      The standard addresses specific components used in falsework and scaffolds, such as couplers, spigot pins, and baseplates.      Applicable standards should be evaluated according to the function of each product and the project requirements.

What Should I Check Before Ordering FW00AA?

If I were buying a Heavy Duty Multi Shutter Panel for an overseas construction project,      I would not compare suppliers only by unit price.

I would ask for the technical drawing first. Then I would check the panel dimensions, connection arrangement,      steel specifications, support requirements, surface treatment, inspection procedure, packing method, and production schedule.

• Confirm the required wall dimensions and forming area.

• Confirm how multiple panels will be connected.

• Check the required supports and bracing arrangement.

• Review the concrete placement conditions.

• Confirm whether customization is required.

• Ask how finished panels are inspected.

• Confirm the export packaging method.

• Confirm production lead time before placing the order.

• Check which standards and certifications actually apply to the supplied components.

• Confirm shipping method and destination requirements.

These questions may sound basic, but they can prevent many problems later.      A formwork panel is not an isolated commodity. It becomes useful only when it fits the construction system around it.

Conclusion: A Practical Heavy Duty Steel Formwork Solution

The FW00AA Heavy Duty Multi Shutter Panel is designed for contractors who need a durable and reusable steel formwork      component that can be arranged into larger forming areas.

Its value comes from the combination of steel construction, multi-panel flexibility, repeated-use potential,      and the possibility of customization according to actual project requirements.

For residential buildings, commercial projects, bridges, infrastructure, industrial plants, and concrete wall construction,      the right multi-shutter arrangement can make repeated forming work easier to organize.

At Rizhao Fenghua Scaffolding Co., Ltd., we manufacture formwork and scaffolding products from our approximately 80,000 m² factory in Rizhao, Shandong, China.      Established in 1953, we have developed long-term experience in manufacturing building formwork, scaffolding systems, and construction accessories.

We provide steel formwork, aluminum alloy formwork, adjustable supports, ring lock scaffolding, cuplock scaffolding, frame scaffolding,      and customized construction solutions. Our products are exported to 126 countries and regions.

We also understand that international customers need reliable production and delivery.      Standard production lead time is generally 30–60 days depending on order quantity and customization.      Products can be packed in steel frames, bundles, or export-standard packaging and shipped by sea, rail, or other suitable logistics methods.

If you are sourcing an FW00AA Heavy Duty Multi Shutter Panel,      heavy duty steel formwork panel, multi shutter panel for concrete walls,      or reusable Steel Formwork System, send us your drawings or project details.

I prefer to review the real application before recommending a configuration.      Once we understand the project, we can discuss panel arrangement, customization, supporting components, production schedule, packaging, and delivery.

References and Standards

1. U.S. Occupational Safety and Health Administration (OSHA),        29 CFR 1926.703 – Requirements for cast-in-place concrete.                  OSHA Official Standard

2. U.S. Occupational Safety and Health Administration (OSHA),        29 CFR 1926.700 – Scope, application, and definitions.                  OSHA Official Standard

3. British Standards Institution (BSI),        BS EN 74-1 – Couplers, spigot pins and baseplates for use in falsework and scaffolds.                  BSI Standards Information

       Important: This product page is intended for product information and purchasing reference.        It does not replace project-specific structural calculations, engineering drawings, installation instructions,        risk assessments, or applicable local safety regulations. Actual formwork capacity, support arrangement,        and construction method must be confirmed for the specific project.
