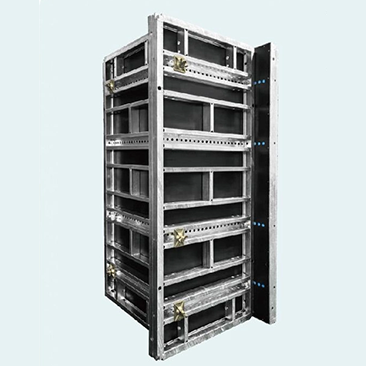

Heavy Duty Multi Shutter Panel

1. What Is a Heavy Duty Multi Shutter Panel?

A Heavy Duty Multi Shutter Panel is a Steel Formwork Panel designed to be used as part of a larger concrete forming arrangement.      The basic job is simple: the shutter surface creates the required concrete shape while the surrounding frame, connectors, supports, and braces help keep the system in position.

The term “multi shutter” refers to the way several shutter panels can be arranged and connected to create a larger forming area.      This approach is useful when a project includes long walls, repeated wall sections, large concrete structures, or different panel layouts.

The word “heavy duty” does not mean that every panel can automatically handle any load.      Actual capacity depends on the panel design, steel material, dimensions, connection method, support spacing, concrete pressure, placement speed,      temperature, and many other project conditions.

This point is important. I would never recommend choosing a formwork panel only because it looks strong in a product photograph.      The complete formwork arrangement needs to be suitable for the actual construction conditions.

In cast-in-place concrete construction, formwork and shoring need to be designed and maintained to support reasonably anticipated vertical      and lateral loads without failure. OSHA's requirements for cast-in-place concrete specifically address formwork, shoring, inspection, and removal.      OSHA 29 CFR 1926.703

       Source: OSHA, 29 CFR 1926.703, requirements for cast-in-place concrete formwork and shoring.        The table is a practical summary and does not replace project-specific engineering calculations.

2. How Does the Heavy Duty Multi Shutter Panel Work?

The working principle is easier to understand than it may sound.      We assemble individual steel shutter panels into the required arrangement, connect them properly, position the complete formwork,      and add suitable supports and braces. Concrete is then placed inside the formed area.

While the concrete is fresh, the formwork controls its shape.      The steel panels provide the forming face, while the complete support system helps resist the forces generated during concrete placement.

Step 1: Review the Construction Drawing

I always recommend starting with the drawing instead of the panel.      We need to know the wall length, wall height, thickness, openings, corners, construction joints, and other important details.

If the project contains many repeated wall sections, a multi-panel arrangement can be planned around the repeated dimensions.      This can make the construction sequence easier to organize.

Step 2: Prepare the Panels and Accessories

Before installation, workers should check the panels, connectors, supports, braces, and other required components.      Damaged or unsuitable components should not simply be put into service because they happen to be available on site.

Step 3: Connect Multiple Panels

Individual shutter panels are connected according to the approved system layout.      The goal is to create a continuous and properly aligned forming surface.

Step 4: Position and Brace the Formwork

Once assembled, the formwork is positioned according to the project dimensions.      Alignment and support are checked before concrete placement.

This is one of the stages where I tell customers not to rush.      A small alignment problem before concrete placement is usually much easier to fix than a problem discovered after the concrete has been poured.

Step 5: Place the Concrete

Concrete is placed according to the approved construction method.      Concrete pressure is affected by factors such as placement rate, concrete temperature, mix properties, and wall geometry.

Therefore, a panel's actual working conditions should always be evaluated as part of the complete Formwork System rather than as an isolated product.

Step 6: Remove and Prepare for Reuse

After the concrete has reached the required condition and the project procedure allows form removal,      the panels can be removed, cleaned, inspected, and prepared for another construction cycle.

OSHA states that forms and shores should not be removed until the concrete has gained sufficient strength to support its own weight      and imposed loads.      OSHA 29 CFR 1926.703

3. Main Features of Our Heavy Duty Multi Shutter Panel

When we develop or manufacture a steel shutter panel, I focus on the things that workers and contractors will actually deal with on site.      A formwork product can have a very impressive specification sheet, but if it is difficult to assemble or does not match the project layout,      it becomes a headache.

Strong Steel Construction

Steel provides a solid base for reusable construction formwork.      The frame and shutter surface are manufactured according to the approved design so the finished component can perform its intended forming function.

Multi-Panel Configuration

The multi-panel approach allows individual panels to be combined into larger formwork arrangements.      This is especially practical for projects where wall lengths or structural sections are larger than a single panel.

Reusable Construction Equipment

Steel formwork is generally selected when repeated use is important.      With proper cleaning, inspection, storage, handling, and maintenance, panels can be prepared for subsequent construction cycles.

Flexible Installation

Different project layouts may require different combinations of panels and accessories.      A modular multi-shutter arrangement can provide more flexibility than relying on one fixed panel configuration.

Project-Based Customization

We can discuss customized dimensions and configurations based on customer drawings and project requirements.      This is useful when the standard panel arrangement does not match the customer's construction method.

Suitable for Repeated Construction

When a contractor is building many similar walls or structural sections, reusable formwork can become part of the project's normal production process.      Instead of treating formwork as disposable material, the contractor can plan its use across multiple construction cycles.

       Source: General construction industry comparison based on common material characteristics.        Actual formwork performance depends on design, dimensions, material properties, connections, support conditions, and construction practice.        The comparison is provided for purchasing guidance rather than as certified performance data.

4. Technical Advantages of Multi Shutter Steel Formwork

There is a reason I still consider steel formwork a practical choice for demanding construction work.      It gives the project a strong and reusable forming component, but the real advantage appears when the panels are used as part of a properly planned system.

Consistent Forming Surface

A well-made steel shutter panel provides a stable forming surface for concrete.      When several panels are correctly connected and aligned, they can create a continuous forming arrangement for larger wall sections.

Good Structural Durability

Steel is a durable construction material.      Compared with temporary materials that may be discarded after limited use, properly maintained steel formwork can be used through multiple construction cycles.

Efficient Repetition

Repeated construction is where reusable formwork can really show its value.      If a project has similar walls on many floors or across several buildings, the same formwork components may be used again and again.

Flexible Panel Arrangement

A multi-shutter system allows the contractor to combine panels according to the required forming area.      This can be useful when different sections of the same project have different dimensions.

Reduced Dependence on Site Fabrication

With a planned modular system, more of the work can be completed using manufactured components rather than repeatedly cutting and modifying      temporary materials on site.

Better Project Planning

A reusable formwork system can be included in the construction schedule from the beginning.      Contractors can plan panel movement, cleaning, storage, lifting, and reuse instead of dealing with formwork as an unplanned task.

I would still stress one point: no formwork product should be described as “safe” simply because it is made of steel.      Safety depends on correct engineering, installation, inspection, bracing, loading conditions, and worker practices.

OSHA requires employees to be protected from falling objects when working on concrete forms and related equipment,      and it also specifies inspection requirements for formwork and shoring.      OSHA 29 CFR 1926.703

5. Where Can Heavy Duty Multi Shutter Panels Be Used?

Our steel formwork products are used for a wide range of construction applications.      The correct configuration depends on the actual project design, structural requirements, construction sequence, and applicable local regulations.

Residential Construction

Residential developments often contain repeated wall layouts.      A reusable Steel Formwork System can help contractors organize repeated forming operations across floors or buildings.

Commercial Buildings

Commercial construction can involve larger wall sections, different floor layouts, and more complex structural arrangements.      Multi shutter panels can be combined to suit suitable concrete forming applications.

Bridge Construction

Bridge projects include many concrete structures that require carefully planned temporary works.      Steel formwork can be considered where its dimensions, support system, and structural design meet the project requirements.

Infrastructure Projects

Infrastructure construction may include retaining structures, concrete walls, foundations, and other structural elements.      Reusable steel panels can be useful where repeated forming work is involved.

Industrial Plants

Industrial facilities often contain concrete foundations, equipment bases, walls, trenches, and structural components.      Customized shutter panels can be helpful when the project does not follow a simple residential layout.

Large Concrete Wall Projects

For long concrete walls, a multi-panel arrangement can provide a practical way to create the required forming length.      Panel dimensions and support spacing should be determined according to the project's engineering requirements.

       Source: Application guidance based on common use of steel and modular formwork in cast-in-place concrete construction.        Final suitability must be determined from project-specific engineering and construction requirements.

6. How We Manufacture Heavy Duty Steel Shutter Panels

From the outside, a steel shutter panel may look like a fairly simple product.      From the manufacturing side, however, several steps need to work together.      If the frame is not accurate, if welding causes too much distortion, or if the connection points are not positioned correctly,      the problem can appear later when workers assemble the formwork on site.

Material Preparation

We begin with material preparation according to the approved production requirements.      Steel components are checked and processed according to the product drawings.

Cutting and Component Processing

Steel members are cut and prepared for assembly.      Dimensional control is important because several components eventually need to fit together into a complete panel.

Frame Assembly

The main frame is assembled according to the production drawing.      Connection locations and key dimensions are checked before the welding process.

Automated Welding

Our factory has automated welding lines and professional production workshops.      Welding quality is important because it directly affects the integrity and dimensional stability of the fabricated steel structure.

We apply quality management procedures associated with ISO9001 and manufacturing requirements relevant to our products.      Where applicable, our manufacturing capabilities also address international requirements such as EN1090.

Surface Treatment

Suitable surface treatment can be applied according to the product specification and customer's requirements.      Proper surface preparation and finishing are useful for protecting the steel and keeping the product practical during storage and use.

Final Inspection

Before packing, finished panels are checked against the production requirements.      We pay attention to dimensions, welding condition, panel appearance, connection areas, and other specified inspection points.

Our approach is fairly simple: manufacture according to the approved drawing, check the important points during production,      and inspect the finished product before it leaves the factory.

Packaging for International Transportation

Formwork Panels are usually transported internationally in steel frames, bundles, or other export-standard packaging depending on the product and order.      The purpose is to keep the products organized and reduce unnecessary movement during transportation.

We can arrange shipment by sea, rail, or other suitable international logistics methods according to the destination and customer's requirements.

7. Why Choose Rizhao Fenghua for Heavy Duty Multi Shutter Panels?

If you are buying construction formwork for an overseas project, I think the supplier's manufacturing ability is just as important as the product itself.      A formwork order may involve drawings, customization, production, inspection, packing, shipping, and installation questions.

That is why we position Rizhao Fenghua as a manufacturer rather than simply a product seller.

Established Manufacturing Experience

Rizhao Fenghua Scaffolding Co., Ltd. was established in 1953.      Over the years, we have developed experience in building formwork, scaffolding systems, and construction accessories.

Large Manufacturing Facility

Our factory covers approximately 80,000 m² and includes professional workshops, production equipment, and automated welding lines.      This gives us a practical manufacturing base for both standard products and larger orders.

Complete Product Range

We manufacture and supply steel formwork, aluminum alloy formwork, adjustable supports, ring lock scaffolding, cuplock scaffolding,      frame scaffolding, and related construction accessories.

This wider product range is useful when customers need several types of construction equipment from one manufacturing source.

Customization From Customer Drawings

We understand that many construction projects are not exactly the same.      Customers may have their own panel dimensions, wall layouts, connection requirements, or construction methods.

We can review customer drawings and discuss a suitable product configuration before production.      For customized heavy duty steel shutter panels, this step is especially important.

Quality Management

Our production is managed under ISO9001 quality management procedures.      Depending on the product and applicable requirements, our international product portfolio also involves standards and certifications such as EN74, EN1090, and CE.

One important clarification is that these standards do not mean every standard applies to every component in the same way.      For example, EN74 concerns couplers, spigot pins, and baseplates used in falsework and scaffolds.      It should not be presented as a universal certification for every steel shutter panel.

The British Standards Institution describes EN 74-1 as covering couplers, spigot pins, and baseplates for use in falsework and scaffolds.      BSI product information for EN 74-1

Global Export Experience

Our products are exported to 126 countries and regions.      International supply requires more than manufacturing the product.      Packaging, documentation, logistics, communication, and delivery planning all need attention.

Practical Delivery Support

Our standard production lead time is usually around 30–60 days, depending on order quantity and customization requirements.      We support payment methods including T/T and L/C, with final commercial terms confirmed in the contract.

For export orders, we can use steel frames, bundles, or suitable export packaging.      Sea freight, rail transportation, and other logistics methods can be considered according to the destination.

In short, when a customer chooses us, we want the relationship to be about more than buying a panel.      We want to understand the project, manufacture according to the agreed requirements, and help make the international supply process straightforward.

8. Heavy Duty Multi Shutter Panel FAQ

What is a Heavy Duty Multi Shutter Panel?

It is a steel shutter panel designed for use in a multi-panel concrete formwork arrangement.      Multiple panels can be connected to create larger forming areas for suitable concrete construction applications.

What is the difference between a multi shutter panel and a standard shutter panel?

The main difference is the way the panels are intended to work within the overall formwork arrangement.      A multi shutter configuration allows several panels to be connected or combined to meet larger or changing forming requirements.

Is the Heavy Duty Multi Shutter Panel reusable?

Yes. Steel formwork is intended for repeated use when it is correctly installed, cleaned, inspected, stored, and handled.      Actual service life depends on design, material, usage frequency, working conditions, and maintenance.

Can you customize the panel according to drawings?

Yes. We can discuss customized panel dimensions, configurations, connection details, and other requirements according to customer drawings and project needs.

What projects are suitable for multi shutter panels?

They can be considered for residential buildings, commercial buildings, bridges, infrastructure projects, industrial plants, concrete walls,      and other suitable cast-in-place concrete applications.

What information do you need for a quotation?

We normally recommend providing project drawings, wall dimensions, wall height and thickness, estimated quantity, panel layout,      connection requirements, project location, and required delivery schedule.

If detailed drawings are not available yet, basic dimensions, photos, sketches, and application information can still help us understand the project.

What is your normal production lead time?

Our standard production lead time is usually 30–60 days.      The final schedule depends on order quantity, customization requirements, raw material planning, and production conditions.

How do you package steel formwork for export?

We use steel frames, bundles, or export-standard packaging depending on the product and transportation requirements.      The packing method is discussed according to the order so that the panels can be handled and transported efficiently.

Can I order other construction products together with the shutter panels?

Yes. Rizhao Fenghua provides a wider range of building formwork, scaffolding systems, adjustable supports, and construction accessories.      Customers can discuss combined orders according to project requirements.

Does heavy duty mean the panel has unlimited load capacity?

No. “Heavy duty” describes the intended product category and construction application; it does not mean unlimited load capacity.      Actual allowable loads must be determined from the specific panel design, dimensions, material, connections, support arrangement, concrete conditions,      and project engineering calculations.

What safety checks are important before concrete placement?

The formwork should be checked for correct assembly, alignment, connections, supports, bracing, and other project-specific requirements.      OSHA requires cast-in-place concrete formwork and shoring to be designed and maintained for reasonably anticipated loads and includes inspection requirements.      OSHA 29 CFR 1926.703

What Should You Check Before Buying a Heavy Duty Multi Shutter Panel?

I recommend asking a few simple questions before placing an order.

• Does the panel configuration match the actual wall or structural dimensions?

• Are the connection details compatible with the rest of the formwork system?

• How will the panels be supported and braced during concrete placement?

• Is the panel suitable for the project's expected construction cycle?

• Can the supplier manufacture according to your drawings?

• What quality inspection procedures are used before shipment?

• How will the panels be packed for international transportation?

• What is the realistic production lead time?

• Can the supplier provide the required technical and commercial documents?

I would also recommend asking for actual technical drawings rather than relying only on photographs.      A good drawing tells you much more about a formwork product: dimensions, connection points, reinforcement, adjustment areas,      and the relationship between different components.

Conclusion: A Practical Choice for Reusable Concrete Formwork

A Heavy Duty Multi Shutter Panel is designed for contractors who need a strong, reusable, and flexible approach to concrete forming.      Its value is not simply in the steel itself. The real benefit comes from using several well-made panels as part of a properly planned formwork system.

For residential buildings, commercial construction, bridges, infrastructure, industrial plants, and large concrete wall projects,      a multi-panel steel formwork arrangement can provide a practical way to organize repeated forming work.

At Rizhao Fenghua Scaffolding Co., Ltd., we manufacture steel formwork and other construction products at our approximately 80,000 m² factory in Rizhao, Shandong.      With a manufacturing history dating back to 1953, automated welding lines, ISO9001 quality management, international export experience,      and customized production capabilities, we work with customers who need both standard and project-specific solutions.

Our products are exported to 126 countries and regions, and we support international orders with professional packaging,      flexible logistics options, and production lead times generally ranging from 30 to 60 days depending on the order.

If you are currently sourcing a Heavy Duty Multi Shutter Panel, heavy duty steel formwork panel,      multi shutter panel for concrete walls, or reusable steel formwork system,      send us your drawings, dimensions, quantity, and project requirements.

I would rather review the actual project with you than simply recommend a standard panel without knowing how you plan to use it.      Once we understand the application, we can discuss the suitable panel arrangement, accessories, customization requirements, production schedule, and shipping method.

References and Standards

1. U.S. Occupational Safety and Health Administration (OSHA),        29 CFR 1926.703 – Requirements for cast-in-place concrete.                  https://www.osha.gov/laws-regs/regulations/standardnumber/1926/1926.703

2. U.S. Occupational Safety and Health Administration (OSHA),        29 CFR 1926.700 – Scope, application, and definitions applicable to this subpart.                  https://www.osha.gov/laws-regs/regulations/standardnumber/1926/1926.700

3. British Standards Institution (BSI),        BS EN 74-1 – Couplers, spigot pins and baseplates for use in falsework and scaffolds.                  BSI Standards Information

       Important: The technical information in this article is intended for product and purchasing reference.        It does not replace project-specific structural calculations, engineering drawings, installation instructions,        risk assessments, or applicable local safety regulations. Actual formwork capacity and configuration must be confirmed for the specific project.
