Aluminium Alloy Formwork

1. What Is Aluminium Alloy Formwork?

Aluminium Alloy Formwork is a reusable formwork system used to shape fresh concrete before the concrete becomes strong enough to hold its own shape. In simple words, the formwork works like a temporary mold. We assemble the panels according to the required building dimensions, place the concrete inside the formed space, and remove the panels after the concrete reaches the required condition.

Compared with traditional timber formwork, an aluminium system is designed around reusable metal panels and connecting components. Instead of making a new mold from scratch for every concrete section, contractors can move and reuse the panels through different construction cycles.

This makes aluminium formwork particularly interesting for projects with repeated layouts. For example, a residential building may have many floors with similar apartment layouts. If the wall lengths, slab arrangements, openings, and other dimensions are repeated, the same formwork components can be used from one floor to another.

I would not describe aluminium formwork as a solution that automatically fits every construction project. That would be too simple. Projects with unusual shapes, one-time structures, very heavy-duty requirements, or complicated geometry may need other formwork methods. The correct choice should always come from the actual engineering and construction requirements.

How the System Is Built

A typical aluminium formwork package may include wall panels, slab panels, beam panels, corner components, connection accessories, supports, working platforms, and other project-specific items.

The exact combination depends on the project drawings. A small residential building may require a relatively simple set of panels, while a large high-rise project may require hundreds or thousands of individual components with carefully planned identification and installation sequences.

For this reason, when a customer asks us for an Aluminium Alloy Formwork System, I prefer to review drawings rather than immediately provide a generic package. The drawings tell us much more about what is actually needed.

Source: Rizhao Fenghua manufacturing practice and general concrete formwork engineering principles. Final component selection should be based on approved project drawings and engineering requirements.

2. How Does Aluminium Formwork Work?

The working principle of aluminium formwork is not difficult to understand. The panels are assembled to create the required concrete shape. Fresh concrete is then poured into the form. The formwork holds the concrete in position while it sets. After the concrete reaches the required condition for stripping, the panels are removed and prepared for reuse.

In real construction, however, the process requires careful planning. Workers cannot simply connect panels and start pouring concrete. They need to check dimensions, alignment, levels, openings, corners, supports, connections, and cleanliness before the pour.

Step 1: Review the Drawings

Before production, we study the architectural and structural information available from the customer. We look at wall dimensions, slab thickness, columns, beams, openings, floor layouts, and repeated sections.

This step is especially important for a custom Aluminium Formwork System. If the panels are designed correctly from the beginning, workers are less likely to face unnecessary modification work on site.

Step 2: Assemble the Panels

Workers install the aluminium panels according to the approved formwork layout. Wall panels, slab panels, corners, beam components, connectors, and supports are positioned according to the construction sequence.

Step 3: Inspect Before Concrete Placement

Before concrete is poured, the construction team checks the formwork carefully. Panel alignment, dimensions, connection points, supports, openings, and cleanliness all matter.

I consider this inspection particularly important. Even accurately manufactured formwork cannot produce the intended result if it is installed incorrectly.

Step 4: Place the Concrete

Concrete is placed according to the project's construction method. Fresh concrete creates pressure against the formwork, so the panel system and supporting structure must be suitable for the actual conditions.

Concrete pressure is affected by several factors, including concrete mix, temperature, placement speed, wall height, vibration, and construction method. This is why I do not recommend using one general load value for every project.

Step 5: Allow the Concrete to Develop Strength

The formwork remains in place until the concrete reaches the required condition for the planned stripping operation. The timing should come from the project engineer, concrete specification, and approved construction procedure.

Step 6: Remove and Reuse

After stripping is approved, workers remove the panels in the planned sequence. The panels are then cleaned, inspected, stored, and moved to the next construction location.

This repeated cycle is one of the main reasons contractors consider reusable Aluminium Formwork.

Source: General concrete construction and formwork practice. Actual erection, concrete placement, inspection, and stripping procedures must follow project-specific engineering documents and local regulations.

3. Main Advantages of Aluminium Alloy Formwork

When customers ask me why they should consider Aluminium Alloy Formwork for Construction, I normally explain that the advantage comes from several characteristics working together. There is no magic feature that solves every construction problem.

Relatively Low Weight

Aluminium has a lower density than steel. As a result, suitably designed aluminium formwork components can be lighter than comparable steel components. This can make frequent movement and manual handling more practical on suitable projects.

Of course, panel size still matters. A large aluminium panel may require mechanical lifting even though aluminium itself is lightweight. Site teams should always follow the project's lifting plan and safety requirements.

Reusable Construction

One of the biggest reasons for selecting aluminium formwork is its ability to be reused. A properly designed system can be moved from one floor or structural section to another.

However, reuse is not automatic. Panels need proper cleaning, storage, transportation, and handling. Workers should avoid unnecessary impact and use appropriate tools when removing or assembling components.

Modular Design

Aluminium panels can be arranged into a modular system. This can be useful when a building contains repeated wall and slab layouts.

For a contractor working on a building with many similar floors, a repeatable formwork layout can make daily planning easier. Once the team understands the system, the same basic installation method can be repeated.

Flexible Customization

Not every building has the same dimensions. We support customized aluminium formwork according to customer drawings and project requirements.

Customization may include different panel sizes, corners, openings, beam arrangements, slab components, and other accessories. The purpose is to make the formwork fit the building rather than forcing the building to fit a standard package.

Durable Metal Construction

Aluminium alloy provides a durable material option for reusable formwork. The actual service life depends on the selected material, panel design, production quality, site handling, cleaning, storage, and maintenance.

Suitable for Repeated Building Layouts

I find aluminium formwork especially interesting for residential buildings and other projects with repeated layouts. When similar concrete structures are built again and again, a reusable panel system can become much more useful than a one-time formwork arrangement.

Source: General properties of aluminium and construction formwork practice. The table describes potential characteristics rather than guaranteed project performance.

4. Aluminium Formwork Compared with Steel and Timber Formwork

I often hear customers ask, “Why should I choose aluminium instead of steel or timber?” My answer is always: start with the project.

Timber formwork can be useful for projects with irregular shapes, small quantities, or situations where cutting and adjustment on site are important. Steel formwork can be a strong option for demanding applications and structures where heavy-duty performance is required. Aluminium formwork sits in another useful position, particularly for repetitive construction and projects where component handling is important.

Here is how I normally explain the general differences.

Source: General construction material and formwork characteristics. The comparison is qualitative and does not represent a universal performance ranking. Actual performance depends on design, material grade, workmanship, loading, and project conditions.

There is another important point: the cheapest formwork system at the time of purchase may not be the cheapest solution for the whole project.

When I compare systems, I look at the total picture. This includes purchase cost, transportation, labor, installation time, expected reuse, cleaning, storage, maintenance, accessories, and possible modifications.

For example, if a building contains many repeated floors, a reusable aluminium formwork system may make more sense than repeatedly preparing new timber forms. On the other hand, if the project has only a few unique concrete sections, a highly customized aluminium package may not be the most economical choice.

That is why we prefer to discuss the actual construction plan with the customer before making a recommendation.

5. Applications of Aluminium Alloy Formwork

Aluminium Alloy Formwork can be used in many areas of concrete construction, but its suitability depends on the project design. From our experience, it is especially worth considering where repeated construction cycles and planned panel layouts are important.

Residential Buildings

Residential construction is one of the most natural applications for aluminium formwork. Apartment buildings often have repeated room arrangements and similar structural layouts on different floors.

For this type of project, the contractor can design a panel set around the repeated building geometry. Once the system is installed and the team becomes familiar with it, the same process can be repeated floor after floor.

High-Rise Construction

High-rise projects can benefit from planned and repeatable construction methods. Aluminium panels can be moved through different levels when the building design is suitable.

However, high-rise construction also creates special requirements for lifting, edge protection, wind conditions, working platforms, concrete placement, and site safety. Aluminium formwork should therefore be integrated into the complete construction plan.

Commercial Buildings

Hotels, office buildings, commercial complexes, and similar projects may include repeated areas as well as unique architectural sections. Aluminium formwork can be designed for suitable areas while other formwork methods can be used where necessary.

Industrial Plants

Industrial buildings can include concrete foundations, equipment bases, walls, columns, beams, channels, and other structures. Aluminium formwork can be considered when the dimensions and construction sequence make reusable modular panels practical.

Infrastructure Projects

Bridges and infrastructure projects have very different engineering conditions from ordinary building construction. Aluminium formwork may be appropriate for selected structures, but the final choice must be based on structural loading, geometry, access, construction sequence, and project-specific engineering.

Projects Requiring Repeated Concrete Forming

This is perhaps the most important application category. Whenever a project contains many similar concrete sections, reusable formwork deserves consideration.

The more often the system can be reused in an efficient and controlled way, the more important the design of the complete formwork package becomes.

Source: Rizhao Fenghua product application experience and general construction practice. Project-specific suitability must be confirmed by qualified engineering personnel.

6. How We Manufacture Aluminium Alloy Formwork

As a manufacturer, I believe buyers should understand the production process instead of looking only at finished product photographs. An aluminium formwork panel may appear simple, but producing a complete set with consistent dimensions requires careful control.

1. Customer Drawing Review

Our work begins with the project information. We review the customer drawings and available specifications to understand the building layout.

We look at wall thickness, slab thickness, columns, beams, openings, corners, floor layouts, and other structural details. If the customer has a repeated floor design, we also consider how the panels will move through the construction cycle.

2. Formwork Planning

After understanding the project, the panel arrangement can be planned. The objective is to create a practical set of components that can be assembled and reused on site.

This stage is where many important decisions are made. A panel that looks efficient in a factory drawing may not be convenient for workers if it is too large, difficult to move, or poorly matched with adjacent components.

3. Material Preparation

Aluminium alloy materials are prepared according to the confirmed production requirements. Material selection is important because the finished components need an appropriate balance of strength, rigidity, weight, and manufacturability.

4. Cutting and Machining

Aluminium sections and components are processed according to production drawings. Dimensions are controlled during production so that the finished components can work together as planned.

5. Welding

Where welding is required, the work is completed using appropriate welding procedures. Our factory has professional manufacturing workshops and automated welding lines, which support consistent production for different order volumes.

We also work with applicable EN 1090 welding requirements for relevant products and processes.

6. Assembly and Inspection

After processing, components are assembled and inspected. We check dimensions, connection locations, welding, component condition, and overall fit.

Our production is managed under an ISO 9001 quality management system. Depending on the product and destination market, applicable international requirements may also include EN 74 and CE-related conformity requirements.

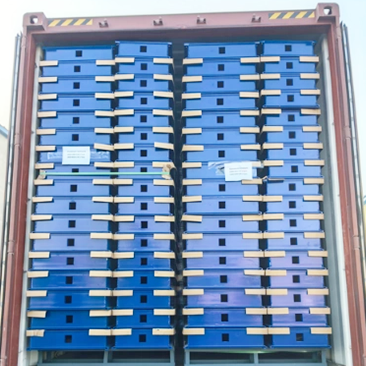

7. Packing

After inspection, products are prepared for transportation. Depending on the product, order quantity, and shipping requirements, we can use steel frames, bundles, or export-standard packaging.

For international orders, I pay close attention to packing because formwork components can travel thousands of kilometers before they reach the construction site. Good packing helps protect the products during loading, unloading, and transportation.

8. International Delivery

We support delivery by sea, rail, and other international logistics methods. The suitable method depends on the destination, order size, delivery schedule, and customer's logistics plan.

Our standard production lead time is generally 30–60 days, depending on order quantity, customization requirements, drawing confirmation, and production planning.

7. Why Choose Rizhao Fenghua for Aluminium Alloy Formwork?

When I purchase industrial equipment myself, I do not look at the product alone. I also want to know who made it, how it was made, whether the supplier can handle customization, and what happens if the project requirements change.

I believe construction formwork should be evaluated in the same way.

Manufacturing Experience Since 1953

Rizhao Fenghua Scaffolding Co., Ltd. was established in 1953. We have spent decades working with construction formwork, scaffolding, and related products.

Our long history does not mean that every project is the same. Quite the opposite. Different customers have different building designs, standards, quantities, packaging requirements, and delivery conditions. That experience helps us understand why project details matter.

Approximately 80,000 m² Factory

Our manufacturing facility in Rizhao, Shandong, covers approximately 80,000 square meters. We have professional production workshops, advanced manufacturing equipment, and automated welding lines.

This gives us the production environment needed to handle customized orders as well as larger-volume construction projects.

Customization According to Drawings

We support customized Aluminium Alloy Formwork according to customer drawings and project requirements.

This is important because construction projects are rarely identical. Wall dimensions, floor plans, openings, beam positions, slab thicknesses, and architectural details can all vary.

Instead of asking customers to adapt their building to a fixed package, we prefer to understand the building first and then develop the appropriate formwork configuration.

Complete Construction Product Range

Our product range includes aluminium alloy formwork, steel formwork, adjustable supports, ring lock scaffolding, cuplock scaffolding, frame scaffolding, and various construction accessories.

This broader manufacturing experience is useful when customers need several types of temporary works equipment for one project.

Quality Management

Our production operates under ISO 9001 quality management. We also work with international requirements including EN 1090 and applicable EN 74 and CE requirements for relevant products and markets.

At the same time, I always advise customers to confirm the exact standard required for their specific product, construction application, and destination country. Certification requirements are not automatically identical for every product.

Global Export Experience

Our products have been exported to 126 countries and regions. International export is not only about manufacturing. It also involves packaging, documentation, loading, shipping, communication, and delivery planning.

Flexible Payment and Logistics

We support payment methods including T/T and L/C, subject to the agreed contract. Products can be shipped by sea, rail, or other international logistics methods depending on the project.

Our goal is to make the process clear before production starts. We confirm drawings, specifications, quantities, packaging, payment terms, production schedules, and delivery arrangements with the customer before moving forward.

8. Aluminium Alloy Formwork FAQ

What is Aluminium Alloy Formwork used for?

Aluminium Alloy Formwork is used to create temporary molds for fresh concrete. It can be configured for walls, slabs, columns, beams, and other suitable concrete structures. The exact application depends on the project's engineering and construction requirements.

What are the main benefits of Aluminium Alloy Formwork?

The main characteristics include relatively low weight compared with steel, reusable panels, modular construction, flexible configuration, and suitability for repeated concrete forming. Actual project benefits depend on building design, construction methods, installation quality, and reuse conditions.

Is Aluminium Alloy Formwork suitable for residential buildings?

Yes. Residential buildings with repeated floor layouts are often suitable candidates for aluminium formwork. Similar walls, slabs, openings, and structural sections can allow the panels to be reused through multiple construction cycles.

Can you provide customized Aluminium Alloy Formwork?

Yes. We manufacture customized aluminium formwork according to customer drawings and project requirements. Customers can provide architectural drawings, structural drawings, dimensions, quantities, or other technical information for our team to review.

Is aluminium formwork lighter than steel formwork?

Aluminium has a lower density than steel, so suitably designed aluminium components are generally lighter than comparable steel components. Actual panel weight depends on alloy selection, panel dimensions, reinforcement, section design, and construction details.

How many times can aluminium formwork be reused?

There is no single reuse figure that applies to every aluminium formwork system. Reuse depends on material, panel design, manufacturing quality, concrete conditions, site handling, cleaning, storage, maintenance, and construction practices.

How should aluminium formwork be maintained?

After stripping, the panels should be cleaned and inspected. Concrete residue should be removed using suitable methods. Components should be stored carefully to avoid unnecessary impact, deformation, or damage. Proper handling has a direct effect on the useful life of reusable formwork.

What information do you need to quote an aluminium formwork project?

For an accurate quotation, I recommend sending the architectural and structural drawings whenever possible. Other useful information includes wall thickness, slab thickness, building height, floor layout, number of floors, project location, expected quantity, construction schedule, and any required standards.

What is your normal production lead time?

Our standard production lead time is usually 30–60 days. The actual schedule depends on order quantity, customization, drawing confirmation, production workload, and other project conditions.

How do you pack Aluminium Alloy Formwork for export?

Depending on the product and order, we use steel frames, bundles, or export-standard packaging. The packing method is selected according to panel dimensions, quantity, loading requirements, and transportation conditions.

Can you ship aluminium formwork internationally?

Yes. We support international shipping by sea, rail, and other logistics methods. The appropriate transportation method depends on destination, order volume, delivery schedule, and customer requirements.

What standards are relevant to your aluminium formwork products?

Our manufacturing operates under ISO 9001 quality management. Depending on the product and destination market, applicable requirements may include EN 1090, EN 74, and CE-related requirements. The exact compliance scope should be confirmed for the specific product and market.

Do you manufacture other scaffolding products?

Yes. Along with aluminium alloy formwork, we manufacture steel formwork, adjustable supports, ring lock scaffolding, cuplock scaffolding, frame scaffolding, and construction accessories.

Final Thoughts: Choosing the Right Aluminium Alloy Formwork

After many years in the formwork and scaffolding industry, I have learned that the best construction system is usually the one that fits the actual job rather than the one with the longest list of specifications.

Aluminium Alloy Formwork is a practical option for projects that need reusable concrete forming, especially where repeated layouts make a modular system useful. Its relatively low weight, reusable design, flexible configuration, and customization potential make it worth considering for residential buildings, commercial construction, industrial projects, and selected infrastructure applications.

But I would not recommend buying aluminium formwork simply because another contractor uses it. First, look at your own building. Check the wall and slab dimensions. Review the construction sequence. Consider how many times the panels can realistically be reused. Think about labor, lifting equipment, storage, transportation, and maintenance.

Then look at the supplier.

Can the manufacturer work from your drawings? Can the factory produce the required panels and accessories? Does the supplier have a controlled quality system? Can the products be packed properly for international transportation? Can the company support your required payment and logistics arrangements?

These questions often tell you much more than a simple product price.

At Rizhao Fenghua Scaffolding Co., Ltd., we combine long-term manufacturing experience with a large production facility, professional workshops, automated welding equipment, customization capability, and international export experience. We manufacture Aluminium Alloy Formwork and other construction products for customers across global markets.

If you are looking for Aluminium Alloy Formwork for Construction, a custom Aluminium Formwork System, reusable Aluminium Formwork, aluminium Wall Formwork, aluminium slab formwork, or a complete concrete formwork solution, we welcome you to send us your project drawings and requirements.

Once we understand the project, we can discuss the formwork layout, component requirements, quantities, production schedule, packaging, payment terms, and delivery plan with you.

For us, good formwork is not simply about producing aluminium panels. It is about making sure those panels work together as a practical construction system when they reach the job site.

Technical Reference Notes and Sources

The technical information in this article is presented as practical product guidance. It should not replace project-specific structural calculations, engineering drawings, construction method statements, risk assessments, or local regulations.

• ISO 9001: International standard for quality management systems. Quality management requirements should be applied according to the certified organization's scope.

• EN 1090: European standard series concerning the execution of steel and aluminium structures and related conformity requirements.

• EN 74: European standard covering certain couplers, spigot pins, and baseplates used with scaffolding and falsework.

• CE marking: European conformity marking applicable to products that fall under relevant European Union legislation.

• Construction formwork practice: Formwork selection, design, erection, concrete pressure, stripping, and safety should be determined according to the applicable project design and construction requirements.

Important: The comparison tables in this article are intended to help buyers understand general differences between formwork options. They are not product test results and should not be interpreted as guaranteed performance values. Actual allowable loads, dimensions, tolerances, reuse cycles, stripping times, and support requirements must be confirmed through project-specific technical documentation.
