Aluminium Alloy Formwork Shutter

1. What Is an Aluminium Alloy Formwork Shutter?

An Aluminium Alloy Formwork Shutter is a reusable formwork panel system used to shape fresh concrete before it hardens. Think of it as a temporary mold. The panels are assembled according to the required wall, slab, beam, column, or other concrete structure. Fresh concrete is then poured into the formed space and kept in position until it reaches the required condition.

Once the concrete is ready for the next construction stage, the formwork can be removed, cleaned, checked, and moved to another location. On projects with repeated building layouts, the same set of panels may be used through many construction cycles.

The use of aluminium alloy is important because it provides a good balance between strength and handling weight. Workers still need to follow proper lifting and site safety procedures, but suitably designed aluminium components can be easier to move than many heavier steel alternatives.

For me, however, the material itself is only one part of the story. A successful aluminium formwork system depends on several things working together:

• Accurate panel dimensions

• Suitable aluminium alloy construction

• Reliable connection components

• Correct wall and slab layout

• Proper support and stabilization

• Good installation procedures

• Correct cleaning and storage after use

• Project-specific engineering review

This is why we encourage customers to provide drawings and project details before ordering. A building may look simple on paper, but small differences in wall thickness, openings, corners, slab levels, or column sizes can change the formwork requirements.

Typical Aluminium Formwork Components

A complete aluminium formwork package may contain wall panels, slab panels, beam components, corner panels, connecting pins, wedges, supports, working accessories, and other components required for the planned construction method.

The exact configuration is not the same for every project. A residential tower with repeated floor plans may need a different system from a commercial building with irregular rooms or an industrial structure with large concrete foundations.

That is one reason I prefer discussing the complete project instead of quoting only a unit price per square meter. The customer needs a system that workers can actually assemble and use efficiently.

Source: Rizhao Fenghua product and manufacturing practice, supported by general Concrete Formwork engineering principles. Final component selection should follow the project drawings and engineering requirements.

2. How Does Aluminium Alloy Formwork Shutter Work?

The basic working principle is easy to understand. Before concrete is poured, workers assemble the aluminium panels into the required shape. The panels act as a temporary boundary for the concrete. After the concrete gains sufficient strength, the panels are removed and prepared for another cycle.

In practice, there is more to it than simply connecting a few panels together. The installation team needs to check lines, levels, dimensions, openings, corners, connections, supports, and cleanliness before concrete placement begins.

I always consider the pre-pour inspection very important. A formwork system may be manufactured accurately at the factory, but if the panels are installed incorrectly on site, the final concrete result can still be affected.

Step 1: Prepare the Construction Area

The site is prepared according to the project construction method. Reference lines and levels are established so workers know where the formwork needs to go.

Step 2: Assemble the Panels

Workers position the aluminium panels according to the approved layout. Wall panels, slab panels, corners, beam sections, supports, and other accessories are connected as required.

Step 3: Check the Formwork

Before pouring concrete, workers check panel alignment, dimensions, connections, supports, openings, and other critical points. Any problem should be corrected before concrete placement.

Step 4: Place the Concrete

Concrete is placed according to the project method statement. Fresh concrete creates pressure on the formwork, so the panels and supporting system must be designed and installed for the actual conditions.

The pressure is not identical for every project. Concrete temperature, mix design, placement speed, wall height, vibration, and other factors can influence the load applied to formwork. For that reason, I would never recommend using one generic load figure for every building.

Step 5: Allow the Concrete to Reach the Required Condition

The formwork remains in place until the concrete reaches the condition required by the project specifications and engineering instructions.

Step 6: Remove and Reuse the Panels

Once stripping is permitted, workers remove the panels following the approved sequence. The panels are cleaned, inspected, and prepared for the next construction cycle.

Source: General construction formwork practice. Actual erection, concrete placement, inspection, and stripping procedures must follow the project engineer's instructions, method statement, applicable standards, and local regulations.

3. Main Features of Aluminium Alloy Formwork Shutter

When customers ask me what makes an Aluminium Alloy Formwork Shutter useful, I normally point to the complete working experience rather than one marketing specification.

Lightweight Construction

Aluminium alloy is lighter than many traditional steel Formwork Systems. This can make suitably sized panels easier to move and position. On projects where workers need to move components frequently, reducing unnecessary handling effort can be useful.

Of course, lightweight does not mean the system can ignore lifting safety. Larger panels and assembled sections may still require mechanical handling. The correct method should always be determined by the panel size and site safety plan.

Reusable Formwork

One of the key reasons contractors consider aluminium formwork is reuse. If a project has repeated floor layouts, the same panels can be moved from one area to another rather than manufacturing new formwork every time.

But reuse depends heavily on how the panels are treated. Cleaning, storage, transportation, and daily site handling all matter. Even a well-made formwork panel can be damaged by careless handling.

Flexible Panel Arrangement

An aluminium formwork system can be configured for different building layouts. We can manufacture customized panels according to customer drawings and project requirements.

This is particularly useful when the building contains different wall lengths, door and window openings, corners, columns, beams, or other details that cannot be handled efficiently by a completely generic package.

Repeatable Installation

Once workers become familiar with a well-planned system, repeated installation can become easier to manage. Panel identification, consistent connections, and clear layout drawings can help the site team follow the same basic process from one floor to another.

Durable Aluminium Structure

The aluminium alloy construction is designed for repeated construction use. The actual service life and number of reuse cycles depend on many factors, including design, alloy selection, manufacturing quality, concrete conditions, handling, cleaning, storage, and maintenance.

Adaptability to Different Projects

We supply formwork for residential buildings, commercial construction, industrial projects, infrastructure work, and other concrete applications. The key is matching the system to the actual project instead of assuming that one configuration works everywhere.

4. Aluminium Alloy Formwork vs. Steel Formwork

I am often asked whether aluminium alloy formwork is better than steel formwork. My honest answer is that there is no universal winner. Both materials have their place in construction.

For projects with repeated layouts and frequent panel movement, aluminium can be attractive because of its lower material density and practical handling characteristics. Steel, on the other hand, remains widely used where very high rigidity, heavy-duty applications, or specific project conditions make it appropriate.

The right comparison should include the complete project cost rather than just the purchase price.

Source: General engineering characteristics of aluminium alloys and structural steel, together with construction formwork practice. This is a qualitative comparison, not a structural design calculation. Specific material properties depend on the selected alloy, steel grade, component design, and manufacturing method.

There is another point that is easy to miss: the construction schedule. If workers can move, assemble, and reuse the panels efficiently, the project may benefit from the system even when the initial purchase price is not the lowest option.

That is why I recommend looking at total formwork cost, including purchasing, transportation, labor, installation, reuse, cleaning, storage, maintenance, and possible modification.

5. Applications of Aluminium Alloy Formwork Shutter

The Aluminium Alloy Formwork Shutter is most useful where its technical characteristics match the construction method. We do not tell every customer that aluminium is automatically the right choice. Instead, we look at the building and determine where it makes practical sense.

Residential Construction

Residential buildings are one of the common applications because many apartment projects contain repeated floor plans. Similar wall, slab, column, and opening layouts can make reusable aluminium formwork easier to plan.

For high-rise residential construction, the ability to move and reuse panels through repeated floors can also be valuable. However, the complete system still needs to be checked against the structural design and construction sequence.

Commercial Buildings

Hotels, offices, shopping facilities, and other commercial buildings can have both repeated and irregular areas. Aluminium formwork may be used in suitable sections, while other formwork solutions can be considered for unusual shapes or special structures.

Industrial Plants

Industrial facilities can contain concrete walls, foundations, columns, equipment bases, channels, and other structures. Aluminium formwork can be considered when the geometry and construction process suit its modular characteristics.

Infrastructure Projects

Bridges and infrastructure projects require careful engineering because loading, geometry, access, and construction sequence can be very different from building construction. Aluminium formwork may be appropriate for selected applications after engineering review.

Repeated Concrete Structures

Whenever a project contains many similar concrete sections, reusable formwork becomes more interesting. Instead of treating each concrete pour as a completely separate job, the contractor can establish a repeatable installation cycle.

Source: General construction application practice and Rizhao Fenghua product application experience. Project suitability must be confirmed by the responsible engineer based on structural design, loads, geometry, erection method, and local regulations.

6. How We Manufacture Aluminium Alloy Formwork Shutter

As a manufacturer, I think it is important for buyers to understand what happens before the product arrives at the construction site. A formwork panel may look like a simple aluminium frame, but producing many panels that fit together correctly requires careful work.

Drawing and Project Review

We begin by reviewing customer drawings and technical information. We look at the building layout, wall dimensions, slab thickness, columns, beams, openings, corners, and other features that affect the panel design.

For customized aluminium formwork, this stage is especially important. The earlier we understand the project, the easier it is to reduce unnecessary changes during production.

Material Preparation

Aluminium alloy materials and related components are prepared according to the agreed product design and manufacturing requirements. Material selection affects the final balance between weight, strength, rigidity, and manufacturing efficiency.

Cutting and Processing

Aluminium sections are cut and processed according to production drawings. Dimensional checks are carried out to make sure the components are manufactured within the required tolerances.

Welding

Where welded construction is required, welding is performed according to applicable production procedures. Our factory includes professional manufacturing workshops and automated welding lines, supporting consistent production for different order volumes.

Assembly and Inspection

After individual components are processed, they are assembled and checked. We pay attention to panel dimensions, connection points, welding quality, component fit, and overall condition.

Our production is managed under an ISO 9001 quality management system. We also work with international requirements including EN 1090, and our product range includes products associated with EN 74 and CE requirements where applicable.

Final Packing

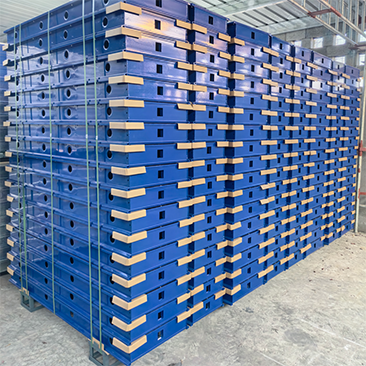

Before shipment, products are professionally packed according to their size, quantity, and transportation requirements. Steel frames, bundles, and export-standard packaging can be used where appropriate.

For international projects, packing is not a small detail. Formwork components may travel a long distance before reaching the job site. Good packing helps reduce damage during loading, unloading, and transportation.

Typical Production Lead Time

Our standard production lead time is normally around 30–60 days. The actual schedule depends on order quantity, customization requirements, drawing confirmation, production workload, and other project conditions.

For a large customized order, I recommend starting technical discussions as early as possible. This gives both sides more time to confirm drawings, quantities, accessories, packaging, payment terms, and delivery arrangements.

7. Why Choose Rizhao Fenghua for Aluminium Alloy Formwork Shutter?

When choosing a formwork manufacturer, I believe buyers should look at more than a product photograph and a low quotation. Formwork is closely connected with construction schedules, and problems discovered after delivery can be expensive to solve.

Our company has been manufacturing construction formwork and scaffolding products since 1953. That long manufacturing history has given us experience with different product types, production requirements, customer drawings, export packaging, and international delivery.

80,000 m² Manufacturing Facility

Our factory in Rizhao, Shandong, covers approximately 80,000 square meters. We have professional manufacturing workshops, advanced production equipment, and automated welding lines.

A large production facility does not automatically guarantee a good product, of course. What matters is how the equipment, people, processes, inspection, and project management work together. That is where we continue to focus our efforts.

Customized According to Drawings

We support customized aluminium formwork according to customer drawings and project requirements. This allows us to consider the actual building instead of forcing the customer to adapt the building to a fixed product package.

Customers can provide architectural drawings, structural drawings, panel layouts, dimensions, quantities, or other available project information. Our team can review the requirements and discuss the appropriate formwork configuration.

Complete Formwork and Scaffolding Range

Our product range includes aluminium alloy formwork, steel formwork, adjustable supports, ring lock scaffolding, cuplock scaffolding, frame scaffolding, and construction accessories.

This means customers can discuss different parts of a construction project with one experienced manufacturer rather than contacting multiple suppliers for every related product.

Quality Management and International Requirements

Our production is managed under ISO 9001 quality management. We also manufacture with reference to international standards and requirements such as EN 1090 and EN 74, with CE certification available where applicable to the relevant product and market.

I always recommend that customers confirm exactly which standard and certification applies to their particular product before ordering. Standards can depend on the product type, application, and destination market.

International Export Experience

Our products have been exported to 126 countries and regions. International customers have different requirements for packaging, documents, logistics, payment, and delivery schedules. Our export experience helps us understand these practical details.

Flexible Payment and Delivery

We support payment methods including T/T and L/C, subject to the agreed contract. Products can be shipped by sea, rail, or other international logistics methods depending on the destination and project requirements.

Our goal is simple: make the purchasing process clear before production begins, manufacture according to the confirmed requirements, pack the products properly, and coordinate delivery according to the agreed schedule.

8. Aluminium Alloy Formwork Shutter FAQ

What is an Aluminium Alloy Formwork Shutter?

An Aluminium Alloy Formwork Shutter is a reusable aluminium formwork panel used to shape fresh concrete. It can be configured for suitable walls, slabs, beams, columns, and other concrete structures according to project requirements.

What are the main advantages of aluminium formwork?

The main advantages include relatively low weight compared with steel, reusable construction, flexible panel arrangement, practical site handling, and suitability for repeated concrete construction cycles. The actual benefits depend on project design and construction methods.

Is aluminium formwork suitable for high-rise residential buildings?

It can be suitable for high-rise residential projects, particularly where floors have repeated layouts. Before manufacturing, we recommend reviewing the architectural and structural drawings, construction sequence, panel quantities, and engineering requirements.

Can you manufacture customized aluminium formwork?

Yes. We can manufacture customized aluminium formwork according to customer drawings and project requirements. Customers can provide drawings, dimensions, quantities, or other available technical information for review.

How many times can aluminium formwork be reused?

There is no single reuse number that applies to every system. Actual reuse depends on panel design, material, manufacturing quality, concrete conditions, handling, cleaning, storage, maintenance, and site management. A supplier should confirm expected performance for the specific system rather than using an unsupported universal figure.

Is aluminium formwork lighter than steel formwork?

Aluminium has a lower density than steel, so aluminium components can generally be lighter when comparing similarly designed components. However, actual panel weight depends on the alloy, section design, reinforcement, dimensions, and complete panel construction.

What information do you need for a quotation?

For an accurate quotation, I recommend providing project drawings whenever possible. Useful information includes building type, wall thickness, slab thickness, floor layout, building height, number of floors, concrete requirements, expected quantity, destination, and required delivery date.

What is the normal production time?

Our standard production lead time is usually 30–60 days. The actual time depends on order quantity, customization, drawing confirmation, production planning, and other project requirements.

How are aluminium Formwork Panels packed?

Depending on the product and order, panels and accessories can be packed with steel frames, bundles, or export-standard packaging. We select the packing method according to product dimensions, quantity, loading requirements, and transportation conditions.

Can you ship aluminium formwork internationally?

Yes. We support international shipping by sea, rail, and other logistics methods. The most suitable transportation method depends on the destination, order volume, delivery schedule, and customer requirements.

What quality standards do your products follow?

Our manufacturing is managed under an ISO 9001 quality management system. Depending on the specific product and destination market, applicable international requirements may include EN 1090, EN 74, and CE certification. The exact compliance scope should be confirmed for each order.

How should aluminium formwork be maintained?

After stripping, panels should be cleaned and inspected. Concrete residue should be removed using suitable methods, and panels should be stored in a way that avoids unnecessary impact, deformation, or contamination. Proper maintenance is important for repeated use.

Final Thoughts: Is Aluminium Alloy Formwork Shutter Right for Your Project?

After working with formwork and scaffolding products for many years, I have learned that there is no need to make formwork more complicated than it has to be. The system needs to be strong enough for the planned application, practical for workers, compatible with the building design, and easy to manage through repeated construction cycles.

Aluminium Alloy Formwork Shutter can be a practical choice for residential buildings, commercial construction, industrial projects, and selected infrastructure applications. Its relatively low weight, reusable design, flexible configuration, and customization potential make it worth considering when the project conditions are suitable.

But I would not recommend choosing a formwork system based on one specification alone. Look at the complete picture. Check the drawings. Consider the construction sequence. Calculate the required quantity. Review the accessories. Think about transportation and storage. Most importantly, make sure the formwork is designed and installed according to the project's engineering and safety requirements.

At Rizhao Fenghua Scaffolding Co., Ltd., we approach aluminium formwork from a manufacturer's point of view. We manufacture the panels, review customer requirements, manage production, inspect products, arrange export packaging, and coordinate international delivery. With our long manufacturing history, 80,000 m² factory, professional workshops, automated welding lines, and broad range of construction products, we can support customers looking for a complete and practical solution.

If you are sourcing Aluminium Alloy Formwork Shutter, aluminium Wall Formwork, Aluminium Concrete Shuttering, reusable aluminium formwork, or a customized aluminium formwork system, you can send us your drawings and project details. We can review the requirements with you and work out the panel configuration, quantities, accessories, production schedule, packaging, and delivery plan.

For us, a successful formwork order is not simply about delivering aluminium panels. It is about delivering a system that makes sense on the construction site.

Technical Reference Notes

The technical information in this article is intended as practical product guidance. It should not replace project-specific structural calculations, engineering drawings, construction method statements, or local safety regulations.

• ISO 9001: Internationally recognized framework for quality management systems.

• EN 1090: European standard series covering the execution of steel and aluminium structures and related conformity requirements.

• EN 74: European standard covering certain couplers, spigot pins, and baseplates used with scaffolding and falsework.

• CE marking: European conformity marking applicable to products covered by relevant European legislation.

For specific formwork projects, allowable loads, concrete pressure, support spacing, erection procedures, stripping times, and safety requirements must be determined by qualified project personnel according to the applicable design and regulations.
