Steel Plate Formwork

1. What Is Steel Plate Formwork?

Steel Plate Formwork is a temporary mold used to hold fresh concrete in the required shape      until the concrete becomes strong enough to support itself. In simple terms, I like to describe it as a      reusable “frame” around concrete.

Instead of allowing wet concrete to spread freely, the steel formwork creates a controlled space. Concrete is      placed into that space, and the formwork keeps the concrete at the planned dimensions and alignment. After the      concrete reaches the required condition, the formwork is removed and can be prepared for another construction      cycle.

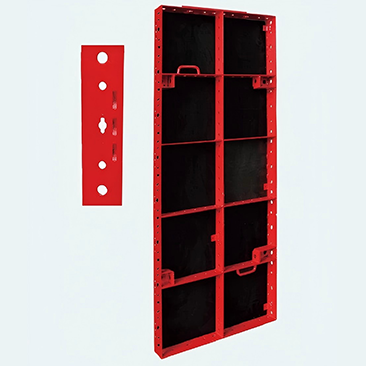

A typical steel plate formwork system can include steel facing plates, stiffening ribs, frames, connecting      components, ties, supports, lifting points, and other accessories. The exact configuration depends on the      project.

This is important because there is no single steel formwork design that is perfect for every building. A small      residential wall, a large industrial foundation, a bridge structure, and a high-rise project can have very      different requirements.

When I review a customer's request, I normally start with the drawings and project conditions rather than      immediately recommending a standard panel. I want to know the concrete structure, dimensions, construction      sequence, expected reuse, lifting method, site conditions, and delivery requirements.

Common Types of Steel Formwork Applications

• Concrete Wall Formwork

• Column formwork

• Foundation formwork

• Bridge and infrastructure formwork

• Industrial plant construction

• Commercial building construction

• Residential building construction

• Concrete tanks and structural elements

• Heavy-duty construction projects

• Customized concrete structures

The American Concrete Institute's guidance on concrete formwork focuses on safety, quality, and economy.      It also addresses design loads, Formwork Accessories, drawings, construction, materials, inspection, and      removal. This is why I always recommend looking at the complete formwork system instead of judging a panel      only by its appearance. :contentReference[oaicite:0]{index=0}

2. How Does Steel Plate Formwork Work?

The basic working principle is quite easy to understand. The formwork is assembled around the area where      concrete will be placed. The panels are connected and supported so that they keep their planned position.      Reinforcement is installed according to the structural drawings, and concrete is then poured into the formed      space.

Fresh concrete is heavy and creates pressure against the formwork. The steel plates and supporting structure      must therefore be designed and assembled so that they can safely resist the expected construction loads.

This is one reason why I do not recommend comparing formwork by steel thickness alone. A thicker plate does not      automatically mean a better system. The complete structure matters: plate geometry, ribs, frames, connection      points, ties, supports, welds, and the way loads move through the system all have a role.

A Typical Working Sequence

1. Review the structural and formwork drawings.

2. Confirm the required dimensions and concrete shape.

3. Prepare the construction area.

4. Install reinforcement and embedded components as required.

5. Position the steel Formwork Panels.

6. Connect panels and install required ties or supports.

7. Check dimensions, alignment, level, and stability.

8. Place concrete according to the approved construction method.

9. Monitor the formwork during concrete placement.

10. Remove the formwork after the required concrete condition is reached.

11. Clean, inspect, and prepare panels for the next use.

The exact sequence depends on the project. Formwork is a temporary structure, but it still needs proper      engineering and construction planning. ACI guidance specifically discusses vertical and horizontal loads,      construction loads, safety factors, formwork drawings, stability, and inspection. :contentReference[oaicite:1]{index=1}

Why Panel Connections Matter

From a manufacturing point of view, connections deserve just as much attention as the steel plate itself.      Panels need to fit together properly, and the connection arrangement needs to suit the expected construction      conditions.

Poorly matched panels can make installation slow. Incorrect connections can create alignment problems. For      this reason, I prefer to discuss the complete panel arrangement with the customer before production.

3. Main Features of Steel Plate Formwork

The reason contractors continue to use steel formwork is fairly straightforward: it is designed for repeated      construction work. When properly manufactured and maintained, steel panels can provide a stable forming surface      and can be used across multiple concrete pours.

High Structural Strength

Steel provides a strong base for formwork construction. Properly designed plates, frames, and stiffeners help      the system resist deformation during concrete placement.

Good Dimensional Stability

Concrete construction depends heavily on dimensions. Walls need to be straight, columns need to remain in the      planned position, and openings need to match the drawings. A rigid formwork system helps contractors maintain      these requirements when it is correctly installed and supported.

Reusable Construction System

One of the biggest advantages of steel plate formwork is reuse. Unlike temporary materials that are designed      for limited applications, steel panels can be cleaned, checked, stored, and used again when the system is      designed for repeated cycles.

I do want to make one point clear: nobody should promise a fixed number of reuse cycles without knowing the      product design and site conditions. The actual service life depends on concrete adhesion, handling, lifting,      cleaning, storage, impact, installation practices, and maintenance.

Flexible Configuration

Steel formwork panels can be produced in different sizes and configurations. For custom projects, we can work      from customer drawings and project requirements to determine a suitable arrangement.

Suitable for Repetitive Construction

When a project contains many similar walls, columns, foundations, or structural sections, reusable formwork      can become especially useful. The same basic system can be moved from one location to another instead of      creating new forms for every pour.

Suitable for International Projects

Steel panels can be bundled, placed in steel frames, and prepared for export transportation. This makes them      practical for overseas construction projects where the formwork must travel long distances before reaching the      job site.

4. Technical Advantages and Practical Performance

When a customer asks me whether Steel Plate Formwork is suitable for a project, I normally      look at four basic questions: Can it carry the expected loads? Can workers install it efficiently? Can the      dimensions be controlled? And can the system provide reasonable value over the project life?

Strength and Rigidity

A properly designed steel panel system can provide high rigidity. The steel facing plate forms the concrete      surface while the surrounding frame and stiffeners help support the plate.

The actual capacity should always be confirmed through project-specific design calculations. ACI states that      formwork should be planned and designed to safely support the applicable vertical and lateral loads until the      concrete structure can support those loads itself. :contentReference[oaicite:3]{index=3}

Concrete Surface Quality

The condition of the form-facing surface can affect the finished concrete. A clean and properly maintained      panel can help provide a more consistent surface, but the final result also depends on concrete mix,      vibration, release agent, joints, placement speed, and site workmanship.

I always recommend treating formwork and concrete placement as one system. Even an excellent panel cannot      correct poor concrete placement practices.

Reduced Formwork Replacement

Because steel panels are intended for repeated use, they can reduce the need to fabricate completely new      forms for each construction section. This can be especially useful for large projects with repeated      structural elements.

Better Adaptability for Custom Projects

Not every construction project follows standard dimensions. Custom steel plate formwork can be developed for      unusual wall sizes, special openings, different structural arrangements, or particular installation methods.

Connection with Other Systems

Steel plate formwork can be used alongside adjustable supports, scaffolding systems, working platforms, and      other construction accessories. At Rizhao Fenghua, we manufacture several of these product categories, which      allows us to consider the wider construction system when discussing project requirements.

The comparison above is not intended to say that one material is always better than another. In real projects,      I have found that the best choice depends on the construction method, number of repetitions, labor conditions,      available lifting equipment, project size, and required finish.

5. Where Is Steel Plate Formwork Used?

Steel Plate Formwork for Concrete Construction can be used across many building and civil      engineering applications. Its strong and reusable structure makes it particularly useful where contractors      expect repeated formwork operations or need a robust panel system.

Residential Buildings

Residential projects may use steel formwork for foundations, walls, columns, retaining structures, and other      concrete elements. The final choice depends on project size and construction method.

Commercial Buildings

Hotels, offices, shopping centers, and other commercial buildings often contain repeated concrete structures.      Reusable steel panels can make sense when the same dimensions appear many times.

Bridges and Infrastructure

Infrastructure projects can involve foundations, piers, walls, and other concrete structures. These projects      often require careful planning because construction loads, lifting, access, and repeated operations can be      significant.

Industrial Plants

Industrial facilities can require strong formwork for foundations, equipment bases, walls, tanks, columns, and      other structures. Customized steel panels can be useful when standard building dimensions do not match the      project.

Water and Utility Projects

Water treatment plants, reservoirs, drainage structures, and utility facilities use a wide range of concrete      structures. Formwork selection should consider wall thickness, dimensions, construction sequence, access, and      surface requirements.

Heavy Construction

Large foundations and infrastructure work can place higher demands on temporary structures. Steel formwork      provides a practical option where a durable panel system is required, provided that the complete system is      properly designed for the expected construction loads.

6. How We Manufacture Steel Plate Formwork

Manufacturing is where a drawing becomes a real product. At Rizhao Fenghua, I consider production control one      of the most important parts of supplying custom steel plate formwork.

Step 1: Drawing and Requirement Review

We begin by reviewing customer drawings and project information. We look at dimensions, panel arrangement,      connections, supports, required quantity, and special requirements.

If the customer has no final formwork drawing, we first need enough technical information to understand the      required product. This can include concrete structure dimensions, project drawings, intended use, quantity,      and installation conditions.

Step 2: Material Preparation

Steel materials and components are prepared according to the approved production requirements. Before      fabrication, the material needs to be suitable for the intended manufacturing process.

Step 3: Cutting and Component Preparation

Steel plates, frames, ribs, connection parts, and other components are prepared according to the production      drawings. Accurate preparation at this stage helps reduce problems during assembly.

Step 4: Welding and Fabrication

The prepared components are assembled and welded. Our factory uses professional welding equipment and      automated welding lines for suitable production operations.

Welding is not just about joining two pieces of metal. The position of the weld, fabrication sequence,      dimensional control, and quality inspection all matter. EN 1090-2 covers technical requirements for the      execution of structural steelwork and includes requirements related to fabricated and welded steel components.      :contentReference[oaicite:5]{index=5}

Step 5: Assembly and Inspection

Once the main fabrication is complete, the components are assembled and checked. We pay attention to      dimensions, connection points, weld condition, panel flatness, structural components, and overall appearance.

Step 6: Surface Treatment

Surface treatment depends on the customer's product specification and project requirements. The selected      treatment should be considered together with storage, transportation, site conditions, and expected product use.

Step 7: Final Inspection and Packing

Before shipment, products are checked against the approved order and production requirements. Panels are then      packed using suitable methods such as steel frames, bundles, or export-standard packaging.

Our normal production lead time is approximately 30–60 days, depending on order quantity and      customization requirements. For large or highly customized orders, I recommend confirming the schedule after      drawings and specifications have been finalized.

The company operates under an ISO9001 quality management system and supplies products according to applicable      international requirements, including EN74, EN1090, and CE requirements where relevant to the specific product      and market.

7. Why Choose Rizhao Fenghua for Steel Plate Formwork?

Buying formwork from an overseas manufacturer is not simply about finding the lowest unit price. In my view,      the real question is whether the supplier can consistently make the product you actually need.

More Than 70 Years of Manufacturing History

Rizhao Fenghua Scaffolding Co., Ltd. was established in 1953. Over the years, our business has developed around      building formwork, scaffolding systems, construction accessories, manufacturing, and international supply.

80,000 m² Factory

Our factory in Rizhao, Shandong, covers approximately 80,000 m². We have professional manufacturing workshops,      advanced production equipment, and automated welding lines. This provides a solid production base for both      standard and customized construction products.

One Manufacturer for Multiple Construction Systems

We manufacture Aluminum Alloy Formwork, steel formwork, adjustable supports, ring lock scaffolding, cuplock      scaffolding, Frame Scaffolding, and construction accessories.

This is useful when a customer needs more than one product category. Instead of coordinating every product with      a different supplier, a project can be discussed from a wider construction-system perspective.

Customization Based on Drawings

We understand that construction projects are rarely identical. We can review customer drawings and develop      customized formwork configurations according to project dimensions and requirements.

Quality and International Standards

Our quality management follows ISO9001. We also work with international requirements including EN74, EN1090,      and CE certifications as applicable to the specific product.

I prefer to be precise here: a certification should never be treated as a replacement for project-specific      engineering. The actual formwork design, load conditions, installation method, and site safety requirements      still need to be reviewed by the responsible construction professionals.

Global Export Experience

Our products have been exported to 126 countries and regions. International construction      orders often require careful attention to packing, documentation, payment terms, inspection, and shipping.

Flexible Delivery and Packaging

We can arrange export packaging using steel frames, bundles, or other suitable methods. Depending on the      destination and logistics plan, goods can be shipped by sea, rail, or other international transportation      methods.

Payment options can include T/T and L/C, subject to the final contract and order conditions.

8. Steel Plate Formwork FAQ

Q1: What is Steel Plate Formwork used for?

Steel Plate Formwork is used to create temporary molds for concrete construction. Common applications include      walls, columns, foundations, bridge structures, infrastructure projects, industrial plants, tanks, and other      reinforced concrete structures.

Q2: Is steel formwork reusable?

Yes. Steel formwork is generally designed with repeated use in mind. The actual number of reuse cycles depends      on the panel design, concrete conditions, installation method, lifting, cleaning, storage, maintenance, and      handling practices.

Q3: Can you manufacture custom steel plate formwork?

Yes. We can review customer drawings and project requirements for customized steel plate formwork. Customers      should provide dimensions, structure type, quantity, drawings, expected use, and other available technical      information.

Q4: What information do you need for a quotation?

I normally recommend sending project drawings first. Useful information includes panel dimensions, concrete      structure type, quantity, required accessories, expected delivery date, project location, applicable standards,      and packing requirements.

Q5: Is Steel Plate Formwork suitable for heavy construction?

Steel formwork can be suitable for demanding construction applications when it is properly designed for the      expected loads and construction method. The actual working capacity must be verified for the specific system      and project.

Q6: How long does it take to manufacture steel formwork?

Our standard production lead time is usually 30–60 days. The actual schedule depends on order quantity,      customization, drawing confirmation, inspection requirements, production planning, and other project factors.

Q7: How do you control the quality of steel formwork?

Our products are manufactured under an ISO9001 quality management system. Production includes material      preparation, fabrication, welding, assembly, dimensional inspection, surface treatment where required, final      inspection, and export packing.

Q8: Do you follow EN1090 requirements?

We provide products according to applicable international standards and requirements, including EN1090-related      requirements where relevant to the ordered product. EN 1090-2 specifies technical requirements for the      execution of structural steelwork, including fabricated steel components and welding-related requirements.      :contentReference[oaicite:6]{index=6}

Q9: Can steel formwork be used with scaffolding?

Yes, formwork projects may use scaffolding, supports, working platforms, and other construction accessories.      However, each component should be selected and installed according to the project's engineering and safety      requirements.

Q10: How do you pack steel formwork for overseas delivery?

Depending on the product size and shipping method, we can use steel frames, bundles, or export-standard      packaging. The packing plan is discussed according to loading, handling, container space, and destination      requirements.

Q11: What payment terms do you accept?

We can support T/T and L/C payment terms, subject to the final quotation and contract. For customized projects,      commercial terms are normally confirmed after technical specifications and quantities are finalized.

Q12: Can I send my own drawings?

Yes. Customer drawings are very helpful, especially for customized steel formwork. With drawings, we can better      understand the required dimensions, panel arrangement, connections, and project conditions before discussing      production.

Steel Plate Formwork Product Information at a Glance

Final Thoughts from the Manufacturer

I have always believed that good formwork should make construction easier, not more complicated.      Steel Plate Formwork is a simple idea, but a reliable system requires careful attention to      steel materials, fabrication, welding, dimensions, connections, installation, inspection, and maintenance.

For contractors who need Reusable Steel Formwork Panels, heavy-duty steel formwork, steel Wall Formwork      panels, or a customized steel plate formwork system, the right solution starts with the project itself.

At Rizhao Fenghua Scaffolding Co., Ltd., we can review your drawings and requirements before production.      We can discuss panel dimensions, quantities, connections, customization, packaging, delivery schedule, and      applicable standards based on your actual construction needs.

Our goal is not simply to manufacture a steel panel. We want to provide a formwork system that is practical      for the contractor, suitable for the project, and prepared for real construction conditions.

If you are looking for a Steel Plate Formwork manufacturer for residential construction,      commercial buildings, bridges, infrastructure, or industrial projects, send us your project drawings or basic      requirements. We can start from there and work toward a suitable customized solution.

Technical Reference Notes

The technical information in this article is provided for general product-selection and construction-planning      purposes. It should not replace project-specific structural calculations, approved formwork drawings, method      statements, or instructions from qualified engineers and site safety professionals.

ACI Committee 347 develops guidance for concrete formwork, including formwork design, construction, materials,      performance, and related engineering considerations. Its current published resources include ACI PRC-347-14      Guide to Formwork for Concrete, reapproved in 2021. :contentReference[oaicite:7]{index=7}

ACI's design guidance covers vertical and horizontal loads, construction loads, safety factors, formwork      accessories, drawings, stability, inspection, and removal. These factors should be reviewed when preparing      an actual formwork design. :contentReference[oaicite:8]{index=8}

For structural steel fabrication, EN 1090-2 specifies technical requirements for the execution of structural      steelwork and manufactured steel components, including relevant fabrication and welding requirements.      :contentReference[oaicite:9]{index=9}
