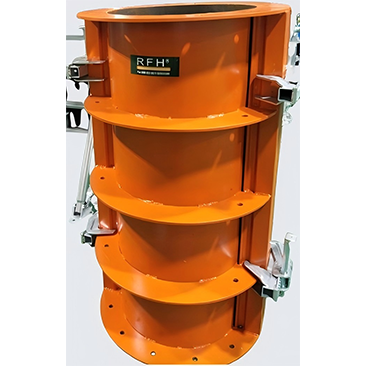

Steel Circular Formwork for Concrete

1. What Is Steel Circular Formwork for Concrete?

Steel Circular Formwork for Concrete is a reusable steel forming system designed to create      round or curved concrete structures. Instead of using several flat panels and trying to make them approximate      a circle, the formwork is built around the required circular geometry. The result is a more controlled forming      surface and a cleaner installation process.

In simple terms, the formwork works like a temporary mold. Reinforcing steel is placed inside the planned      structure, the circular steel form is installed around it, and concrete is then poured into the space between      the formwork and reinforcement. Once the concrete reaches the required condition and the approved stripping      procedure is followed, the formwork can be removed and prepared for the next section.

This basic idea sounds simple, but good circular formwork needs careful engineering. A circular column, water      tank, bridge pier, silo, shaft, or other curved structure can have different diameter, height, wall thickness,      reinforcement arrangement, concrete mix, pouring speed, and construction sequence. These factors affect the      design and use of the formwork.

I therefore do not recommend choosing a circular formwork system only by looking at the panel appearance.      Before production, I prefer to understand the actual project requirements. A good system should fit the job,      rather than forcing the job to fit a standard product.

Typical Applications

• Round reinforced concrete columns

• Circular bridge piers and infrastructure structures

• Water treatment tanks and storage tanks

• Silos and industrial structures

• Concrete shafts and vertical structures

• Curved architectural concrete structures

• Industrial plant construction

• Commercial and residential projects with circular concrete elements

ACI's guide to Concrete Formwork also treats formwork as a design and construction system rather than simply      a collection of panels. Its guidance covers formwork drawings, vertical and horizontal forces, accessory      capacity, construction, safety, materials, inspection, and special structures. :contentReference[oaicite:1]{index=1}

2. How Does Circular Steel Formwork Work?

The working principle of a steel circular Concrete Formwork System is straightforward.      The steel panels are assembled around the reinforcement cage or prepared construction area according to the      designed diameter. The panels are connected and supported so that they maintain the required shape during      concrete placement.

The first important step is positioning. The centerline of the structure needs to be confirmed before the      formwork is installed. If the center point is wrong, the entire circular geometry can shift. This is why      site preparation, setting-out, and checking are just as important as the quality of the steel panels.

After positioning, the formwork sections are connected. Depending on the system design, connection hardware,      stiffeners, supports, working platforms, ties, and other accessories may be used. The exact arrangement      depends on the diameter, height, concrete pressure, and engineering design.

Concrete is then placed into the form. During this stage, the fresh concrete creates pressure against the      formwork. The formwork must remain stable and maintain its designed geometry while the concrete is being      placed and consolidated.

This is one reason I always tell customers not to focus only on steel thickness. Thickness is important, but      the complete structural arrangement matters too. Panel geometry, stiffeners, connection points, supports,      welding quality, and load distribution all contribute to the performance of a circular formwork system.

After the concrete has reached the required condition, the formwork can be released according to the project's      approved procedure. The panels are cleaned, checked, and prepared for another pour. Proper cleaning and storage      are especially important when the system is intended for repeated use.

Basic Working Sequence

1. Review drawings and project requirements.

2. Confirm the required diameter and forming height.

3. Prepare the foundation and reinforcement.

4. Set out the centerline and circular position.

5. Assemble and position the steel circular formwork.

6. Install required connections, supports, and accessories.

7. Check alignment, dimensions, and stability.

8. Place and consolidate concrete according to the project method.

9. Allow the concrete to reach the required condition before stripping.

10. Remove, clean, inspect, and prepare the panels for reuse.

The actual installation and removal sequence must always follow the project's engineering documents and the      instructions of the responsible construction professionals. Formwork design involves construction loads,      stability, safety factors, and site conditions, so a general website description should not replace project-      specific engineering calculations. :contentReference[oaicite:2]{index=2}

3. Main Features of Our Steel Circular Formwork System

From my experience working with construction equipment, the best formwork is not necessarily the most      complicated one. Contractors usually want something that is strong, easy to understand, practical to install,      and capable of being reused. That is the direction we follow when developing and manufacturing our      Steel Circular Formwork for Concrete.

Stable Steel Structure

Steel provides a strong structural base for reusable formwork. Properly designed steel frames and stiffeners      help the panels maintain their intended shape during construction. This is particularly useful for projects      where the same forming system needs to be used repeatedly.

Controlled Circular Geometry

Circular construction requires more than simply bending a flat sheet. The forming surface and supporting      structure need to work together to create the required radius. We can manufacture circular formwork according      to project drawings and required dimensions instead of treating every project as a one-size-fits-all job.

Reusable Design

One of the biggest practical advantages of steel formwork is reuse. When panels are properly handled, cleaned,      inspected, and stored, they can be used for multiple construction cycles. The number of possible reuse cycles      depends heavily on the design, site conditions, handling method, cleaning, maintenance, and project requirements.

Flexible Installation

Circular steel formwork can be assembled in sections, which can make transportation and site handling easier.      The exact panel arrangement depends on the diameter and design. For larger projects, lifting and installation      procedures should be planned together with the formwork layout.

Suitable for Different Construction Fields

We supply formwork for residential construction, commercial buildings, bridges, infrastructure, industrial      plants, and other concrete projects. Where the project includes circular or curved concrete elements, a steel      circular formwork solution may be worth considering.

4. Technical Advantages and Project Considerations

When selecting steel circular formwork for concrete columns or other round structures, I      recommend looking at the complete construction process instead of comparing one specification at a time.      The right system should make sense technically and financially.

Diameter and Radius

Diameter is normally one of the first parameters we ask about. A different diameter changes the panel geometry,      connection arrangement, handling method, and sometimes the required support system. For custom projects, we      normally work from the customer's drawings or detailed project requirements.

Forming Height

The height of each forming lift affects installation, concrete placement, access, and stripping. A taller      forming section can reduce the number of construction joints, but it may also require more careful planning      for lifting and stability.

Concrete Pressure

Fresh concrete creates pressure on vertical formwork. The actual pressure depends on several factors, including      concrete properties, placement speed, temperature, vibration, and construction method. This is why a formwork      system should not be selected based only on the expected concrete volume.

ACI's formwork guidance specifically addresses vertical and horizontal forces, construction loads, safety      factors, material properties, and stability. :contentReference[oaicite:3]{index=3}

Surface Quality

The quality of the form-facing surface can affect the final concrete appearance. If the project requires      architectural concrete or a controlled surface finish, the formwork design, facing material, joints, release      agent, concrete placement, and vibration process all need to be considered together.

ACI also publishes dedicated guidance on formed concrete surfaces, including surface finish expectations,      formwork selection, layout, construction, and evaluation. :contentReference[oaicite:4]{index=4}

Installation and Handling

A formwork panel can be strong but still be inconvenient if it is difficult to move or assemble. For this      reason, we consider panel size, lifting points, connections, access, and transportation when discussing a      customized system with customers.

5. Where Is Steel Circular Formwork Used?

Circular concrete construction appears in more places than many people expect. When I review customer drawings,      I often see round structures in projects ranging from small commercial buildings to major infrastructure.      The forming method changes according to the project, but the basic requirement is the same: create a stable      circular shape and keep it in position while the concrete is placed.

Bridge Piers and Infrastructure

Bridges often use reinforced concrete piers with circular or near-circular sections. These structures may be      tall and require repeated forming operations. A reusable steel circular formwork system can be useful when many      similar piers are being constructed.

Water Tanks and Treatment Structures

Circular tanks are common in water treatment, storage, and industrial facilities. Depending on the design,      circular Wall Formwork can help create consistent curved surfaces while supporting a repeatable construction      process.

Silos and Industrial Plants

Grain silos, material storage structures, industrial tanks, and similar facilities can require large circular      concrete sections. These projects often place strong emphasis on geometry, repeatability, and construction      efficiency.

Residential and Commercial Buildings

Round columns are used in hotels, shopping centers, office buildings, public buildings, and modern residential      projects. For these applications, appearance may be just as important as structural performance. A controlled      forming surface can help contractors achieve a more consistent concrete finish.

Industrial and Energy Projects

Industrial construction can include circular foundations, columns, tanks, shafts, and other structures.      Depending on the project, steel circular formwork can be designed around specific dimensions and construction      requirements.

6. Our Manufacturing Process for Steel Circular Formwork

I believe the manufacturing process matters because a drawing only becomes a useful product after every      production step is controlled. For our Steel Circular Formwork for Concrete, we follow a      production process that covers material preparation, forming, welding, assembly, inspection, finishing, and      packing.

1. Drawing Review

We first review the customer's drawings or project requirements. Important information includes diameter,      height, panel arrangement, connection requirements, reinforcement position, construction sequence, and any      special site conditions.

2. Material Preparation

Steel materials are prepared according to the approved production requirements. Dimensions and material      condition are checked before the manufacturing process continues.

3. Cutting and Forming

Components are cut and prepared according to the production drawings. Circular components require controlled      forming so the finished panel can achieve the intended radius and fit with the corresponding sections.

4. Welding

Welding connects the structural components and stiffening members. Our factory uses professional welding      equipment and automated welding lines for suitable production operations. Welding quality is important because      the panel needs to remain stable during repeated construction cycles.

Our company follows an ISO9001 quality management approach and provides products manufactured according to      applicable customer requirements and international standards, including EN1090-related welding requirements      where applicable to the ordered product and project.

5. Assembly and Dimensional Inspection

After major fabrication is completed, components are checked and assembled as required. We pay attention to      dimensions, connections, alignment, weld quality, surface condition, and other project-specific requirements.

6. Surface Treatment and Final Inspection

The final surface treatment depends on the product specification and customer requirements. Before shipment,      the finished formwork is inspected to confirm that the supplied components correspond with the approved order.

7. Export Packing

Formwork components are packed according to their size, weight, and shipping requirements. Steel frames,      bundles, and export-standard packaging can be used to help protect the products during transportation.

Our standard production lead time is usually around 30–60 days, depending on order quantity and customization      requirements. For projects with special dimensions or complex configurations, I recommend confirming the      production schedule before placing the order.

7. Why Choose Rizhao Fenghua for Steel Circular Formwork?

When purchasing construction formwork from overseas, the supplier's manufacturing ability is just as important      as the product specification. A product page can show a nice photograph, but what matters to a contractor is      whether the factory can understand drawings, manufacture consistently, control quality, pack the goods properly,      and communicate clearly during the project.

This is where we focus our effort.

Long Manufacturing Experience

Rizhao Fenghua Scaffolding Co., Ltd. was established in 1953. We have built our business around formwork,      scaffolding systems, and construction accessories, rather than treating these products as a short-term trading      business.

80,000 m² Manufacturing Facility

Our factory in Rizhao, Shandong, covers approximately 80,000 m² and includes professional production      workshops, automated welding lines, and manufacturing equipment. This gives us a practical production base for      standard products as well as customized orders.

Customization Based on Drawings

Circular construction rarely follows one universal size. Customers can provide drawings, dimensions, project      information, or technical requirements, and we can review the requirements for a suitable customized solution.

Quality Management

Our manufacturing process operates under ISO9001 quality management. Our company also works with international      standards and certifications including EN1090, EN74, and CE according to applicable products and requirements.      We believe certification should support real production control rather than simply appear on a brochure.

Global Export Experience

Our products have been exported to 126 countries and regions. International projects often involve different      packing, documentation, payment, inspection, and logistics requirements. Our export experience helps us      understand these practical details.

Flexible Logistics

Depending on the destination and project schedule, goods can be shipped by sea, rail, or other suitable      international logistics methods. We also provide export-oriented packaging using steel frames, bundles, or      other suitable methods.

Payment terms can include T/T and L/C, subject to the final contract. For customized orders, I recommend      confirming the drawings, specifications, inspection requirements, packaging, lead time, and payment terms      before production begins.

8. Steel Circular Formwork for Concrete: Frequently Asked Questions

Q1: What is Steel Circular Formwork for Concrete used for?

It is mainly used to form round or curved concrete structures such as circular columns, bridge piers, tanks,      silos, shafts, industrial structures, and architectural concrete elements. The actual suitability depends on      the project's structural design and construction method.

Q2: Can you customize circular steel formwork?

Yes. We can review customized requirements based on customer drawings, dimensions, diameter, forming height,      connection requirements, and project conditions. For a quotation, I recommend sending the latest drawings or      providing the key dimensions first.

Q3: What information should I provide before requesting a quotation?

The most useful information includes required diameter, forming height, concrete structure type, number of      units, expected reuse cycles, drawings, project location, preferred delivery schedule, and any specific      standards or inspection requirements.

Q4: Can steel circular formwork be reused?

Yes. Reusability is one of the main practical benefits of a properly designed steel system. However, the actual      service life and number of reuse cycles depend on handling, cleaning, storage, concrete conditions, installation,      stripping, maintenance, and the design of the formwork itself.

Q5: Is steel circular formwork suitable for bridge piers?

It can be suitable for circular bridge piers when the system is properly designed for the project. Bridge      construction involves significant engineering and construction-load considerations, so the formwork should be      selected and verified according to the project's drawings, loads, installation method, and safety requirements.

Q6: Can you manufacture large-diameter circular formwork?

Customized circular formwork can be considered for large-diameter applications. The practical solution depends      on the required diameter, panel size, lifting equipment, transportation restrictions, forming height, and      construction sequence. We review these factors before confirming a manufacturing proposal.

Q7: What standards do your products follow?

Our company operates under ISO9001 quality management and supplies products according to applicable international      requirements, including EN1090, EN74, and CE certifications where relevant to the ordered products. The exact      standard and certification requirements should be confirmed according to the product type and destination market.

Q8: How long is the production time?

Our usual production lead time is approximately 30–60 days. The actual schedule depends on order quantity,      customization, drawing approval, production capacity, inspection requirements, and other project details.

Q9: How do you pack steel circular formwork for export?

We can use steel frames, bundles, or export-standard packaging depending on the product configuration and      transportation requirements. The purpose is to keep components organized and reduce the risk of damage during      loading, handling, and international transportation.

Q10: Do you provide complete scaffolding and formwork solutions?

Yes. In addition to steel formwork, we manufacture and supply Aluminum Alloy Formwork, ring lock scaffolding,      Cuplock Scaffolding, Frame Scaffolding, adjustable supports, and construction accessories. This allows us to      support projects that require more than one type of temporary construction system.

Conclusion: A Practical Choice for Circular Concrete Construction

I see Steel Circular Formwork for Concrete as a practical engineering tool rather than just      another construction product. When the project requires round columns, bridge piers, tanks, silos, shafts, or      other circular concrete structures, the forming system has to match the geometry and the construction method.

A well-designed steel circular formwork system can provide a stable forming surface, repeatable geometry,      flexible installation, and the potential for multiple construction cycles. But the final result depends on      more than the formwork itself. Drawings, concrete placement, reinforcement, site preparation, alignment,      bracing, inspection, stripping, and maintenance all play important roles.

At Rizhao Fenghua Scaffolding Co., Ltd., we combine long-term manufacturing experience, an 80,000 m² factory,      automated welding equipment, ISO9001 quality management, international standards, and global export experience      to provide practical formwork and scaffolding solutions.

If you are sourcing steel circular formwork for concrete columns, circular steel      concrete formwork, reusable circular formwork, or a customized steel      circular formwork system, send us your drawings and project requirements. We can review the required      dimensions, construction conditions, quantity, customization details, packing requirements, and delivery      schedule before preparing a suitable quotation.

Our goal is simple: make the formwork practical to manufacture, straightforward to install, reliable in      construction, and suitable for the real conditions of the project.

Product Information at a Glance

Reference and Engineering Notes

The technical discussion in this page is intended for product selection and general project understanding.      It is not a substitute for project-specific structural calculations, formwork drawings, method statements,      or approval by the responsible engineer and construction team.

The American Concrete Institute's ACI PRC-347-14(21) Guide to Formwork for Concrete identifies safety, quality,      and economy as key objectives and provides guidance related to formwork design, construction, materials,      construction loads, inspection, and removal. :contentReference[oaicite:7]{index=7}

ACI's materials also emphasize that formwork planning should consider vertical and horizontal forces,      construction loads, safety factors, material properties, stability, construction practices, and inspection.      These considerations should be reviewed by qualified project professionals for actual construction work.      :contentReference[oaicite:8]{index=8}
