Ringlock Scaffolding Standard

When I look at a Ringlock Scaffold System, I always start with the vertical standard. It may look like a simple steel tube with welded rings, but it is one of the most important parts of the entire structure. The quality, dimensions, welding, surface treatment, and connection points of the Ringlock Scaffolding Standard all affect how the complete scaffold system comes together.

At Rizhao Fenghua Scaffolding Co., Ltd., we manufacture formwork, Scaffolding Systems, and construction accessories for customers in global construction markets. Our product range includes Ringlock Scaffolding Standards, ringlock ledgers, diagonal braces, base jacks, platforms, Cuplock Scaffolding, Frame Scaffolding, Steel Formwork, and Aluminum Alloy Formwork.

Our manufacturing experience goes back to 1953. Today, our factory in Rizhao, Shandong, covers approximately 80,000 square meters and includes professional workshops, production equipment, and automated welding lines. We work with customers who need standard scaffold components as well as project-specific configurations.

In my experience, buying a vertical scaffold standard is not simply about finding a steel tube at the lowest price. The component has to match the rest of the system. Its length, diameter, wall thickness, ring position, connection details, welding quality, and surface finish all need to work together with the other components.

That is why I recommend looking at the Ringlock Scaffolding Standard as part of a complete system rather than as an isolated product.

1. What Is a Ringlock Scaffolding Standard?

A Ringlock Scaffolding Standard is the main vertical member used in a modular ringlock scaffold system. It carries vertical loads through the scaffold structure and provides connection points for horizontal ledgers, diagonal braces, and other components.

The most recognizable feature is the series of circular steel rings welded to the standard at set intervals. These rings create connection nodes. Depending on the system design, horizontal and diagonal members can be connected to the same node, allowing the scaffold to form a stable three-dimensional structure.

Think of the standard as the backbone of the scaffold. The ledgers connect one standard to another, the braces help control movement, and platforms create working surfaces. Without properly manufactured vertical standards, the rest of the system cannot perform as intended.

A typical ringlock scaffold standard may be manufactured in several lengths to suit different scaffold heights and configurations. Customers may also require different tube sizes, wall thicknesses, ring spacing, surface treatments, or connection details according to the target market and project requirements.

There is an important point here: a product name alone does not define its safe load capacity. The allowable load of a complete scaffold depends on many factors, including component dimensions, steel properties, connection design, scaffold height, bay size, bracing, ties, foundation conditions, platform arrangement, and how the scaffold is erected.

For this reason, I do not recommend choosing a heavy duty Ringlock Scaffolding Standard based only on marketing descriptions. The complete technical specification and project design should always be checked.

Basic Role of the Vertical Standard

Source: General component functions are based on common modular scaffolding system design. Actual component use and structural capacity must follow the manufacturer's technical documentation and project-specific engineering.

2. How Does a Ringlock Scaffold Standard Work?

The working principle is straightforward. The Ringlock Scaffolding Standard stands vertically and connects with horizontal and diagonal members through its welded ring nodes.

During assembly, standards are positioned on suitable bases or adjustable jacks. Base Collars or other starting components may be used according to the system design. Ledgers are then connected between standards to establish the working bay. Diagonal braces can be installed where required by the scaffold design.

The ring connection is what makes the system different from ordinary tube-and-coupler scaffolding. Instead of depending on a separate clamp for every main connection, the ringlock system has connection points built into the vertical standards.

The ledger or brace head is placed into the appropriate opening in the ring. A wedge is then secured to lock the connection. Once multiple components are connected, the scaffold becomes a three-dimensional framework.

This design makes the system quite flexible. A standard can connect with several members at the same node, allowing different scaffold layouts. This is useful when the building has corners, changes in direction, different floor levels, or areas that require special access.

However, fast connection does not mean that assembly can be done without a proper plan. Scaffold erection must be performed by trained workers and according to the applicable regulations and manufacturer's instructions.

For example, OSHA requires supported scaffolds and their components to support their own weight plus at least four times the maximum intended load under the applicable U.S. construction requirements. OSHA also addresses requirements for stability, bracing, access, platforms, fall protection, and inspection. These requirements apply to U.S. workplaces and should not automatically be treated as the rules for every country. OSHA Scaffolding General Requirements.

In other words, the standard is only one part of a safe scaffold. The whole structure needs to be correctly designed and erected.

Connection Quality Matters

When I inspect or discuss a Ringlock Scaffolding Vertical Standard, I pay close attention to the ring connection area. The ring needs to be positioned accurately and welded properly because it is the point where several other scaffold members may connect.

If dimensions are inconsistent, workers can experience problems during assembly. If welding is poor, the connection may not perform as intended. If surface treatment is uneven, corrosion protection may also be affected.

These details may seem small, but construction workers notice them quickly on a real jobsite.

3. Main Features of Our Ringlock Scaffolding Standard

We design and manufacture our Steel Ringlock Scaffolding Standard with the complete scaffold system in mind. The goal is simple: the components should fit, connect, and work together consistently.

1. Modular Connection Design

The ring node allows the vertical standard to connect with horizontal and diagonal members. This supports different scaffold configurations and makes the system suitable for projects with changing layouts.

2. Steel Construction

Steel provides the basic structural strength required for scaffolding applications. The actual performance depends on the selected steel grade, tube dimensions, connection design, and project configuration.

3. Consistent Dimensions

Dimensional accuracy is particularly important for modular scaffolding. When standards have consistent lengths and connection positions, ledgers and braces can be assembled more smoothly.

4. Reliable Welded Rings

The welded rings are a key feature of the system. We pay attention to ring positioning and welding during production because the connection node is used repeatedly during scaffold assembly and dismantling.

5. Surface Treatment Options

Depending on customer requirements, galvanized Ringlock Scaffolding Standard products can be supplied with suitable corrosion-resistant surface treatment. Hot-dip galvanizing is commonly considered when scaffolding will be exposed to outdoor environments or needs longer service life.

Painted or other finishes may also be considered according to the project environment and buyer requirements.

6. Reusable Modular Components

A major benefit of modular scaffold components is that they can be reused on different projects when they remain in acceptable condition. Before reuse, components should be checked for deformation, corrosion, damaged welds, and other defects.

7. Custom Manufacturing

Different markets may use different component specifications. We can discuss tube dimensions, lengths, ring arrangements, surface treatment, packing, and other requirements based on customer drawings and project specifications.

4. Ringlock Scaffolding Standard Technical Considerations

When customers ask me about technical specifications, I usually explain that there is no single specification that fits every ringlock scaffold project.

The most important parameters normally include the standard length, outside diameter, wall thickness, steel material, ring spacing, ring dimensions, connection design, surface treatment, and end configuration.

Source: Technical categories are based on common modular scaffold procurement and engineering practice. Exact dimensions and load ratings should be taken from the specific manufacturer's product drawing rather than inferred from this general guide.

For buyers sourcing Ringlock Scaffolding Standard from China, I recommend asking the supplier for a complete product drawing. The drawing should clearly identify dimensions, material specifications, connection details, tolerances, surface treatment, and applicable standards.

This simple step can prevent many problems later.

Ring Spacing and System Compatibility

Ring spacing is one of the details buyers should not overlook. If a project uses components from different manufacturers, the connection geometry may not always match.

That is why I recommend confirming compatibility before mixing ringlock components from different suppliers. A standard may look similar to another product but still have differences in ring dimensions, connection openings, wedge geometry, or component tolerances.

For large projects, purchasing the main components as a coordinated system can make installation and future replacement much easier.

5. Ringlock Scaffolding Standard vs Other Vertical Scaffold Systems

When customers compare scaffolding products, they often ask whether ringlock is better than frame or cuplock scaffolding. My answer is usually: it depends on the job.

Each system has its own connection design and practical advantages. Ringlock is particularly attractive when a project needs a flexible modular layout. Frame scaffolding can be convenient for regular facade work, while cuplock systems use a different modular connection approach.

Source: General industry comparison. This table is not a structural load comparison and should not be used to select a scaffold system without project-specific engineering.

For a contractor working on a regular low-rise facade, a frame system may be perfectly practical. For a bridge, industrial plant, or complex structure with many changes in direction, the flexibility of Ringlock Scaffolding may become much more valuable.

The right decision should consider project geometry, working height, load requirements, access, local regulations, available labor, component inventory, transportation, and budget.

6. Manufacturing Process of Ringlock Scaffolding Standard

As a manufacturer, I know that the finished appearance of a scaffold standard does not tell the whole story. Manufacturing consistency is what makes a modular system easier to use from one project to another.

Our factory has approximately 80,000 square meters of production space and uses professional workshops and automated welding lines. The manufacturing process is organized around several basic stages.

Raw Material Inspection

Steel materials are checked before production. The material specification, dimensions, and other required information are reviewed according to the product requirements.

Tube Cutting

Steel tubes are cut to the required lengths. Accurate cutting is important because the finished standard needs to match the planned scaffold dimensions.

Ring Preparation

Ring components are prepared according to the required design. The position and orientation of the rings need to be controlled carefully so that the finished standard works correctly with the ledgers and braces.

Assembly and Welding

The rings are positioned on the vertical tube and welded. Welding is a critical production step because the connection node will be used repeatedly during scaffold assembly and dismantling.

Our company follows quality management procedures and applies welding practices aligned with EN1090 requirements. The exact certification and technical requirements applicable to an order depend on the destination market and product specification.

Surface Treatment

After fabrication and inspection, suitable surface treatment is applied according to the order. Galvanizing is a common choice for customers looking for additional corrosion protection.

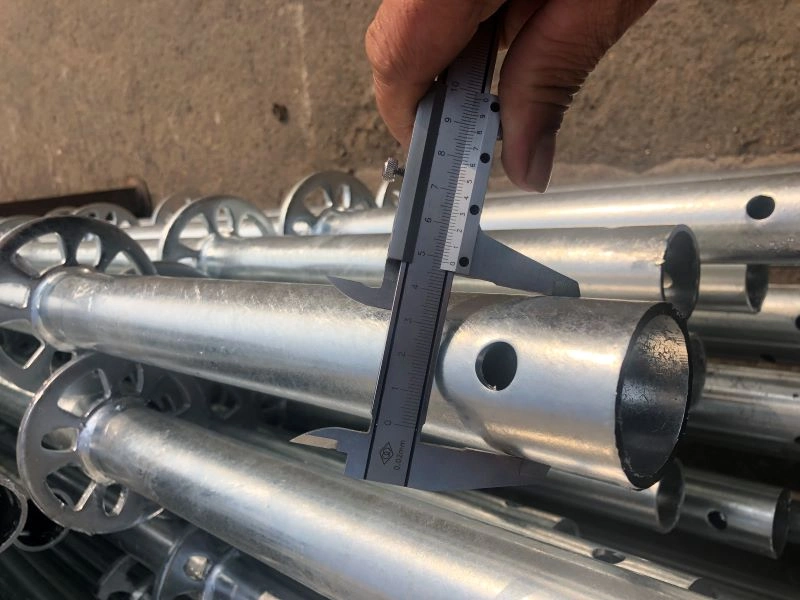

Final Inspection

Finished standards are checked for dimensions, welding condition, appearance, and other specified requirements. Inspection is carried out within our ISO9001 quality management system.

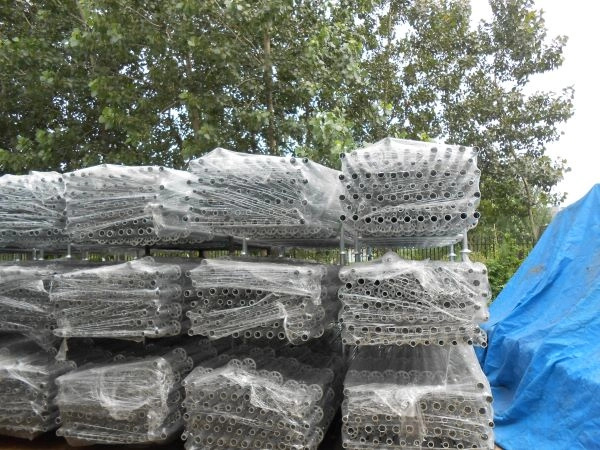

Packing

Finally, components are organized and packed for transportation. We can use bundles, steel frames, or export-standard packing according to the component type and customer requirements.

Source: Manufacturing stages reflect the stated manufacturing capabilities and general scaffold production practice. Specific inspection procedures and acceptance criteria should be confirmed in the purchase specification.

7. Applications of Ringlock Scaffolding Standards

A Ringlock Scaffolding Standard is used wherever a modular scaffold system is required. Because the system can be configured in different directions and heights, it is suitable for many types of construction and maintenance work.

Residential Buildings

Residential construction often needs external access for masonry, plastering, painting, facade work, window installation, and finishing. Ringlock standards can form the vertical framework for these working platforms when properly designed.

Commercial Construction

Hotels, office buildings, shopping centers, and other commercial projects can have complicated layouts and different construction stages. Modular scaffolding provides flexibility as the work moves from one section to another.

Bridges and Infrastructure

Bridge projects frequently have unusual shapes and difficult access areas. Ringlock systems can be configured around structural sections to provide temporary work platforms and access, subject to engineering and site requirements.

Industrial Plants

Industrial facilities contain tanks, pipes, machinery, steel structures, and other obstacles. A modular system can be useful for installation, inspection, painting, maintenance, and repair activities.

Maintenance Projects

Maintenance work often has a shorter schedule than new construction. Contractors may need to assemble access structures around existing equipment without interfering too much with the surrounding area. The modular nature of ringlock scaffolding can be useful in these situations.

Infrastructure Maintenance

Transport facilities, public structures, utility projects, and other infrastructure applications can also require temporary access. The final arrangement should always be checked by a qualified professional before workers use the scaffold.

8. Why Choose Rizhao Fenghua as Your Ringlock Scaffold Manufacturer?

When I compare suppliers, I look at more than a product catalog. For an international construction project, manufacturing capacity, quality management, customization, packing, delivery, and communication all matter.

Rizhao Fenghua Scaffolding Co., Ltd. has been involved in manufacturing since 1953. Our experience covers building formwork, scaffolding systems, and construction accessories.

Experienced Manufacturing Background

Our long manufacturing history gives us practical experience with construction product production and export requirements. We understand that scaffolding components have to be consistent because they are assembled as a system.

Large Manufacturing Facility

Our factory covers approximately 80,000 square meters and includes professional workshops and automated welding lines. This allows us to handle both standard orders and larger-volume production requirements.

Broad Construction Product Range

In addition to Ringlock Scaffolding Standards, we supply complete ringlock systems, cuplock scaffolding, frame scaffolding, steel formwork, aluminum alloy formwork, adjustable supports, and other construction accessories.

For customers purchasing several types of construction products, having one manufacturing partner can simplify communication, inspection, packing, and shipping.

Quality Management

Our production is managed under an ISO9001 quality management system. Our company also states compliance with EN1090 welding standards and international requirements including EN74 and CE according to applicable products and market requirements.

EN 74 is relevant to scaffold and falsework components such as couplers, spigot pins, and baseplates. The standard addresses areas including mechanical performance, testing, assessment, and production control. Buyers should confirm the exact standard edition and certification scope required for their market before ordering. BSI EN 74-1 information.

International Export Experience

Our products have been exported to 126 countries and regions. This means we regularly work with international customers who may have different packaging, documentation, product specification, and delivery requirements.

Customization Based on Drawings

We can review customer drawings and project specifications when a standard catalog configuration is not enough. This is particularly useful for larger construction projects where the customer needs a coordinated list of standards, ledgers, braces, platforms, base components, and accessories.

9. Buying Guide for Ringlock Scaffolding Standard

If you are sourcing a Ringlock Scaffolding Standard manufacturer, I suggest checking the following points before placing an order.

Check the Complete Specification

Ask for a product drawing rather than relying only on a product name. Confirm the tube diameter, wall thickness, length, ring spacing, ring design, steel grade, welding details, and surface treatment.

Confirm Compatibility

If you already have ringlock components in your warehouse, tell the supplier. The new standards need to match the existing ledgers, braces, platforms, and connection geometry.

Ask About Quality Control

Find out how the manufacturer controls material, dimensions, welding, surface treatment, and final inspection. A clear inspection process is a good sign that the supplier takes consistency seriously.

Check the Certification Scope

Do not simply ask whether a supplier “has CE” or “has EN certification.” Ask which exact product, standard, certificate, and scope the documentation covers. This is especially important when purchasing for regulated international markets.

Consider Packing and Container Loading

Scaffolding is heavy and takes up significant shipping space. Good packing can make loading and unloading easier and help protect the components during transportation.

Plan for Spare Components

For large projects, I recommend considering a reasonable quantity of spare components. Standards, ledgers, braces, and other parts can be damaged or lost during repeated project use, so having replacement parts available can reduce downtime.

10. Ringlock Scaffolding Standard FAQ

What is a Ringlock Scaffolding Standard?

A Ringlock Scaffolding Standard is the vertical structural component of a modular ringlock scaffold system. It normally contains welded ring connection points for attaching ledgers, braces, and other components.

What is the purpose of the rings on a ringlock standard?

The rings provide connection nodes for horizontal and diagonal scaffold members. This allows several components to connect around the same vertical standard and helps create flexible three-dimensional scaffold structures.

Is the Ringlock Scaffolding Standard made of steel?

Yes. Ringlock standards are commonly manufactured from steel tubes and welded connection components. The exact steel grade, tube dimensions, and wall thickness should be confirmed in the product specification.

Are Ringlock Scaffolding Standards available in different lengths?

Yes. Modular scaffold systems normally use standards in different lengths to create different scaffold heights and configurations. Available lengths depend on the manufacturer's product range and customer requirements.

Can you provide galvanized Ringlock Scaffolding Standards?

Yes. Galvanized surface treatment can be discussed for customers who require additional corrosion protection. The suitable finish depends on the project environment, service conditions, and technical specification.

Can Ringlock Scaffolding Standards be customized?

Yes. We can discuss customized dimensions, connection details, surface treatment, packing, and other requirements according to customer drawings and project specifications.

How do I know whether a Ringlock Standard is compatible with my existing scaffold?

Provide the supplier with your existing component drawings or key dimensions. The tube size, ring dimensions, ring spacing, connection opening, wedge design, and other details should be compared before purchasing replacement components.

What standards are relevant to ringlock scaffolding?

The applicable standards depend on the market and product. Our company works with quality requirements including ISO9001 and EN1090 and offers products associated with EN74 and CE requirements where applicable. Buyers should confirm the exact standards required by the destination country and project.

How long is the production lead time?

Our standard production lead time is generally 30–60 days, depending on order quantity and customization requirements. The final schedule is confirmed according to the actual order.

How are Ringlock Scaffolding Standards packed for export?

We can use bundles, steel frames, or export-standard packaging according to the product and shipping requirements. For large orders, packing can also be planned around container loading and transportation conditions.

What payment terms do you support?

We support international payment methods including T/T and L/C. The final payment structure is confirmed in the sales contract.

Can you supply a complete Ringlock Scaffolding System?

Yes. In addition to vertical standards, we can supply related ringlock components and other construction products. Customers can provide drawings, quantities, or a component list so we can review the complete requirement.

Conclusion: Building a Better Scaffold Starts with the Standard

From my point of view, the Ringlock Scaffolding Standard is much more than a vertical steel tube. It is the main framework component that connects many parts of a modular scaffold system. Its dimensions, ring positions, welding quality, material, and surface treatment all influence how the complete system fits together.

For contractors and distributors, choosing the right standard means looking at the entire system. Compatibility, project requirements, local regulations, structural design, manufacturing quality, inspection, packing, and delivery all deserve attention.

At Rizhao Fenghua Scaffolding Co., Ltd., we combine long-term manufacturing experience with a large production facility, automated welding lines, ISO9001 quality management, international market experience, and a broad construction product range.

Our Ringlock Scaffolding Standards are designed for use with modular ringlock scaffold systems in residential construction, commercial buildings, bridges, infrastructure, industrial plants, and maintenance projects. We also support customized solutions based on customer drawings and project requirements.

Our normal production lead time is around 30–60 days, depending on order quantity and customization. Products can be packed using steel frames, bundles, or export-standard packaging and shipped by sea, rail, or other international logistics methods.

If you are looking for a reliable Ringlock Scaffolding Standard manufacturer or Ringlock Scaffolding supplier in China, send us your drawings, specifications, required quantities, surface treatment requirements, and destination market. We can review the details and help you build a suitable component and supply plan for your project.
