Ringlock Scaffold Ledger

When I talk about Ringlock Scaffolding, I often tell customers not to overlook the horizontal members. The vertical standards may get more attention because they form the main frame, but the Ringlock Scaffold Ledger is just as important to the way the system is assembled and maintained. It connects vertical standards at the required level and helps create a stable, organized scaffold structure.

At Rizhao Fenghua Scaffolding Co., Ltd., we manufacture Scaffolding Systems, building formwork, and construction accessories for customers in different markets. Our company was established in 1953, and our factory in Rizhao, Shandong, China, covers approximately 80,000 square meters. Over the years, we have developed production capabilities covering ringlock scaffolding, Cuplock Scaffolding, Frame Scaffolding, Steel Formwork, Aluminum Alloy Formwork, adjustable supports, and related accessories.

For me, a good Ringlock Scaffolding Ledger is not simply a steel tube with two connection heads. Its dimensions need to match the corresponding standards. The ledger ends need to be properly positioned and welded. The connection system needs to work smoothly. The surface treatment needs to suit the intended environment. And, for international projects, the packing and documentation need to make sense as well.

In this guide, I will explain what a Ringlock Scaffold Ledger does, how it connects to the ringlock system, what specifications buyers should check, how we manufacture and inspect the product, and where it is commonly used. I will also compare publicly available market specifications so that buyers can better understand why there is no single “standard size” that fits every ringlock system.

1. What Is a Ringlock Scaffold Ledger?

A Ringlock Scaffold Ledger is a horizontal component used in a Ringlock Scaffolding System. It connects vertical standards at selected levels and helps form the horizontal framework of the scaffold.

The basic design is quite easy to understand. A typical ringlock ledger consists of a steel tube with connection heads or ledger ends at both sides. Each end is designed to connect with a rosette on a compatible vertical standard. A wedge pin or similar locking mechanism secures the connection.

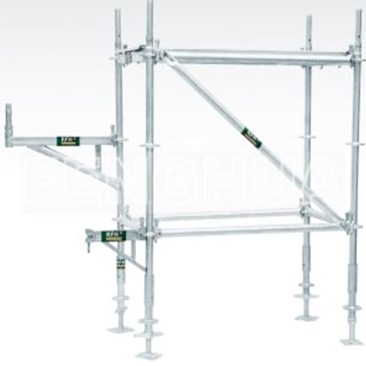

Once several ledgers are connected to the standards, the scaffold begins to take shape. The vertical standards provide the main upright members, while the ledgers create horizontal connections between them. Transoms, diagonal braces, base components, platforms, and other accessories can then be added according to the scaffold design.

That simple explanation is enough for someone who is new to scaffolding, but there is more to the product when you are actually buying it.

The ringlock ledger length determines the bay size of the scaffold. The tube diameter and wall thickness affect the component's weight and mechanical characteristics. The ledger head must fit the rosette correctly. Welding quality affects the connection between the tube and the end fitting. Surface treatment affects corrosion protection. All of these details matter when a project uses thousands of components.

Publicly available ringlock ledger specifications show that 48.3 mm outside-diameter tubes are widely used in commercial ringlock systems, with wall thicknesses commonly listed around 2.5–3.2 mm and other options available depending on the system. For example, one published manufacturer lists 48.3 × 2.75 mm tubing, while another lists 48.3 × 3.2 mm tubing for its ringlock ledgers. These figures are market references rather than universal requirements.

This is why I always recommend confirming the existing scaffold system before placing an order.

2. How Does a Ringlock Scaffold Ledger Work?

The working principle of a ringlock scaffold ledger is straightforward: connect, lock, and support the horizontal scaffold frame.

Step 1: Position the Vertical Standards

The vertical standards are installed according to the scaffold layout. Their spacing depends on the project design, required working area, loading conditions, platform arrangement, height, and other engineering considerations.

The rosettes welded to the standards provide connection points for the horizontal ledgers and diagonal braces. A ringlock system normally uses several connection directions at each rosette, allowing the scaffold to be assembled into different layouts.

Step 2: Insert the Ledger Heads

The two ends of the Ringlock Scaffold Ledger are placed into the appropriate rosette connection points on adjacent standards. The ledger length determines the distance between the standards in that bay.

This is where compatibility becomes important. A ledger may look almost identical to another product online, but the head shape, pin size, tube dimensions, or effective length can differ. If the component is intended to work with an existing system, these details should be checked before ordering.

Step 3: Secure the Connection

After the ledger heads are positioned in the rosettes, the locking wedge or pin is driven into place. The connection becomes part of the scaffold's horizontal framework.

In normal site practice, workers use the appropriate installation tool and follow the system manufacturer's erection instructions. A wedge should not be treated as a decorative part. It is part of the mechanical connection and needs to be correctly installed.

Step 4: Build the Horizontal Framework

Multiple ledgers are connected at the required scaffold levels. Together with standards, transoms, braces, platforms, and other components, they create the modular scaffold structure.

The ledger therefore has two very practical jobs. It defines the horizontal bay arrangement and provides a connection between vertical standards. It also helps keep the scaffold geometry organized as more levels are added.

However, I want to make one thing clear: the Ringlock Scaffold Ledger should never be considered a standalone safety component. The safety and load-bearing performance of a scaffold depend on the complete system, including the supporting ground, standards, ledgers, transoms, braces, ties, platforms, connections, erection method, inspection, and project-specific engineering.

3. Main Features of Our Ringlock Scaffold Ledger

When customers ask me what makes a good ledger, I usually break the answer into a few simple points. There is no need to use complicated language when the practical requirements are clear.

Strong Steel Tube

The main tube forms the body of the ledger. Steel is commonly selected because it provides the strength and durability needed for repeated construction use.

Different projects may specify different steel grades, wall thicknesses, or mechanical requirements. Our production can be arranged according to the customer's approved specification rather than assuming that one material grade is suitable for every market.

Accurate Effective Length

Ledger length is one of the first specifications I ask customers to confirm. A ringlock ledger is not normally selected by the overall steel tube length alone. The effective connection distance and the actual system dimensions need to be understood.

Public market data shows common European ringlock ledger lengths such as approximately 0.73 m, 1.09 m, 1.40 m, 1.57 m, 2.07 m, 2.57 m, and 3.07 m. Other markets use different bay lengths.

Reliable Ledger Heads

The ledger head is a small part, but it is critical to the connection. It must be positioned accurately at the end of the tube and welded properly.

If the head is poorly positioned, the ledger may be difficult to install. If the connection dimensions are inconsistent, the problem can become even more obvious when hundreds of ledgers are assembled together on a jobsite.

Secure Wedge Connection

The wedge pin locks the ledger head into the rosette. During production, we pay attention to the relationship between the head, pin, and tube so that the finished ledger works with the specified ringlock system.

Corrosion Protection

Many ringlock ledgers are hot-dip galvanized because scaffolding is frequently exposed to outdoor conditions. Zinc coating helps protect the steel surface from corrosion.

The final surface treatment should always be selected according to the project environment, customer requirements, local regulations, and expected service conditions. We can discuss galvanized or other specified finishes during the quotation stage.

Easy Handling

Construction workers handle scaffolding components repeatedly. A ledger that is unnecessarily heavy can increase manual handling effort, while one that is too light for the specified application may not meet the required design.

That is why I do not recommend comparing ledgers only by weight. Weight should be considered together with tube dimensions, steel grade, effective length, design requirements, and connection configuration.

4. Ringlock Scaffold Ledger Specifications: What Do Buyers Need to Check?

This is probably the most useful part of the buying process. If I receive an inquiry that only says “Ringlock Scaffold Ledger, 2 meters,” I still need more information before I can give a technically reliable quotation.

Here are the specifications I normally recommend confirming:

• Tube outside diameter: commonly 48.3 mm in many ringlock systems, but this should be confirmed.

• Wall thickness: commonly varies by system and customer requirement.

• Effective length: must match the bay spacing of the corresponding scaffold system.

• Steel grade: should follow the approved project or purchasing specification.

• Ledger head: must match the rosette and connection design.

• Wedge pin: needs to work correctly with the ledger head and rosette.

• Surface treatment: hot-dip galvanizing, painting, or another specified finish.

• Marking: customer logo, batch information, product code, or other identification if required.

• Packaging: bundles, steel frames, pallets, or another export packing method.

For buyers replacing an existing ringlock system, I strongly recommend sending a drawing or sample. It is usually much safer than trying to identify a component from a photograph.

Source: Publicly available ringlock ledger specifications from Youfa, Total Contec, and other industry suppliers. These values are included for market comparison and are not presented as a universal specification for every ringlock scaffolding system.

One useful point from this comparison is that there is no single ledger dimension that should automatically be called “the standard.” Different markets and system designs use different bay lengths and tube specifications.

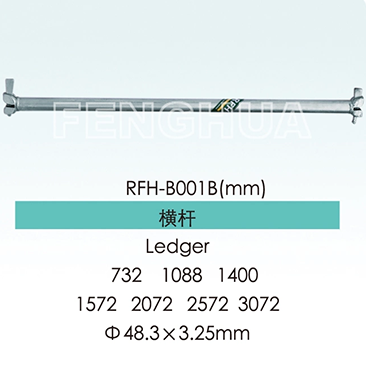

5. Ringlock Scaffold Ledger Size and Weight Comparison

Another common buyer question is weight. Weight can help with purchasing and shipping calculations, but it should not be used alone to judge whether a ledger is suitable.

For example, one published ringlock ledger range lists theoretical weights from about 3.2 kg for a 0.5 m ledger to about 14.6 kg for a 3.0 m ledger. Another published range gives approximately 2.9 kg for a 0.73 m ledger and 10.1 kg for a 3.07 m ledger. The difference comes from different tube wall thicknesses, connection components, and product designs.

Source: Publicly listed ringlock ledger specifications from Youfa/related published product information. Values are theoretical or listed product weights and should not be used as the guaranteed weight of Rizhao Fenghua products.

For an actual project, I would calculate the expected quantity and shipment weight from the final approved specification. If the order is large, even a small difference in component weight can have an effect on container loading and logistics planning.

6. Technical Standards and Quality Considerations

When customers ask us about international standards, I prefer to be precise. A standard applies to a defined type of product or system and has a specific scope. It should not be used as a general label for every scaffold component.

For example, BS EN 74-1:2022+A1:2025 covers certain couplers, spigot pins, and baseplates used in falsework and scaffolds. BSI states that the standard covers areas including materials, design requirements, strength classes, test procedures, assessment, and ongoing production control for the couplers within its scope.

EN 74 is therefore relevant to certain scaffold connection hardware, but a buyer should still confirm the exact scope and applicability to the product being purchased.

Similarly, the overall design and performance of temporary working scaffolds may involve other standards and local regulations. The exact requirements depend on the market, project, scaffold configuration, and intended use.

What We Focus on During Quality Control

At Rizhao Fenghua, we use an ISO9001 quality management system. For our scaffolding products, we focus on practical production control points such as:

• Raw material verification according to the agreed specification.

• Tube dimensions and cutting accuracy.

• Ledger length and component positioning.

• Ledger-head dimensions and alignment.

• Welding appearance and production consistency.

• Wedge and connection-component fit.

• Surface treatment and visible coating condition.

• Quantity and packing inspection before shipment.

For projects with special inspection requirements, customers can discuss inspection methods and documentation with our sales and technical teams before production. This is much easier than trying to solve a documentation problem after the goods have already been shipped.

7. How We Manufacture Ringlock Scaffold Ledgers

A Ringlock Scaffold Ledger looks simple when you hold one in your hand. But producing a large batch with consistent dimensions requires a controlled process.

1. Steel Tube Preparation

We begin with the steel tube specified for the order. The diameter, wall thickness, steel grade, and surface condition are checked against the production requirements.

For a large order, consistency from one batch to the next matters. If tube dimensions change unexpectedly, it can affect the finished weight, welding process, and overall product consistency.

2. Cutting

The tube is cut to the required length. The cutting process needs to be controlled because the ledger's final effective length depends on the relationship between the tube and its connection heads.

Small dimensional errors may not look serious when checking one component. On a large scaffold, however, repeated errors can accumulate across many bays.

3. Ledger Head Preparation

The ledger heads are prepared according to the specified ringlock system. The connection head needs to match the rosette and locking arrangement.

We pay particular attention to positioning because the head is not just an end cap. It is the part that transfers the ledger's connection into the scaffold standard.

4. Welding

The ledger head is welded to the steel tube. Welding needs to be consistent across the production batch. Our factory has automated welding lines and professional production workshops to support repeat manufacturing.

We also maintain welding processes aligned with applicable requirements, including EN1090-related requirements where relevant to the product and project specification.

5. Inspection

Finished ledgers are checked according to the applicable inspection plan. Dimensions, welding condition, connection areas, and appearance are among the practical points that can be inspected.

6. Surface Treatment

For galvanized products, the completed steel component receives hot-dip galvanizing according to the agreed production specification. The zinc coating helps protect the steel from environmental exposure.

7. Packing

After final inspection, ledgers are bundled or packed according to the shipping plan. Export orders may use steel frames, bundles, pallets, or other packaging methods depending on the order and container-loading requirements.

This process is one reason I recommend that buyers evaluate the supplier's manufacturing capability, not just the product photograph. For a large scaffolding order, production consistency is more important than making one attractive sample.

8. Applications of Ringlock Scaffold Ledger

The Ringlock Scaffold Ledger is used across many construction and temporary access applications because ringlock scaffolding itself is modular and flexible.

Residential Buildings

Residential construction can require scaffolding for structural work, masonry, exterior finishing, painting, installation, and maintenance. The ledger helps create the horizontal structure between the vertical standards.

Commercial Buildings

Hotels, offices, shopping centers, and mixed-use developments may have complicated building layouts. A modular ringlock scaffold can be arranged into different bay configurations when properly designed.

Bridge Construction

Bridge projects often need temporary access and working structures around piers, decks, and other structural elements. The modular nature of ringlock scaffolding can make it useful for these applications, subject to project-specific engineering.

Industrial Plants

Industrial facilities may require temporary access around equipment, tanks, pipelines, steel structures, and maintenance areas. Ringlock systems can be assembled and adjusted for different working conditions.

Infrastructure Projects

Infrastructure projects can involve roads, stations, tunnels, water facilities, and other large structures. The scaffold layout may change as the project moves from one construction stage to another.

Maintenance and Renovation

Ringlock scaffolding is also used for repair, inspection, painting, facade work, and maintenance. In these situations, easy connection and component compatibility can save time during repeated assembly and dismantling.

9. Why Choose Rizhao Fenghua as Your Ringlock Scaffold Ledger Manufacturer?

There are plenty of scaffolding suppliers in the market. So why should a buyer consider Rizhao Fenghua?

My answer is simple: we focus on manufacturing rather than only trading products.

Rizhao Fenghua Scaffolding Co., Ltd. was established in 1953. Our factory in Rizhao, Shandong, covers approximately 80,000 square meters and includes professional manufacturing workshops and automated welding lines.

Our product range covers ringlock scaffolding, cuplock scaffolding, frame scaffolding, adjustable supports, aluminum alloy formwork, steel formwork, and various construction accessories.

Long Manufacturing Experience

Our long operating history gives us experience with different construction products and international customers. More importantly, this experience is supported by an actual manufacturing base and established production processes.

Quality Management

We operate under ISO9001 quality management. Depending on the product and project, our manufacturing and products can also be supplied according to applicable international requirements such as EN74, EN1090, and CE-related requirements.

We always recommend confirming the exact certificate scope and applicable standard for the specific product rather than making broad claims.

Custom Production

Not every customer needs the same ringlock ledger. Some buyers need European bay lengths. Others need specifications for Southeast Asian or African markets. Some customers are replacing an existing system and need the new ledger to match their current standards.

We can review customer drawings, samples, dimensions, surface treatment, material requirements, marking, and packaging instructions before production.

Large-Order Capability

Scaffolding is often purchased in large quantities. A supplier needs to be able to produce thousands of similar components while maintaining consistent manufacturing conditions.

Our 80,000-square-meter factory, professional workshops, automated welding lines, and established production management provide the manufacturing foundation needed for international orders.

Global Export Experience

Our products have been exported to 126 countries and regions. This gives us practical experience with export packaging, shipping arrangements, international communication, and different customer requirements.

Our standard production lead time is usually 30–60 days, depending on order quantity and customization. We support T/T and L/C payment methods, and goods can be shipped by sea, rail, or other international logistics methods.

10. How to Order the Right Ringlock Scaffold Ledger

If you are preparing an inquiry, you do not need to write a complicated technical document. A clear specification sheet with the main points is usually enough.

I recommend sending us the following information:

1. Ringlock system type or manufacturer reference.

2. Required ledger effective length.

3. Tube outside diameter.

4. Wall thickness.

5. Required steel grade.

6. Ledger head and wedge design.

7. Surface treatment.

8. Required quantity.

9. Packaging requirements.

10. Delivery destination.

11. Applicable standard or inspection requirement.

12. Drawing or sample, if available.

If you do not know all of these specifications, that is not a problem. Send us your existing scaffold drawing, a product photo with dimensions, or a physical sample specification. We can review the information and determine which technical details need to be confirmed.

For customers who are purchasing a complete ringlock system, we can also discuss standards, ledgers, transoms, braces, Base Collars, adjustable bases, and other components so that the system can be supplied as a coordinated package.

11. Frequently Asked Questions About Ringlock Scaffold Ledger

What is a Ringlock Scaffold Ledger?

A Ringlock Scaffold Ledger is the horizontal member of a ringlock scaffolding system. It connects vertical standards through their rosettes and helps create the horizontal framework of the scaffold.

What is the common diameter of a ringlock ledger?

48.3 mm is widely listed in published ringlock ledger specifications, but this should not be treated as a universal requirement. Different systems may use different dimensions. Always confirm the diameter with the matching standard and system drawing.

What are common ringlock ledger lengths?

Published market examples include approximately 0.73 m, 1.09 m, 1.40 m, 1.57 m, 2.07 m, 2.57 m, and 3.07 m. Other lengths are also available for different regional systems and project layouts.

Is the Ringlock Scaffold Ledger galvanized?

It can be. Hot-dip galvanizing is a common surface treatment for steel ringlock scaffolding components. The required surface treatment should be confirmed according to the project environment and customer specification.

Can you customize the ledger length?

Yes. We can manufacture according to customer drawings and project specifications. The required tube dimensions, effective length, connection head, material, surface treatment, and packaging should be confirmed before production.

What steel is used for ringlock ledgers?

The material depends on the approved product specification. Public market examples include Q235 and Q355 steel grades, while other systems may specify different materials. We confirm the required steel grade with the customer before production.

Can a Ringlock Scaffold Ledger be used with another manufacturer's ringlock system?

It may be possible, but compatibility should never be assumed from the product name alone. Tube diameter, ledger head, rosette dimensions, wedge arrangement, effective length, and other interface details should be checked first.

What is the difference between a ledger and a transom?

Both are horizontal scaffold components, but they can have different positions and functions within a particular ringlock configuration. The ledger normally connects standards along the main scaffold bay, while a transom can provide transverse support, including support for platforms. The exact arrangement depends on the system design.

How do you control Ringlock Scaffold Ledger quality?

We use an ISO9001 quality management system and focus on material verification, dimensional control, component positioning, welding quality, surface treatment, final inspection, quantity checking, and export packing according to the agreed requirements.

What is your production lead time?

Our standard production lead time is usually 30–60 days. The actual schedule depends on order quantity, customization, production planning, inspection requirements, and other order details.

How do you pack ringlock ledgers for export?

We can use bundles, steel frames, pallets, or other export-standard packing methods according to the product and shipping requirements. The final packing method can also be planned around container loading efficiency.

Do you supply complete ringlock scaffolding systems?

Yes. In addition to Ringlock Scaffold Ledger, we manufacture and supply other ringlock scaffolding components and construction accessories. Customers can also discuss complete scaffolding packages according to project requirements.

Conclusion: Choosing the Right Ringlock Scaffold Ledger

The Ringlock Scaffold Ledger is a straightforward component, but choosing the right one requires more than checking the product name. The ledger needs to match the vertical standard, rosette, connection head, bay dimensions, material specification, and project requirements.

For me, the most important purchasing rule is simple: match the component to the system first, then compare price. A cheaper ledger that does not fit the existing scaffold system is not a good purchase.

When comparing suppliers, I recommend looking at manufacturing capability, dimensional consistency, welding control, surface treatment, inspection procedures, packaging, documentation, and delivery experience. These details become especially important when the order involves thousands of components and international transportation.

At Rizhao Fenghua Scaffolding Co., Ltd., we combine long-term manufacturing experience with a large production facility, automated welding equipment, professional workshops, ISO9001 quality management, customization capability, and international export experience.

Whether you need a few replacement ringlock scaffold ledgers or a complete package for a large construction project, we can review your specifications and drawings before production. Our goal is not simply to sell a steel tube with two ends. We want to make sure the component you receive is the right component for your scaffolding system.

If you are sourcing Ringlock Scaffold Ledger from China, send us your required length, tube specification, material, surface treatment, quantity, and delivery destination. If you have a drawing or existing sample, even better. We can use that information to confirm the product specification and prepare a practical quotation for your project.

Rizhao Fenghua Scaffolding Co., Ltd. — manufacturing ringlock scaffolding, formwork, and construction accessories for global construction projects.
