Light Duty Multi Panel

When I talk with contractors about concrete formwork, one question often comes up: do we really need a heavy and complicated panel system for every construction job?

My answer is usually no. Not every concrete wall, building project, or structural section needs the same type of formwork. The right choice depends on wall dimensions, concrete pressure, project repetition, handling conditions, installation methods, and the overall construction plan.

This is where a Light Duty Multi Panel can make practical sense. It is designed for construction situations where a flexible and reusable formwork panel is needed without making the whole system unnecessarily complicated.

At Rizhao Fenghua Scaffolding Co., Ltd., we manufacture building formwork, Scaffolding Systems, and construction accessories for customers in different markets. Our product range includes Steel Formwork, Aluminum Alloy Formwork, adjustable supports, ring lock scaffolding, Cuplock Scaffolding, Frame Scaffolding, and customized construction products.

In this article, I will explain how I understand and manufacture a Light Duty Multi Panel, where it can be used, what buyers should check before ordering, and why the details of the Formwork System matter more than simply choosing the lowest price.

1. What Is a Light Duty Multi Panel?

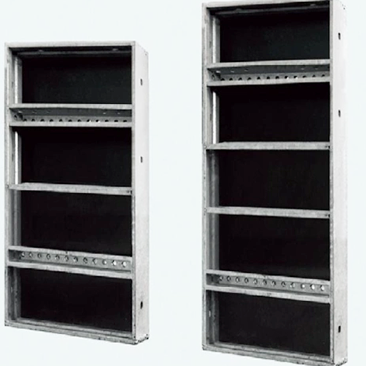

A Light Duty Multi Panel is a modular concrete formwork panel designed for practical forming applications where relatively easy handling, flexible assembly, and repeated use are important.

The word “light duty” should not be misunderstood. It does not simply mean weak or low quality. In formwork, the actual capacity of a panel depends on its dimensions, material, frame design, support arrangement, tie spacing, concrete pressure, pouring method, and other project conditions.

So when I use the term Light Duty Multi Panel, I am talking about a formwork configuration intended for suitable applications rather than claiming that one panel can handle every concrete structure.

The “multi panel” part is also important. Construction formwork is normally assembled from multiple panels rather than used as one large piece. Panels can be arranged side by side or in different configurations to create the required wall length and height.

This modular approach is useful because construction projects are rarely exactly the same. A residential wall may need a different arrangement from an industrial plant or infrastructure project.

A typical Light Duty Formwork Panel may be used to create:

• Concrete walls

• Residential building structures

• Commercial building walls

• Small and medium concrete structures

• Foundation walls

• Utility structures

• Industrial building sections

• Other suitable concrete forming applications

The exact application should always be confirmed against the engineering requirements of the project.

For me, the biggest benefit of a modular panel is simple: I can build the required formwork area from manageable sections instead of treating every concrete wall as a completely different project.

2. How Does a Light Duty Multi Panel Work?

The working principle is straightforward.

Fresh concrete is placed into a prepared formwork area. Before the concrete hardens, it behaves like a heavy fluid material and pushes against the formwork. The panels, ties, supports, connectors, and other components work together to keep the concrete within the planned shape.

Once the concrete reaches the required condition for stripping, the formwork is removed according to the project procedure. If the panels remain in suitable condition, they can be cleaned, inspected, and reused for another concrete pour.

That is the basic cycle:

1. Review the concrete structure and drawings.

2. Select the appropriate panel configuration.

3. Assemble the Formwork Panels.

4. Install ties, supports, clamps, or other required components.

5. Check alignment and stability.

6. Place the concrete according to the project method.

7. Allow the concrete to gain the required strength.

8. Strip the formwork according to the approved procedure.

9. Clean and inspect the panels.

10. Reuse the panels where appropriate.

It sounds simple, but there is an important point here. The panel does not work alone.

When I review a formwork project, I look at the complete system. A panel with a strong frame may still perform poorly if the support arrangement is unsuitable. Likewise, a good panel can be damaged if it is overloaded, handled incorrectly, or stripped too early.

The Concrete Centre explains that fresh concrete can create significant pressure on vertical formwork and that pressure is influenced by factors such as concrete placement conditions and concrete type. This is why formwork should be selected according to the actual project rather than by panel name alone.

Source: General formwork workflow based on standard concrete construction practice. Technical design and stripping requirements should be confirmed by the responsible project engineer.

3. Main Features of Our Light Duty Multi Panel

Modular Panel Design

The main idea behind a multi panel system is flexibility.

Instead of manufacturing one huge panel for every wall, I can use multiple panels to create the required formwork area. This makes transportation, storage, assembly, and replacement easier to manage.

If one section is damaged, depending on the system design, the affected panel may be replaced without rebuilding the entire formwork arrangement.

Practical Handling

Construction workers often need to move formwork panels several times during a project. Panel dimensions and weight therefore matter.

A light duty panel can be useful when the project needs a formwork system that is practical to handle and install. The actual panel weight depends on the selected material, dimensions, frame, and configuration.

I do not recommend choosing a panel simply because it is described as “light.” The better question is whether its weight and structural configuration match the available labor, lifting equipment, and site conditions.

Reusable Formwork

One of the reasons steel formwork remains popular is its potential for repeated use.

After stripping, the panel can be cleaned and checked before being used again. Proper storage is also important. Panels should not be thrown into a pile where frames and faces can be bent or damaged.

The actual number of reuse cycles depends on the design, material, surface treatment, handling method, cleaning process, and construction environment.

Flexible Assembly

A modular formwork system allows contractors to build different wall lengths and configurations from available panels.

This is particularly useful for projects where concrete dimensions change from one section to another. Rather than ordering a completely new panel for every wall, the contractor may be able to combine standard panels with customized components.

Customization

Not every project can use an off-the-shelf panel.

We can develop customized formwork according to customer drawings and project requirements. Depending on the project, customization may involve panel dimensions, connection positions, openings, frame configuration, surface requirements, or other details.

4. Light Duty Does Not Mean One Standard Load Capacity

This is one of the most important points I want buyers to understand.

There is no single load capacity that can be assigned to every product called a Light Duty Multi Panel.

Why? Because the actual load on the panel depends on the concrete and the construction method.

For example, fresh concrete density, wall height, pouring speed, temperature, concrete consistency, vibration, and the use of self-compacting concrete can all affect formwork pressure.

The Concrete Centre has published guidance indicating that wet concrete is commonly considered at around 26 kN/m³ for formwork design and that Wall Formwork pressures can commonly be around 60–80 kN/m², with higher pressures possible under certain conditions.

These figures are useful as engineering reference information, but I would never use them as a universal specification for every Light Duty Multi Panel. Actual design values need to come from the specific project calculation.

Source: The Concrete Centre, guidance published in Concrete Quarterly concerning fresh concrete weight and formwork pressure. The values are reference information and are not a product-specific load rating.

This is also why I ask customers for project information before recommending a particular configuration. A product that works well for a low wall may not be suitable for a tall wall poured at a high rate.

5. Light Duty Multi Panel vs. Other Formwork Options

When buyers compare formwork products, they often focus on price first. I understand why. Construction projects have strict budgets.

But I prefer to compare the whole working process.

A low-cost panel that is difficult to move, difficult to assemble, or difficult to reuse may not actually be the cheaper solution after several concrete pours.

On the other hand, a heavy-duty system may provide more capacity than the project actually needs. In that situation, the additional weight and equipment requirements may not provide much practical value.

The better approach is to match the formwork system to the project.

Source: Comparative assessment based on common construction formwork practice. Actual performance, capacity, reuse, and cost depend on the specific system design and project conditions.

For a contractor, I would compare at least five things:

• Initial purchase cost

• Installation time

• Handling requirements

• Expected reuse

• Compatibility with the project structure

This gives a much clearer picture than looking at the unit price alone.

6. Where Can Light Duty Multi Panel Be Used?

A Light Duty Multi Panel can be used in many concrete construction situations, provided the selected configuration matches the engineering requirements.

Residential Construction

Residential construction is one of the most common areas where modular concrete formwork is useful.

Apartment buildings, houses, dormitories, and other residential structures may contain repeated wall dimensions. When the same or similar wall layout appears many times, reusable panels can make the construction process easier to organize.

For example, if several floors have similar wall layouts, the same panel arrangement may be moved from one floor to another. This is one of the practical reasons contractors look for reusable Concrete Formwork Panels.

Commercial Buildings

Hotels, offices, shopping centers, and other commercial structures may have different concrete wall sections throughout the project.

A multi panel system can be useful when the contractor needs to adjust the panel arrangement according to changing wall dimensions.

Industrial Plants

Industrial projects often combine concrete structures with pipes, equipment, platforms, and service systems.

Formwork may need to accommodate different wall dimensions and planned openings. Customized panel designs can be considered when standard panels do not provide the required configuration.

Infrastructure Projects

Bridges, utility structures, drainage structures, and other infrastructure projects can also use modular concrete formwork.

However, infrastructure work can involve demanding structural conditions. I always recommend that the formwork arrangement be checked against the project drawings and engineering calculations before production.

Foundation and Utility Structures

Foundation walls, equipment bases, tanks, pumping stations, and similar structures can require practical formwork solutions.

In these projects, the ability to configure several panels together can be more useful than having a single fixed-size panel.

7. How We Manufacture a Light Duty Multi Panel

As a manufacturer, I believe the production process deserves attention. A formwork panel may look like a simple steel frame with a plate, but many small details affect its final performance.

Drawing Confirmation

We start by reviewing the customer's drawings and technical requirements.

I want to know the panel dimensions, required quantity, connection method, surface requirements, project application, and any special requirements before production begins.

This stage can save a lot of trouble later. It is much easier to correct a drawing before fabrication than to modify hundreds of finished panels.

Material Preparation

Materials are prepared according to the approved production requirements. Steel components are cut, processed, and prepared for assembly.

For customized orders, material selection and component dimensions are confirmed according to the agreed technical specification.

Frame Fabrication

The frame is one of the most important parts of the panel. It gives the panel its shape and provides connection points for the complete formwork arrangement.

During fabrication, we focus on dimensions, connection locations, squareness, and welding requirements.

Panel Surface Fabrication

The forming face needs to provide the required concrete contact surface. The surface specification depends on the customer's project requirements and the intended finish of the concrete.

A clean and properly maintained panel can help produce more consistent results, although final concrete appearance also depends on concrete mix, release agent, vibration, joints, temperature, and construction technique.

Welding

Our factory has automated welding lines and professional manufacturing workshops.

Welding is not just about making two steel parts stick together. Weld position, consistency, fabrication sequence, and dimensional control all matter.

For applicable fabricated products, we consider relevant welding and fabrication requirements, including EN1090 where the product scope and project requirements make it applicable.

Inspection

After fabrication, the panels are inspected. Depending on the order, inspection can include dimensions, connection positions, welding condition, surface condition, and other agreed quality requirements.

Our production management follows ISO9001 quality management practices.

Packing

After final inspection, the panels are prepared for shipment.

We can use steel frames, bundles, or export-standard packaging according to the product and transportation requirements. Proper packing is important because even a well-manufactured panel can be damaged if it is poorly loaded or protected during transport.

8. Quality Standards: What Should International Buyers Know?

International buyers often ask about ISO9001, EN74, EN1090, and CE. I think it is important to explain these terms carefully.

ISO9001 relates to quality management systems. It is about how a company controls and improves its processes rather than being a product load rating.

EN74 is associated with specific scaffolding and falsework components. For example, BS EN 74-1:2022+A1:2025 covers specified types of couplers for tubes, including requirements, strength classes, testing, assessment, and production control. It is not a universal formwork standard for every Light Duty Multi Panel.

EN1090 relates to the execution of steel and aluminum structures, but its application depends on the actual product and intended use. The European Commission explains that CE marking under EN 1090-1 applies when the product falls within the standard's scope, has the relevant structural function, and other conditions are met.

CE marking should also be understood correctly. Under the European construction products framework, CE marking is linked to applicable harmonised technical specifications or an appropriate European Technical Assessment route. It should not be treated as a general statement that every product from a manufacturer automatically carries the same certification.

Sources: BSI Knowledge for BS EN 74-1:2022+A1:2025 and BS EN 74 series; European Commission guidance on the Construction Products Regulation, harmonised standards, EN 1090-1 and CE marking.

This distinction matters because I want customers to receive accurate technical information. A standard should describe what it actually covers, not simply be placed on a product page to make the product sound more impressive.

9. Why Choose Rizhao Fenghua for Light Duty Multi Panel?

Rizhao Fenghua Scaffolding Co., Ltd. has been involved in manufacturing construction products since 1953.

Our factory is located in Rizhao, Shandong, China, and covers approximately 80,000 square meters. We operate professional manufacturing workshops, advanced production equipment, and automated welding lines.

Our product range includes:

• Steel formwork

• Aluminum alloy formwork

• Light Duty Multi Panel

• Adjustable supports

• Ring lock scaffolding

• Cuplock scaffolding

• Frame scaffolding

• Construction accessories

• Customized construction solutions

Having a broad product range is useful because construction projects often need several related products rather than one isolated panel.

For example, a contractor may need concrete formwork, adjustable supports, scaffolding, and connecting accessories for the same project. Working with a manufacturer that understands these products can make technical communication easier.

We also provide customized production according to customer drawings and project requirements.

If a customer sends us a drawing for a custom Light Duty Multi Panel, we can review the panel dimensions, connection details, quantity, material requirements, packaging, and other production information before confirming the order.

Our normal production lead time is around 30–60 days, depending on order quantity and customization requirements.

For international customers, we support T/T and L/C payment terms. Products can be packed in steel frames, bundles, or export-standard packaging and shipped by sea, rail, or other international logistics methods.

Our products are exported to 126 countries and regions. This means we are familiar with the practical issues that can appear in international orders, including packaging, documentation, loading, delivery schedules, and communication across different markets.

For me, that is an important part of being a useful manufacturing partner. Making the product is only one part of the job. The product also needs to arrive in good condition and match the agreed technical requirements.

10. How to Choose the Right Light Duty Multi Panel

If I were buying a Light Duty Multi Panel for a new project, I would not start with price. I would start with the construction conditions.

1. Confirm the Wall Dimensions

Start with wall height, wall length, thickness, and overall geometry.

These dimensions determine how the panels need to be arranged and supported.

2. Check Concrete Conditions

Ask what type of concrete will be used, how quickly it will be poured, and whether vibration or self-compacting concrete will be involved.

These details can affect formwork pressure.

3. Review the Support System

The panel and support system should be considered together.

Check ties, walers, braces, clamps, connectors, and other components required by the project design.

4. Consider Handling

Think about how workers will move and install the panels.

Will the panels be handled manually? Is a crane available? How far do the panels need to be moved between pours?

5. Think About Reuse

If the same wall configuration will be used many times, reusable modular formwork can provide a practical advantage.

But the panels need proper cleaning, inspection, storage, and handling to achieve useful service life.

6. Send the Drawing

This is probably my most practical recommendation.

If you want a quotation for a customized formwork panel, send the drawing. A drawing gives us much more information than a product name.

For example, “Light Duty Multi Panel” tells us the general product category. It does not tell us the exact panel width, height, thickness, frame profile, connection method, or required quantity.

11. Frequently Asked Questions About Light Duty Multi Panel

What is a Light Duty Multi Panel?

A Light Duty Multi Panel is a modular concrete formwork panel designed for suitable construction applications where practical handling, flexible assembly, and reuse are important. Its actual capacity depends on the specific design and project conditions.

Is Light Duty Multi Panel suitable for concrete walls?

Yes, it can be used for suitable concrete wall applications. However, the panel configuration must be checked against wall dimensions, concrete pressure, support arrangement, and project engineering requirements.

Does light duty mean the panel is weak?

No. “Light duty” describes the intended application and configuration. It should not be interpreted as a universal statement about material quality or structural performance. Actual performance depends on the product design and project conditions.

Can the Light Duty Multi Panel be customized?

Yes. We support customized formwork production according to customer drawings and project requirements. Customers can provide dimensions, drawings, quantities, and other technical information for review.

Can I reuse the panels?

Steel formwork is generally intended for repeated use when properly handled and maintained. The actual reuse life depends on the panel design, material, surface condition, cleaning, storage, and site handling.

What industries use Light Duty Multi Panel?

Suitable applications include residential construction, commercial buildings, industrial plants, infrastructure, foundations, utility structures, and other concrete construction projects.

How long is the production time?

Our standard production lead time is usually 30–60 days, depending on order quantity, customization requirements, and production scheduling.

What payment methods do you accept?

We support T/T and L/C payment methods. The exact payment terms are confirmed in the commercial contract.

How are Light Duty Multi Panels packed for export?

Depending on the product and shipping requirements, panels can be packed using steel frames, bundles, or export-standard packaging to support safe transportation.

Can you arrange international delivery?

Yes. We can support shipping by sea, rail, or other international logistics methods. The appropriate method depends on the destination, order quantity, delivery schedule, and customer requirements.

Is EN74 a standard for Light Duty Multi Panel?

EN74 primarily covers specified couplers, spigot pins, and baseplates used with scaffolds and falsework. It should not be presented as a universal product standard for every concrete formwork panel.

Does every product need CE marking?

No. CE marking requirements depend on the applicable European legislation and product scope. The European Commission states that CE marking for construction products is connected to applicable harmonised technical specifications or an appropriate European Technical Assessment route.

12. Final Thoughts from a Formwork Manufacturer

After many years of working around construction products, I have learned that the simplest-looking products often need the most practical thinking.

A Light Duty Multi Panel is not complicated in principle. It is a modular formwork panel used to create a controlled concrete shape. But its success on a real construction site depends on many small details.

Panel dimensions matter. Frame design matters. Connections matter. Concrete pressure matters. Support spacing matters. Handling matters. Storage matters. Even the way workers clean and move the panels after stripping can affect their useful service life.

That is why I recommend looking at the complete forming process instead of buying a panel based on one specification.

For residential projects, commercial buildings, industrial structures, infrastructure, and other suitable concrete applications, a properly selected Light Duty Multi Panel Formwork System can provide a practical balance between flexibility, handling, reuse, and project requirements.

At Rizhao Fenghua Scaffolding Co., Ltd., we approach formwork from the manufacturing side and the actual construction side. We review drawings, discuss project requirements, manufacture according to agreed specifications, inspect finished products, and prepare them for international delivery.

Our factory covers approximately 80,000 square meters, and our manufacturing capabilities include automated welding lines and professional production workshops. With experience in steel formwork, aluminum alloy formwork, scaffolding systems, adjustable supports, and construction accessories, we can support both standard and customized construction requirements.

If you are looking for a Light Duty Multi Panel supplier, Light Duty Concrete Formwork panel, reusable light duty formwork, or custom multi panel formwork system, the best starting point is your project drawing.

Send us the panel dimensions, wall details, required quantity, concrete conditions, and delivery destination. We can then discuss the suitable configuration, production requirements, packaging, and delivery plan.

For formwork, a good result starts before the concrete arrives. When the panel design, support arrangement, and construction method are considered together, the job becomes easier to control and much easier to repeat.

Technical Sources and References

• The Concrete Centre — technical guidance on fresh concrete, formwork pressure, concrete density, and factors affecting formwork design.

• BSI Knowledge, BS EN 74-1:2022+A1:2025 — requirements and test procedures for specified couplers used with scaffolds and falsework.

• BSI Knowledge, BS EN 74 Series — standards covering couplers, spigot pins, and baseplates for falsework and scaffolds.

• European Commission, Construction Products Regulation — current EU framework for construction products, harmonised technical specifications, performance declarations, and conformity requirements.

• European Commission, CE Marking and Declaration of Performance and Conformity — guidance on when CE marking applies to construction products and how conformity information is documented.

Technical Disclaimer: The technical information in this article is provided for general product and construction guidance. It does not replace project-specific structural calculations, engineering drawings, risk assessments, or installation instructions. Final panel selection, allowable loads, tie spacing, support arrangement, concrete pouring rate, stripping time, and site procedures should be confirmed by the responsible engineer and according to applicable local requirements.
