FW00AB Heavy Duty Fixed Shutter Corner

1. What Is the FW00AB Heavy Duty Fixed Shutter Corner?

The FW00AB Heavy Duty Fixed Shutter Corner is a heavy-duty corner component used as part of a concrete shuttering or Formwork System. Its basic job is to help connect formwork panels at a corner and maintain the required geometry during wall or concrete forming work.

In simple words, think about two formwork panels meeting at a corner. The panels need to stay in the correct position while reinforcement is installed, concrete is poured, and the fresh concrete places pressure against the formwork. The corner connection therefore needs to be stable enough for the intended application and compatible with the rest of the shuttering system.

This is where a fixed shutter corner becomes useful. Instead of treating the corner as two completely separate panels, the corner component provides a defined connection point. It helps the contractor build a more organized formwork assembly and maintain a consistent corner arrangement.

The term "heavy duty" is also important. It indicates that the component is intended for demanding construction applications where strength and durability matter. However, I would never recommend judging load capacity simply from the product name. Actual capacity depends on the complete formwork configuration, panel dimensions, tie arrangement, support, bracing, concrete pressure, connection details, and project-specific engineering.

Why Does a Formwork Corner Need Special Attention?

A straight formwork connection is relatively easy to understand. Two panels are joined along a line. A corner is different because the direction changes. The panels must meet correctly while maintaining the intended wall dimensions and angle.

If the corner connection is poorly matched, several problems can appear. The panels may move during installation, the corner may become difficult to align, the concrete surface may show unwanted marks, or the finished wall dimensions may not match the project requirements.

That is why I consider a Steel Formwork Corner Connector more than a small accessory. It is part of the system's geometry. When the connection is designed correctly and installed according to the manufacturer's instructions, it can make the assembly process more predictable.

       Source: General formwork system principles and Rizhao Fenghua product manufacturing practice. Actual component functions and system requirements vary according to the specific formwork design.

2. How Does a Heavy Duty Fixed Shutter Corner Work?

The working principle is straightforward. The corner component is positioned between or alongside compatible shuttering panels according to the formwork design. The panels are brought into the required position, the corner connection is secured, and the complete assembly is checked before concrete placement.

Once the formwork is assembled, the corner becomes part of a larger structural system. The concrete does not simply push on one component. Pressure is transferred through the form face, panel frame, ties, connectors, braces, and supporting structure. For that reason, I always recommend evaluating the FW00AB Heavy Duty Fixed Shutter Corner together with the complete formwork system.

Step 1: Prepare the Formwork Panels

Before installing the corner, workers should make sure the related shuttering panels are clean, undamaged, and suitable for the planned assembly. The connection surfaces should be free from concrete buildup or other material that could prevent proper fitting.

Step 2: Position the Corner

The FW00AB component is placed according to the approved formwork configuration. The exact position depends on the panel design and the corner arrangement. This is why product drawings and assembly instructions are important, particularly for customized Formwork Systems.

Step 3: Connect the Panels

The compatible panels are brought together and connected through the designated connection points. The objective is to create a firm and correctly aligned corner rather than simply forcing two panels into position.

Step 4: Check Alignment

This step is easy to skip when workers are in a hurry, but I would not recommend it. The corner should be checked for position, alignment, verticality, connection security, and compatibility with adjacent panels.

Step 5: Complete the Formwork Assembly

Once the corner is confirmed, the rest of the formwork system can be completed. This may include ties, braces, supports, working platforms, and other components required by the project design.

Step 6: Inspect Before Concrete Placement

The final inspection is important because concrete creates significant temporary loads on the formwork. OSHA's requirements for cast-in-place concrete state that formwork must be designed, fabricated, erected, supported, braced, and maintained so that it can support reasonably anticipated vertical and lateral loads without failure. OSHA also requires relevant formwork and shoring plans to be available at the jobsite. :contentReference[oaicite:0]{index=0}

I mention this because a corner connector should never be treated as an independent load-bearing guarantee. The entire formwork arrangement needs to be designed and checked for the expected conditions.

3. Main Features I Consider Important in a Fixed Shutter Corner

When I evaluate a heavy duty fixed shutter corner, I look beyond its shape. A useful component needs to fit the system, handle normal site use, and remain reliable after repeated installation and removal.

Strong Construction

The component needs adequate strength for its intended application. Material thickness, geometry, welds, connection areas, and manufacturing accuracy can all affect performance. I prefer to evaluate these details as part of the production process instead of relying on appearance alone.

Accurate Corner Geometry

A formwork corner needs to maintain the intended relationship between connected panels. Even a small dimensional problem can become more noticeable when several panels are assembled into a large wall.

Stable Connection

The connection should work with the compatible shuttering system and remain properly engaged during normal installation and concrete placement. Connection security is especially important because fresh concrete can create lateral pressure on wall formwork.

Repeated Use

Construction formwork is often reused. Contractors therefore need accessories that can withstand normal handling, installation, removal, cleaning, inspection, and storage. A reusable component can make more sense economically than a product intended for one-time use.

Simple Installation

I prefer formwork components that workers can understand quickly. On a busy jobsite, complicated parts increase the chance of incorrect installation. A clear connection method and identifiable orientation make the work easier.

System Compatibility

This may be the most important point for buyers. The FW00AB component should be ordered according to the compatible shuttering system, panel profile, connection method, and project requirements. A corner accessory that looks similar to another product is not automatically interchangeable.

Durable Surface and Finish

Surface treatment can help protect steel components during storage, handling, and normal construction use. The appropriate treatment depends on the material, project environment, customer specification, and expected service conditions.

       Source: Manufacturer production practice and general steel formwork selection principles. Product-specific specifications should always be confirmed through the approved technical drawing.

4. Why Corner Connections Matter During Concrete Wall Forming

Wall formwork has one simple job: hold fresh concrete in the required shape until the concrete has gained enough strength. But anyone who has spent time around construction knows that "simple" does not always mean easy.

Fresh concrete behaves differently from a finished concrete wall. While it is being placed, the formwork must deal with temporary loads and movement. Concrete pressure can vary depending on placement rate, temperature, mix characteristics, vibration, wall height, and other factors.

This means the corner connection needs to work as part of the complete system. A strong corner component cannot compensate for a weak panel, incorrect tie spacing, insufficient bracing, poor support, or an unsuitable installation method.

OSHA defines formwork as the total support system for freshly placed or partially cured concrete, including the mold or sheeting that contacts the concrete as well as shores, reshores, hardware, braces, and related hardware. :contentReference[oaicite:1]{index=1}

I like this definition because it matches how I think about formwork in the factory. The corner is one piece of a bigger system. The quality of the final wall depends on how all these pieces work together.

Corner Accuracy and Finished Concrete

The corner is also important because it can influence the final appearance and dimensions of the concrete structure. If the formwork is not aligned correctly, the resulting corner may require additional repair work or adjustment.

That does not mean the FW00AB component alone determines concrete finish quality. Concrete placement, vibration, release agent, panel surface condition, joint treatment, curing, and workmanship all have an effect. Still, a stable and properly aligned formwork corner gives the construction team a better starting point.

Connection Stability During Reuse

On repetitive projects, workers may install and remove the same Formwork Accessories many times. This creates a different requirement from a one-time temporary assembly. The component needs to tolerate normal handling and should be inspected regularly for damage, deformation, excessive wear, or other conditions that could affect its intended use.

I recommend treating inspection as part of the construction cycle rather than something done only after a problem occurs.

5. Manufacturing the FW00AB Heavy Duty Fixed Shutter Corner

From my manufacturing perspective, the quality of a fixed shutter corner connector begins with the drawing. Before material is cut, we need to know the dimensions, material requirements, connection details, production quantity, surface treatment, and any special customer requirements.

Rizhao Fenghua Scaffolding Co., Ltd. was established in 1953. Our factory in Rizhao, Shandong, China covers approximately 80,000 square meters and includes professional production workshops, advanced equipment, and automated welding lines. This gives us the production base to manufacture formwork and scaffolding products at different scales.

Material Preparation

The first physical stage is material preparation. Steel plates, profiles, tubes, or other specified materials are selected and prepared according to the approved production information.

I pay attention to material preparation because the finished part can only be as consistent as the starting material and process control. Cutting errors, incorrect material dimensions, or poor identification can create problems later during fabrication.

Cutting and Forming

Depending on the product design, components may need cutting, drilling, bending, forming, or other machining operations. Dimensional control is important because the corner needs to fit with the corresponding formwork system.

Welding

Welding is one of the key processes for fabricated steel formwork accessories. The welding procedure needs to match the component design and production requirements. We operate under an ISO9001 quality management system and have manufacturing capabilities associated with EN1090 welding requirements where applicable.

EN1090 should not be understood as a blanket statement that every construction accessory automatically falls under the same conformity route. The applicable requirements depend on the product, materials, intended use, execution requirements, and project conditions. For international orders, I recommend confirming the exact documentation required by the buyer and destination market.

Dimensional Inspection

After fabrication, the product is inspected for important dimensions and connection features. For a corner component, this can include checking overall dimensions, hole or connection locations, angles, alignment, weld condition, and visible defects.

Surface Treatment

The surface treatment depends on the customer specification and intended application. Proper preparation and coating can help protect steel components during storage, transportation, and normal construction use.

Final Packing

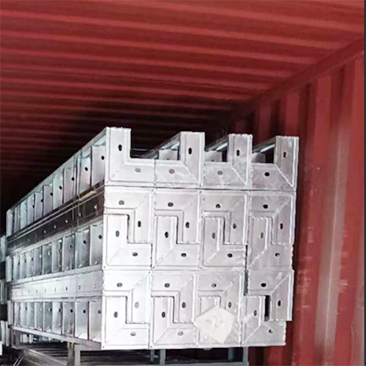

Once inspection is completed, the components are packed according to shipment requirements. For international orders, we can use steel frames, bundles, or export-standard packaging depending on component size, quantity, handling requirements, and shipping method.

       Source: Rizhao Fenghua Scaffolding Co., Ltd. manufacturing information supplied for this product page.

6. Applications of FW00AB Heavy Duty Fixed Shutter Corner

The FW00AB Heavy Duty Fixed Shutter Corner is intended for construction environments where compatible shuttering panels need a stable corner connection. The exact application depends on the formwork system and project design.

Residential Building Construction

Residential projects use Concrete Wall Formwork for foundations, structural walls, cores, retaining structures, and other reinforced concrete elements. When similar wall layouts are repeated, reusable formwork accessories can support a more organized construction cycle.

Commercial Buildings

Commercial projects such as offices, hotels, shopping centers, and mixed-use buildings may involve large quantities of concrete wall formwork. A suitable heavy duty shutter corner can be used as part of the formwork arrangement where fixed corners are required.

Industrial Plants

Industrial buildings often include reinforced concrete foundations, equipment bases, walls, pits, and other structural elements. These projects can require robust formwork accessories because the work may involve repeated casting operations and demanding site conditions.

Infrastructure Projects

Infrastructure construction can include bridges, retaining structures, utility structures, water-related facilities, and other concrete works. The suitability of a fixed shutter corner depends on the exact geometry and temporary works design.

General Concrete Wall Formwork

The product can be considered wherever a compatible steel shuttering or formwork system requires a fixed corner connection. Before ordering, I recommend sending the panel profile and connection drawing so that we can confirm compatibility rather than relying only on a product name.

This point becomes especially important when customers purchase replacement parts. Different manufacturers may use similar-looking corner accessories with different dimensions, holes, connection methods, or tolerances. A visual match is not enough.

7. Why Choose Rizhao Fenghua for Formwork Corner Accessories?

When a customer asks me why they should buy a steel formwork corner connector from us, I do not think the best answer is simply "because we have a factory." Many manufacturers have factories. What matters is what the factory can actually do for the customer.

Long Manufacturing Experience

Rizhao Fenghua Scaffolding Co., Ltd. was established in 1953. We have built our business around construction formwork, scaffolding, and related products, with experience covering research, manufacturing, customization, and international supply.

Broad Product Range

We manufacture aluminum alloy formwork, steel formwork, adjustable supports, ring lock scaffolding, cuplock scaffolding, frame scaffolding, and various construction accessories. This wider product range helps us understand how individual components fit into larger construction systems.

Customization

Not every contractor needs exactly the same corner accessory. Some projects have special panel dimensions, different connection arrangements, or customer-specific requirements. We can review drawings and develop customized solutions according to project requirements.

Quality Management

Our production is managed under ISO9001 quality management requirements. Depending on the applicable product and order, our manufacturing and products can involve international standards and certifications such as EN74, EN1090, and CE.

I believe documentation should be clear. If a buyer needs a specific certificate, test report, material document, or inspection record, that requirement should be discussed before production so the correct documents can be prepared with the order.

International Supply

Our products have been exported to 126 countries and regions. We understand that an international order involves more than production. Packing, labeling, container loading, shipping documents, transportation method, and delivery schedule all need attention.

Flexible Commercial Terms

We support payment methods including T/T and L/C. Standard production lead time is generally around 30–60 days, depending on order quantity, customization, drawing approval, and production requirements.

For customized FW00AB Heavy Duty Fixed Shutter Corner orders, I recommend confirming the technical drawing first and then finalizing quantity and commercial terms. This simple step can prevent many misunderstandings later.

8. Buying Guide and FAQ for FW00AB Heavy Duty Fixed Shutter Corner

What is the FW00AB Heavy Duty Fixed Shutter Corner used for?

It is used as a fixed corner component in compatible concrete shuttering and formwork systems. Its main purpose is to help connect formwork panels at a corner and maintain the required geometry during concrete forming.

Is FW00AB suitable for steel formwork?

The product is intended for compatible shuttering and formwork applications. Before ordering, I recommend confirming the steel panel profile, dimensions, connection method, and technical drawing to make sure the FW00AB component matches the customer's existing formwork system.

Is this a load-bearing component?

It is a structural connection component within a formwork assembly, but I would not assign a universal load rating without the complete system design. Actual loads depend on concrete pressure, panel arrangement, tie spacing, support and bracing, wall height, concrete placement conditions, and other factors.

OSHA requires cast-in-place concrete formwork to be designed and maintained to support reasonably anticipated vertical and lateral loads without failure. :contentReference[oaicite:2]{index=2} Therefore, the corner component should be evaluated as part of the complete engineered formwork system.

Can the FW00AB Heavy Duty Fixed Shutter Corner be reused?

Formwork accessories are commonly designed for repeated construction use, but actual reuse depends on material, handling, loading, maintenance, and site conditions. Before each reuse, the component should be checked for deformation, cracks, damaged welds, excessive wear, or other defects.

How do I confirm whether FW00AB will fit my existing formwork?

Send us the formwork panel drawing, corner drawing, connection details, or clear photographs with dimensions. I prefer checking the technical information before confirming compatibility. This is much safer than assuming two products with similar names will fit each other.

Can you manufacture customized shutter corners?

Yes. We can review customer drawings and project requirements for customized construction accessories. Custom production may involve dimensions, connection details, material specifications, surface treatment, packaging, and other requirements.

What quality standards do you follow?

Our company operates under an ISO9001 quality management system. Depending on the product and applicable scope, our manufacturing and construction products involve standards and certifications including EN74, EN1090, and CE. The exact certification and documentation should be confirmed according to the product and order.

What is the normal production lead time?

Our standard production lead time is generally 30–60 days. The actual schedule can change depending on quantity, customization, drawing confirmation, material availability, production workload, inspection requirements, and packaging.

How are the products packed?

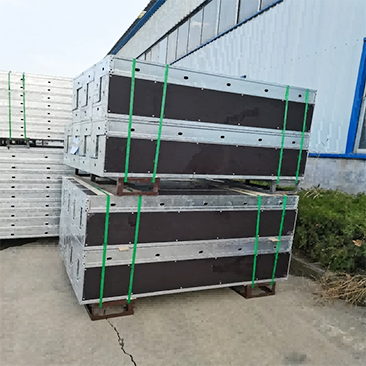

We use steel frames, bundles, or export-standard packaging depending on the product size, weight, quantity, and transportation requirements. The goal is to make the components easier to handle and reduce the risk of damage during international transportation.

Can you ship FW00AB products internationally?

Yes. We supply international construction customers and have exported our products to 126 countries and regions. Goods can be shipped by sea, rail, or other suitable international logistics methods according to destination and project requirements.

What payment methods are available?

We support flexible commercial terms including T/T and L/C. Specific payment arrangements are confirmed in the commercial contract according to order value, customer requirements, and project conditions.

What should I inspect before using a fixed shutter corner?

I recommend checking the component dimensions, connection points, welds, visible deformation, surface condition, and compatibility with the approved formwork drawing. The surrounding panels, ties, braces, and supports should also be checked before concrete placement.

OSHA also requires shoring equipment to be inspected before erection and provides requirements for inspection around concrete placement. Damaged shoring equipment that has reduced strength should not be used. :contentReference[oaicite:3]{index=3} While these requirements are specific to the applicable OSHA provisions, the practical lesson is useful for formwork work in general: inspect temporary works before putting them under load.

Conclusion: A Small Corner Component Can Make a Big Difference

From my point of view, the FW00AB Heavy Duty Fixed Shutter Corner is a good example of why construction equipment should be evaluated as a complete system. The component itself is compact, but its job is important. It helps create a stable corner connection between compatible shuttering panels and supports the geometry of the formwork assembly.

For contractors, the key points are straightforward: choose the correct model, confirm compatibility, follow the approved formwork design, inspect components before use, and do not assume that a single accessory determines the capacity of the entire system.

For buyers, I recommend providing drawings and connection details when requesting a quotation. This allows the manufacturer to confirm dimensions, material, quantity, customization requirements, packing, and delivery arrangements before production starts.

At Rizhao Fenghua Scaffolding Co., Ltd., we combine long manufacturing experience with a broad range of formwork and scaffolding products. Our approximately 80,000-square-meter factory, automated welding lines, professional workshops, ISO9001 quality management, customization capability, and international supply experience allow us to support customers beyond a simple component order.

Whether you are buying a small quantity of FW00AB Heavy Duty Fixed Shutter Corner as a replacement part or sourcing larger quantities for a complete construction project, I believe the best approach is to start with the technical requirements. Once the application is clear, we can work backward to the right material, dimensions, connection arrangement, production process, inspection requirements, and delivery plan.

A good formwork accessory should fit properly, work reliably, and make sense for the people using it on site. That is the standard I use when looking at this product, and it is the standard we aim to maintain throughout our formwork manufacturing process.

Technical and Safety Note

The information on this page is provided for product education and general construction planning. The FW00AB Heavy Duty Fixed Shutter Corner should be used only with a compatible formwork system and according to approved engineering drawings, manufacturer's instructions, applicable local regulations, and site safety procedures. Do not determine load capacity, tie spacing, panel spacing, or other structural parameters from this article alone.

Formwork is temporary works, but it carries real construction loads. OSHA's cast-in-place concrete requirements specifically address the design, fabrication, erection, support, bracing, maintenance, inspection, and removal of formwork. :contentReference[oaicite:4]{index=4} Project-specific engineering review should therefore be completed before the system is placed under load.

Reference Sources

1. U.S. Occupational Safety and Health Administration, 29 CFR 1926.703 — Requirements for Cast-in-Place Concrete. The regulation covers formwork design, fabrication, erection, support, bracing, maintenance, inspection, and removal requirements.        OSHA official source. :contentReference[oaicite:5]{index=5}

2. U.S. Occupational Safety and Health Administration, 29 CFR 1926.700 — Scope, Application and Definitions Applicable to Concrete and Masonry Construction. This source defines formwork as the complete support system for freshly placed or partially cured concrete.        OSHA official source. :contentReference[oaicite:6]{index=6}

3. U.S. Occupational Safety and Health Administration, 29 CFR 1926.703 Appendix — General Requirements for Formwork.        OSHA official source. :contentReference[oaicite:7]{index=7}

4. Rizhao Fenghua Scaffolding Co., Ltd. — Company and product information supplied for this product page, including factory area, manufacturing capabilities, product range, quality management, international certifications, export markets, lead time, packaging, payment terms, and logistics.
