Concrete Formwork

When I talk about Concrete Formwork, I am not simply talking about a group of steel or aluminum panels. In real construction work, formwork is part of the system that determines how easily concrete can be shaped, supported, poured, and released. If the formwork is difficult to install, unstable during concrete placement, or poorly matched to the project, the problems can quickly affect labor, construction time, concrete quality, and overall project cost.

At Rizhao Fenghua Scaffolding Co., Ltd., we have been working with construction formwork and scaffolding products for decades. Our company was established in 1953, and today we operate an 80,000 m² manufacturing facility in Rizhao, Shandong, China. Over the years, I have seen that different construction projects need very different formwork solutions. A residential building, a bridge pier, a factory structure, and a large infrastructure project cannot always use the same setup.

That is why we manufacture steel concrete formwork, Aluminum Alloy Formwork, Wall Formwork panels, adjustable supports, Scaffolding Systems, and related construction accessories. We can also develop customized solutions based on customer drawings, structural requirements, dimensions, and site conditions.

My goal with this page is simple: to explain what our Concrete Formwork does, how it works, what buyers should look at before ordering, and how we manage manufacturing and quality control. I also want to make the technical side easy to understand, because choosing construction equipment should not feel more complicated than the construction project itself.

1. What Is Concrete Formwork?

Concrete Formwork is a temporary or reusable structure used to hold fresh concrete in a planned shape until the concrete gains enough strength to support itself. In simple terms, the formwork acts like a mold and support system at the same time.

For a concrete wall, for example, Formwork Panels are placed on both sides of the reinforcement. The panels create the required wall shape while ties, braces, supports, and other components keep the system stable. Concrete is then poured into the space between the panels. After the concrete reaches the required strength, the formwork can be removed and prepared for the next use.

This sounds straightforward, but there is more going on behind the scenes. Formwork must deal with the weight and pressure of fresh concrete, construction loads, vibration during placement, wind in some applications, and the forces transferred through supports and connections.

The U.S. Occupational Safety and Health Administration defines formwork as the complete support system for fresh or partially cured concrete, including the mold or sheeting in contact with the concrete as well as shores, reshores, hardware, braces, and related hardware.

In other words, when we discuss a Concrete Formwork System, we should not look at the panel alone. The panel, connection system, support structure, ties, braces, and working arrangement all have to work together.

For our customers, this is particularly important when they are buying formwork for repeated construction cycles. A panel that looks strong on paper is not enough. It also needs to be practical for workers to install, align, remove, clean, inspect, and reuse.

2. How Does Concrete Formwork Work?

The working principle of Concrete Formwork is easy to understand when we break the process into several steps.

Step 1: Project Planning

Before production begins, we review the customer's drawings, dimensions, structural requirements, project type, and expected construction method. For customized projects, we need to understand what the formwork will be used for and how frequently the panels will be moved or reused.

This is where choosing the right Formwork System starts. A wall panel for a low-rise building may have very different requirements from formwork used for a bridge or industrial plant.

Step 2: Formwork Installation

The panels are positioned according to the construction drawings. Depending on the system, workers may use ties, clamps, pins, wedges, braces, adjustable supports, or other connecting components.

The objective is to create a stable mold with the correct dimensions. Alignment is important because the final concrete surface follows the inside face of the formwork.

Step 3: Reinforcement and Concrete Placement

Reinforcing steel is positioned inside the formwork before concrete placement. Fresh concrete is then poured into the prepared space.

At this point, the formwork experiences pressure from the concrete. Concrete placement speed, mixture characteristics, vibration, temperature, and other factors can affect the pressure on the formwork. ACI guidance specifically notes that formwork should be designed for pressure resulting from concrete placement and vibration while maintaining the required tolerances.

Step 4: Concrete Curing

The formwork remains in place while the concrete gains sufficient strength. The exact timing depends on the concrete, structural design, temperature, project specifications, and other site conditions.

Formwork should never simply be removed because a certain number of hours have passed. OSHA requires forms and shores to remain until the concrete has gained enough strength to support its own weight and applicable loads, based on the project requirements or suitable strength testing.

Step 5: Formwork Removal and Reuse

Once removal is permitted, the panels are carefully released, cleaned, inspected, and prepared for the next construction cycle.

This reusable nature is one of the main reasons contractors choose steel or aluminum formwork. A well-managed system can be used repeatedly, helping spread the initial equipment cost across multiple construction cycles.

3. Main Types of Concrete Formwork We Provide

There is no single formwork system that is perfect for every project. At Fenghua, I prefer to start with the project requirements instead of pushing one standard product to every customer.

Steel Concrete Formwork

Steel Concrete Formwork is widely used when strength, durability, and repeated use are important. Steel panels can be designed for different wall, column, beam, and structural applications.

The main advantage is durability. Steel Formwork can handle demanding construction environments when it is correctly designed, manufactured, transported, installed, and maintained. For contractors with repeated projects, this can make steel formwork a practical long-term investment.

Aluminum Concrete Formwork

Aluminum alloy formwork is valued for its lower weight compared with many steel systems. This can make manual handling and repeated installation more convenient in suitable building projects.

Aluminum formwork is often considered for repetitive residential construction where the same or similar floor layouts are repeated. Its effectiveness depends heavily on project design and how much repetition the construction program provides.

Wall Concrete Formwork

Wall formwork is designed to create vertical concrete walls with controlled dimensions and surface finish. It can be used for residential buildings, commercial structures, industrial facilities, foundations, retaining structures, and infrastructure work.

Custom Concrete Formwork

Custom formwork becomes useful when standard panel sizes do not match the project. We can work from customer drawings and project requirements to develop suitable panel dimensions, connections, supports, and accessories.

For us, customization is not just about changing the size of a panel. The complete working method matters. We consider how the system will be transported, assembled, adjusted, stripped, cleaned, and reused on site.

4. Key Features and Technical Advantages

When a customer asks me what makes good Concrete Formwork, I usually focus on a few practical points rather than using a long list of marketing words.

High Structural Strength

Formwork must carry the loads expected during concrete placement and construction. The actual requirement depends on the design and application, so formwork should be selected according to project-specific calculations and drawings rather than simply relying on a panel's appearance.

OSHA requires formwork to be designed, fabricated, erected, supported, braced, and maintained so it can support reasonably anticipated vertical and lateral loads without failure.

Stable Connections

A formwork panel is only one part of the system. Connections between panels, ties, braces, supports, and accessories help maintain the required position during concrete placement.

We therefore pay close attention to connection accuracy during manufacturing. Poorly matched components can make installation slower and may create unnecessary adjustment work on site.

Flexible Installation

Construction sites are rarely as simple as factory floors. Space can be limited, access can change, and workers may need to move equipment between different areas.

For this reason, practical installation is one of the points we consider when developing formwork solutions. A system that can be installed and adjusted efficiently is more useful than a system that looks impressive but takes too much effort to operate.

Good Reusability

Reusable formwork can help contractors reduce the need to purchase new temporary molds for every construction section. However, reusability depends on correct handling and maintenance.

After stripping, panels should be cleaned, checked for deformation or damage, and stored properly. Damaged components should not simply be returned to service.

Adaptability

Our formwork products are used for residential buildings, commercial construction, bridges, infrastructure projects, industrial plants, and other concrete structures.

The right system may be different for each application. That is why we support customized formwork based on customer drawings, project dimensions, construction methods, and other requirements.

5. Concrete Formwork Comparison for Different Construction Needs

When selecting a formwork system, I do not recommend judging products only by purchase price. The better question is how well the system fits the project and how efficiently it can be used throughout the construction cycle.

Source note: This comparison is a practical engineering comparison prepared for this product page. Actual capacity, handling requirements, cycle life, and suitability depend on the specific formwork design, material, dimensions, loading conditions, and project requirements. It should not be used as a structural design specification.

For buyers looking for a concrete formwork manufacturer, this distinction matters. A lower initial price may not mean a lower total cost if the system requires more labor, has limited reuse, or is difficult to maintain.

6. Manufacturing Process: From Raw Material to Finished Formwork

One thing I have learned from long-term manufacturing is that product quality is usually decided before the product reaches the construction site.

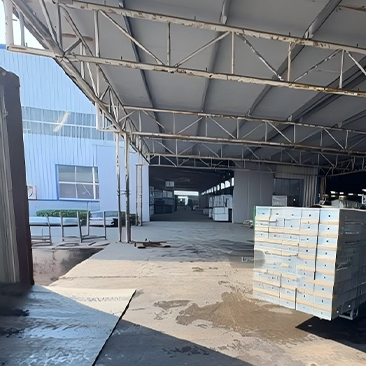

At our 80,000 m² factory in Rizhao, we use professional manufacturing workshops, production equipment, and automated welding lines to produce formwork and scaffolding products. Our production process varies according to the product, but the general workflow follows several important stages.

Material Preparation

Steel or aluminum materials are prepared according to the approved product drawings and specifications. Correct material selection is important because the material affects strength, weight, welding performance, corrosion behavior, and service life.

Cutting and Forming

Materials are cut and processed according to the required dimensions. Accurate preparation at this stage helps reduce dimensional errors during assembly.

Welding and Assembly

Structural components are welded or assembled according to the product design. Welding quality is especially important for steel formwork and supporting structures because connection areas transfer loads between different components.

Our manufacturing management follows ISO9001 quality management requirements, and our company also works with EN1090 welding standards and related international requirements for applicable products.

EN 1090 is an execution standard for steel structures, while the European Commission's Joint Research Centre identifies EN 1090 among the execution standards used alongside the Eurocodes for construction.

Surface Treatment

Depending on the product and customer requirements, surface treatment can be applied to improve appearance, corrosion resistance, and product protection.

Dimensional Inspection

Finished components are checked against production drawings and quality requirements. We pay attention to dimensions, connection positions, welds, panel flatness, and other important points.

Final Inspection and Packing

Before shipment, finished products are inspected and prepared for export. We use steel frames, bundles, or export-standard packaging according to product characteristics and transportation requirements.

For international orders, packaging is not a small detail. A good product can still arrive with problems if it is not properly protected during handling and transportation. That is why packing is treated as part of the production process rather than an afterthought.

7. Concrete Formwork Safety and Quality: What Buyers Should Check

Concrete formwork is closely connected with construction safety. I always recommend that buyers ask for more than a product photo and a quotation.

First, confirm whether the supplier can provide product drawings and technical information. Second, make sure the formwork is suitable for the loads and construction method of the project. Third, check the quality management process and relevant certifications. Finally, confirm that workers on site will follow the installation and inspection requirements for the specific system.

OSHA requires formwork and shoring to be inspected at relevant stages, and damaged shoring equipment that no longer has the required strength should not be used.

Fall protection is another important point. OSHA's construction requirements include specific fall-protection provisions for employees working on formwork or reinforcing steel where the applicable fall hazard reaches 6 feet (1.8 m) or more.

These rules do not mean that every project should use exactly the same setup. Local regulations, engineering drawings, site conditions, and project specifications must always be followed. What they do show is that formwork should be treated as engineered construction equipment, not simply as temporary boards or panels.

Source note: The checklist above is a practical purchasing guide prepared for this page. Safety and structural requirements must be confirmed against the applicable local regulations, engineering design, project specifications, and manufacturer's technical documentation. OSHA's formwork requirements are available in 29 CFR 1926.703.

8. Where Is Concrete Formwork Used?

One reason Concrete Formwork remains such an important construction product is that concrete itself is used almost everywhere. From a small residential building to a large bridge, fresh concrete needs support until it becomes a stable structural element.

Residential Buildings

Residential construction often requires repeated wall and slab work. Where the floor layout is repetitive, a suitable reusable formwork system can help create a more organized construction process.

Commercial Buildings

Offices, shopping centers, hotels, warehouses, and other commercial structures may contain different wall, column, beam, and slab designs. Formwork can be configured according to the structural requirements of different sections.

Bridges and Infrastructure

Bridge piers, foundations, retaining structures, tunnels, and other infrastructure projects often require strong and carefully supported formwork. In these applications, project-specific engineering becomes especially important.

Industrial Plants

Industrial construction can involve foundations, equipment bases, walls, columns, tanks, and other concrete structures. The formwork system may need to work around equipment, access restrictions, and unusual dimensions.

Customized Construction Projects

Some projects simply do not fit standard panel dimensions. For these applications, our team can work from drawings and technical requirements to develop customized formwork solutions.

9. Concrete Formwork Technical and Commercial Comparison

For international buyers, I also recommend looking beyond the product itself and comparing the supplier's manufacturing and service capability.

Source note: Company-specific information in this table is based on the manufacturing and product information supplied for Rizhao Fenghua Scaffolding Co., Ltd. Lead time depends on order quantity, customization, production scheduling, and other project factors.

10. Why Choose Rizhao Fenghua for Concrete Formwork?

There are many formwork suppliers in the international market, so I understand why buyers ask what makes a manufacturer worth working with.

For us, the answer starts with experience. Our company was established in 1953, giving us a long history in construction equipment manufacturing. Over the years, we have developed experience across building formwork, scaffolding systems, construction accessories, and customized construction solutions.

Our factory covers approximately 80,000 m² and includes professional manufacturing workshops and automated welding lines. This gives us a solid production base for handling both standard products and customized orders.

We also offer a broad product range. Customers can source Concrete Formwork, aluminum alloy formwork, steel formwork, ring lock scaffolding, Cuplock Scaffolding, Frame Scaffolding, adjustable supports, and construction accessories from the same manufacturer.

For customers with their own engineering drawings, we can review the requirements and develop products around those drawings. This is particularly useful for contractors and distributors who do not want to force a standard panel system into a project with unusual dimensions.

Quality management is another part of our manufacturing process. We operate under ISO9001 quality management requirements, with applicable products and manufacturing processes aligned with standards such as EN74 and EN1090, as well as CE requirements where applicable.

Our products have been exported to 126 countries and regions. International export experience has taught us that manufacturing is only one part of the job. Packaging, documentation, communication, production scheduling, inspection, and delivery all affect whether an order goes smoothly.

That is why we work with customers from the early technical discussion through manufacturing and shipment. We want the final product to make sense not only in a quotation but also on the actual construction site.

11. Ordering Concrete Formwork from Us

If you are planning to purchase Concrete Formwork, I recommend preparing several basic pieces of information before contacting a manufacturer.

• Project type and application

• Concrete wall, column, slab, beam, foundation, or other structure

• Required panel dimensions

• Project drawings or CAD files when available

• Estimated order quantity

• Expected construction cycle or reuse requirements

• Preferred steel or aluminum formwork system

• Destination country and delivery location

• Required standards or certification documents

• Target delivery schedule

The more information we receive, the easier it is for us to understand what you actually need. If the drawings are available, they are particularly helpful because they allow our technical team to review dimensions and configuration instead of guessing from a short product description.

Our standard production lead time is generally around 30–60 days, but the actual schedule depends on order quantity, product configuration, customization requirements, and current production planning.

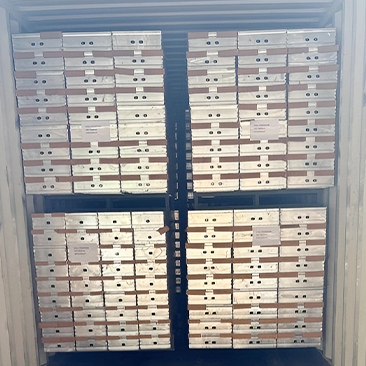

For export orders, we can arrange professional packaging using steel frames, bundles, or other export-standard methods. Sea freight, rail transportation, and other international logistics options can be considered according to the destination and shipment requirements.

12. Concrete Formwork FAQ

What is Concrete Formwork used for?

Concrete Formwork is used to hold and shape fresh concrete while it gains enough strength to become a stable structural element. It can be used for walls, columns, slabs, beams, foundations, bridges, industrial structures, and many other concrete applications.

What is the difference between steel and aluminum Concrete Formwork?

Steel formwork generally provides strong durability and is suitable for demanding applications and repeated use. Aluminum formwork is lighter and can be convenient for projects with repetitive layouts. The better option depends on project design, handling requirements, construction cycles, and structural needs.

Can you manufacture custom Concrete Formwork?

Yes. We can provide customized formwork according to customer drawings, dimensions, project requirements, and construction methods. We recommend providing drawings whenever possible so the technical requirements can be reviewed accurately.

How long does Concrete Formwork last?

There is no single service-life number that applies to every formwork system. Actual reuse depends on material, design, manufacturing quality, handling, cleaning, storage, loading, and maintenance. Steel and aluminum systems are generally intended for repeated use, but damaged components should be inspected before reuse.

What certifications and standards do your products follow?

Our manufacturing and quality management are based on ISO9001 requirements. Depending on the product and application, we work with standards and certifications including EN74, EN1090, and CE. Specific compliance should be confirmed for the exact product and project before ordering.

What is your production lead time?

Our normal production lead time is approximately 30–60 days. The final lead time depends on order quantity, customization, drawings, product configuration, production planning, and inspection requirements.

What payment terms do you accept?

We support international payment methods including T/T and L/C. Specific payment terms can be discussed according to the order, project, and commercial agreement.

How do you pack Concrete Formwork for export?

We select packaging according to the product dimensions, weight, shape, and transportation method. Steel frames, bundles, and export-standard packaging can be used to help protect the products during loading, transportation, and unloading.

Can you arrange international shipping?

Yes. We can support international delivery by sea, rail, and other logistics methods. The suitable transportation method depends on destination, cargo volume, delivery schedule, and customer requirements.

What should I send when requesting a quotation?

The most useful information includes product type, dimensions, quantity, drawings, project location, required standards, customization requirements, and delivery schedule. If you already have a formwork drawing, sending it with the inquiry can significantly improve quotation accuracy.

Conclusion: A Practical Concrete Formwork Partner for Global Construction

Good Concrete Formwork should make construction easier, not create another problem for the project team.

From my perspective as a manufacturer, the best solution is the one that fits the actual project. It needs suitable strength, accurate dimensions, practical connections, reliable manufacturing quality, reasonable installation methods, and enough flexibility for the construction environment.

At Rizhao Fenghua Scaffolding Co., Ltd., we combine long manufacturing experience with a broad range of formwork and scaffolding products. From steel concrete formwork and aluminum formwork to scaffolding systems and construction accessories, we can support standard orders as well as customized projects based on customer drawings.

Our 80,000 m² factory, automated welding lines, ISO9001 quality management, international standards, export experience, and customized production capability give us a strong foundation for serving contractors, distributors, builders, and project partners around the world.

If you are looking for a Concrete Formwork manufacturer, concrete formwork supplier, Steel Concrete Formwork System, or custom concrete formwork solution, send us your drawings, dimensions, quantity, and project requirements. We can review the application and work with you on a practical formwork solution for your construction project.

Reference Sources

• U.S. Occupational Safety and Health Administration (OSHA), 29 CFR 1926.703, Requirements for Cast-in-Place Concrete.

• U.S. Occupational Safety and Health Administration (OSHA), 29 CFR 1926.700, Definitions applicable to Concrete and Masonry Construction.

• American Concrete Institute (ACI), ACI 347R-14, Guide to Formwork for Concrete.

• European Commission Joint Research Centre, Eurocodes and related execution standards, including EN 1090.
