Concrete Column Formwork

When I talk with contractors about concrete column formwork, I usually start with a simple point: a good Formwork System should make the job easier, not create more work on the construction site. Columns may look simple from the outside, but the formwork around them has to deal with concrete pressure, repeated installation, alignment, lifting, cleaning, and removal. If any part of the system is poorly designed or difficult to handle, the problem quickly shows up in labor time, concrete surface quality, and project progress.

At Rizhao Fenghua Scaffolding Co., Ltd., we manufacture building formwork and Scaffolding Systems for construction projects in different markets. Our product range includes Aluminum Alloy Formwork, Steel Formwork, adjustable supports, ring lock scaffolding, Cuplock Scaffolding, Frame Scaffolding, and construction accessories. For projects that require column formwork, we can provide solutions based on the required column dimensions, construction method, site conditions, and customer drawings.

Our factory is located in Rizhao, Shandong, China, and covers approximately 80,000 square meters. With professional workshops, automated welding lines, and established production processes, we focus on making formwork that can be handled practically on site. Our products are supplied to construction projects in many countries and regions, with exports reaching 126 countries and regions.

This page explains how our Concrete Column Formwork works, what I would look at when choosing a system, where it can be used, how we manufacture it, and what buyers should know before placing an order.

1. What Is Concrete Column Formwork?

Concrete Column Formwork is a temporary mold used to shape and support fresh concrete when a column is being constructed. The formwork surrounds the reinforcement cage and holds the concrete in the required shape until the concrete has gained enough strength to stand on its own.

In a typical reinforced concrete column, the steel reinforcement is positioned first. The column formwork is then assembled around it and fixed in place. Concrete is poured into the enclosed space. During pouring and vibration, the formwork must remain stable and correctly aligned. Once the concrete has reached the required stage, the panels or formwork components can be removed.

It sounds straightforward, but there is a lot going on during this process. Fresh concrete is heavy, and concrete pressure can act strongly against the formwork walls. The system also needs to stay square or round, depending on the column design. Gaps between panels need to be controlled because excessive leakage can affect the finished concrete surface.

For this reason, I do not look at column formwork simply as a group of steel or aluminum panels. I look at the complete system: panels, connectors, clamps, supports, adjustment components, lifting points where required, and the way everything works together on site.

Depending on the project, column formwork may be designed for rectangular, square, or other column shapes. Steel formwork is often selected when strength and repeated use are important, while aluminum formwork can be attractive when low weight and fast handling are priorities. The right choice depends on the project rather than one material being suitable for every situation.

2. How Does a Concrete Column Formwork System Work?

I normally explain the working process in several simple steps.

Step 1: Prepare the Reinforcement

Before the formwork is installed, workers place the reinforcing steel according to the structural drawings. The reinforcement cage must have the correct position and concrete cover. This stage matters because once the formwork is closed, access becomes more limited.

Step 2: Position the Formwork Panels

The panels are placed around the reinforcement cage. Depending on the system, workers may connect the panels with clamps, bolts, pins, wedges, or other dedicated connectors.

The main goal is to create a stable enclosed space with the correct column dimensions. The panels should sit firmly and should not move during concrete placement.

Step 3: Check Alignment and Vertical Position

This is one of the steps I would never recommend skipping. The formwork needs to be checked for verticality, dimensions, joints, and overall stability before concrete is poured.

Adjustable supports can help workers make small corrections and keep the formwork in position. On larger construction sites, survey equipment may also be used to verify the column position and vertical alignment.

Step 4: Pour the Concrete

Concrete is then placed into the column formwork. The pouring speed should match the formwork design and project requirements. Concrete vibration is normally used to help remove trapped air and improve consolidation.

During this stage, workers should keep an eye on the joints and supports. If movement, excessive leakage, or unusual deformation appears, the operation should be stopped and checked rather than simply continuing.

Step 5: Allow the Concrete to Gain Strength

The concrete remains inside the formwork until the required condition for stripping has been reached. The exact timing depends on concrete strength development, temperature, curing conditions, structural requirements, and the project engineer's instructions.

Step 6: Remove and Prepare the Formwork for Reuse

After stripping is approved, the panels are removed carefully. We recommend cleaning concrete residue from the formwork and checking connectors and panel surfaces before the next use.

This reuse cycle is one of the main reasons contractors pay attention to formwork quality. A well-maintained formwork system can be used across multiple concrete pours, helping reduce repeated material and labor costs.

3. Main Features I Look for in Concrete Column Formwork

There are many formwork products on the market, but in real construction work I think several basic features matter most.

High Strength

Concrete column formwork has to resist the pressure generated by fresh concrete. Steel panels are particularly useful when the project requires a robust formwork structure and repeated operation.

Strength does not mean simply making every component heavier. A practical design balances panel thickness, reinforcement, connection points, support arrangement, and handling requirements.

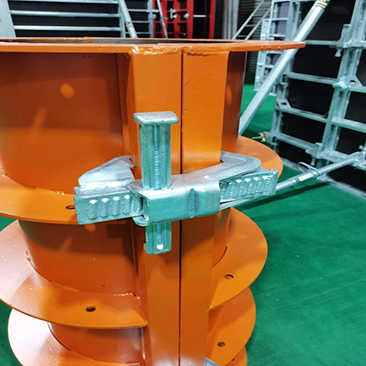

Stable Connections

Connections are a small part of the system but can have a big effect on site performance. If panels are difficult to connect or alignment changes during assembly, workers lose time.

For this reason, I prefer a system where the connection method is straightforward and suitable for the planned construction sequence.

Accurate Dimensions

Column formwork defines the final concrete shape. Panel dimensions and assembly accuracy therefore matter directly to the finished structure.

Easy Installation

A formwork system should be practical for workers. Panels that are unnecessarily complicated to assemble can increase labor requirements and make the construction schedule harder to control.

Reusable Construction Components

Many building projects contain repeated columns. When the same or similar column sizes appear throughout a project, reusable formwork can offer a clear practical benefit.

Adaptability

Construction sites rarely look exactly like a catalog drawing. Column dimensions, floor heights, access conditions, lifting equipment, and construction sequences can all vary.

That is why customized Concrete Column Formwork is often more useful than trying to force a standard product into a project where it does not fit.

4. Steel vs. Aluminum Column Formwork: What Should Buyers Consider?

Customers often ask me whether steel or aluminum is better for column formwork. I would not answer that with one fixed choice. Both materials have their own practical advantages, and the correct selection depends on how the system will be used.

Source: General material and formwork characteristics are summarized from established construction engineering practice. Specific performance depends on the actual formwork design, material grade, panel configuration, concrete mix, pour rate, temperature, and support arrangement. Project-specific structural calculations should be completed where required.

For our customers, we can manufacture both steel and aluminum alloy formwork. Rather than recommending a material without understanding the application, we normally review the drawings, column dimensions, expected reuse frequency, handling method, and site requirements first.

5. Technical Considerations Before Ordering Concrete Column Formwork

When a customer sends us an inquiry, I recommend providing more than just the words “concrete column formwork.” The more project information we have, the more useful our quotation and design suggestions can be.

Column Dimensions

The first information I need is the column size. Square and rectangular columns can require different panel arrangements. If several column sizes are used on the same project, it is useful to provide a complete size list.

Column Height

Column height affects panel configuration, support requirements, lifting arrangements, and installation procedures. For projects with different floor heights, this information should be included in the drawings or technical documents.

Column Shape

Most building columns are square or rectangular, but special structures may require other shapes. The formwork should follow the actual structural design.

Concrete Pouring Method

Whether concrete is placed by pump, bucket, or another method can influence the working process. Pouring speed and concrete properties are also important when evaluating lateral pressure on the formwork.

Project Reuse Requirements

If the same formwork will be used for dozens or hundreds of columns, the design should be considered as a complete construction cycle rather than a one-time product purchase.

Site Handling Conditions

I also recommend considering how workers will move the panels. Will a tower crane be available? Can components be manually handled? Is the working area narrow? These questions can affect the most suitable panel size and system configuration.

Source: This project-information checklist is based on common formwork engineering and procurement practice. Final system requirements should be confirmed against the project structural drawings and applicable local construction regulations.

6. Where Is Concrete Column Formwork Used?

Concrete columns appear in many types of construction, so column formwork has a wide range of applications.

Residential Buildings

Apartment buildings, housing projects, villas, and other residential structures commonly use reinforced concrete columns. Repeated floor layouts can make reusable formwork particularly practical.

Commercial Construction

Shopping centers, office buildings, hotels, and mixed-use developments may contain a large number of reinforced concrete columns. A properly planned formwork system can help keep repeated construction work organized.

Industrial Plants

Factories and industrial facilities often have different structural requirements from residential buildings. Larger columns, greater heights, and more demanding working conditions may require stronger customized formwork solutions.

Bridges and Infrastructure

Concrete columns and piers are also found in infrastructure projects. These structures can have different dimensions and site conditions, so formwork may need to be designed specifically around the project geometry.

Other Concrete Structures

Parking structures, public buildings, utility facilities, and other reinforced concrete projects can also use column formwork where cast-in-place concrete construction is required.

For every application, the basic principle remains the same: the formwork must provide the required shape and stability during concrete placement while allowing workers to install, inspect, strip, clean, and reuse the system efficiently.

7. How We Manufacture Concrete Column Formwork

As a manufacturer, I know that the final performance of a formwork product starts long before it reaches the construction site.

Our manufacturing process begins with reviewing the product design and project requirements. For customized orders, customer drawings and technical specifications are checked before production. This helps us understand the required dimensions, connection details, quantity, and application conditions.

Material Preparation

Suitable steel or aluminum alloy materials are prepared according to the product design. Material selection affects the strength, weight, welding process, surface treatment, and service performance of the finished component.

Cutting and Component Processing

Raw materials are processed into the required panel and structural components. Dimensional control at this stage is important because small inconsistencies can create problems when multiple panels are assembled together.

Welding and Frame Assembly

For steel formwork, welding is a key manufacturing process. Our factory uses automated welding lines together with professional production workshops. We follow EN1090-related welding requirements for applicable products and maintain production controls under our ISO9001 quality management system.

Panel Assembly

After the main structural components are produced, panels and related components are assembled according to the design. Connection points, dimensions, and overall construction are checked.

Inspection

Quality inspection is carried out through our production and quality management procedures. Depending on the product and order requirements, inspection can cover dimensions, welding, component condition, assembly, and packaging before shipment.

Packing and Shipment

Formwork products need suitable packaging because international transportation can involve handling at several points. We use steel frames, bundles, or export-standard packaging according to product characteristics and customer requirements.

Our standard production lead time is generally 30–60 days, depending on order quantity and customization requirements. We support T/T and L/C payment terms, while transportation can be arranged by sea, rail, or other international logistics methods.

8. Why Choose Rizhao Fenghua for Concrete Column Formwork?

When buying construction formwork from overseas, price is only one part of the decision. From my experience, buyers also need to consider whether the supplier can actually control production, understand drawings, communicate technical details, and deliver the correct components.

Rizhao Fenghua Scaffolding Co., Ltd. has been involved in manufacturing since 1953. Over the years, our business has developed around building formwork, scaffolding systems, and construction accessories.

Our approximately 80,000-square-meter factory gives us space for professional workshops and production equipment. We use automated welding lines and established manufacturing procedures to support larger orders as well as customized production.

Our product range is another practical advantage. A construction project may need more than column panels. It may also require Wall Formwork, adjustable supports, scaffolding systems, and other construction accessories. Having several related product categories under one manufacturing organization can simplify procurement for customers who are building a complete site solution.

We operate under an ISO9001 quality management system, and our products are manufactured with reference to international requirements such as EN74 and EN1090, with applicable products carrying CE-related certification. Certification and standards are important, but I believe they should support actual production control rather than simply appear on a sales page.

Customization is also an important part of our service. Customers can provide drawings and project information, and our team can review the requirements for a suitable formwork configuration. This is particularly useful when column dimensions, connection details, panel arrangements, or site conditions differ from standard products.

We have supplied products to 126 countries and regions. That international experience has taught us that construction practices can vary from one market to another. Packaging, documentation, connection preferences, transportation, and project schedules may all need to be discussed before production begins.

9. Practical Comparison: Standard vs. Customized Column Formwork

There is no problem with a standard formwork product when the project matches its dimensions and working method. The trouble starts when a standard panel is forced into a project that needs something different.

Source: Procurement and engineering comparison based on common formwork manufacturing practice. Actual lead time and configuration depend on the confirmed order, drawings, quantity, material, and production schedule.

For a project with hundreds of identical columns, a carefully planned reusable system can make more sense than purchasing unrelated standard panels. On the other hand, a small project with common dimensions may benefit from a simpler standard solution.

That is why we prefer to discuss the project before recommending a configuration.

10. Concrete Column Formwork FAQ

What is Concrete Column Formwork used for?

Concrete Column Formwork is used to create the required shape and dimensions of cast-in-place concrete columns. It surrounds the reinforcement and supports fresh concrete during placement and curing until the concrete reaches the required condition for stripping.

Can you manufacture customized Concrete Column Formwork?

Yes. We can develop customized formwork solutions according to customer drawings and project requirements. Useful information includes column dimensions, height, quantity, material preference, connection requirements, and construction method.

Do you provide steel column formwork?

Yes. Steel formwork is part of our building formwork product range. It can be designed for repeated construction use and different project requirements.

Do you provide aluminum column formwork?

Yes. We also manufacture aluminum alloy formwork. Aluminum can be considered when project teams place greater emphasis on lighter components and practical handling.

How many times can concrete column formwork be reused?

There is no single reuse number that applies to every formwork system. Service life depends on material, structural design, handling, cleaning, storage, concrete conditions, maintenance, and the number of construction cycles. We recommend evaluating the actual system and project conditions rather than relying on a generic reuse figure.

What information should I provide for a quotation?

I recommend sending the column drawings or dimensions, column height, number of columns, required material, project location, expected delivery date, and any special connection or installation requirements. If CAD or PDF drawings are available, they are particularly helpful.

What is your normal production lead time?

Our standard production lead time is usually 30–60 days. The actual schedule depends on order quantity, customization requirements, drawing confirmation, production capacity, and other project details.

How do you pack Concrete Column Formwork for export?

We can use steel frames, bundles, or export-standard packaging according to the product and transportation requirements. The goal is to keep components organized and protected during loading, transportation, and unloading.

What payment methods do you accept?

We support flexible payment terms including T/T and L/C. Specific payment arrangements are confirmed in the sales contract according to the order.

Can you ship formwork internationally?

Yes. We have extensive export experience and have supplied products to 126 countries and regions. Goods can be transported by sea, rail, or other international logistics methods depending on the destination and project schedule.

11. A Practical Way to Start Your Column Formwork Project

If you are currently comparing Concrete Column Formwork Suppliers, I suggest starting with the drawings instead of starting with price.

Send us the column dimensions and project drawings first. We can then look at the required panel configuration, material, connection method, quantity, and expected construction cycle. This gives both sides a much clearer picture of what is actually needed.

For contractors, Formwork Companies, distributors, and construction project buyers, this approach can also reduce misunderstandings during production. A few minutes spent confirming dimensions and technical requirements before ordering can save much more time later.

At Rizhao Fenghua, we combine formwork manufacturing, scaffolding production, customization, quality management, packaging, and international delivery in one supply process. Whether the project needs standard column formwork or a customized Concrete Column Formwork System, we can review the requirements and develop a practical solution around the actual construction conditions.

Our goal is simple: provide formwork that workers can install, contractors can reuse, and project teams can rely on throughout the construction process.
