Aluminum Formwork System for Concrete Slabs

1. What Is an Aluminum Formwork System for Concrete Slabs?

An Aluminum Formwork System for Concrete Slabs is a reusable formwork solution used to create the required shape and dimensions of concrete floor slabs. The system normally consists of aluminium panels, supporting components, connectors, and other accessories that work together during concrete construction.

The basic idea is easy to understand. Fresh concrete is not strong enough to hold its final shape by itself. The formwork creates a temporary surface underneath and around the concrete. The support system holds the panels in position until the concrete develops enough strength for the planned stripping operation.

After stripping, the panels can be cleaned, checked, moved, and reused for another slab section or construction cycle.

This reusable feature is one of the main reasons contractors look at aluminum slab Formwork Systems for buildings with repeated floor layouts.

What Does a Slab Formwork System Usually Include?

A slab system is more than a flat aluminium panel. Depending on the project, it can include slab panels, beam panels, corner components, supports, connectors, pins, wedges, and other accessories.

The exact configuration depends on the building design. A residential tower with many identical floors will have different requirements from a commercial building with large open spaces and irregular floor plans.

Source: Rizhao Fenghua product design practice and general Concrete Formwork principles. Final component selection and support requirements must be confirmed by project-specific engineering documents.

One thing I always stress to customers is that the system should be planned as a complete package. If slab panels are ordered without considering beam connections, supports, openings, and the construction sequence, the contractor may have unnecessary problems during installation.

2. How Does Aluminum Slab Formwork Work?

The working process is straightforward, but good results depend on careful preparation.

Step 1: Review the Building Drawings

Before we manufacture the formwork, we study the customer drawings. We need to understand the floor layout, slab thickness, beam locations, openings, columns, walls, and repeated dimensions.

This information helps us determine how the Aluminum Formwork System for Concrete Slabs should be arranged.

For example, if a residential building has the same floor layout on many levels, we can plan the panel system around that repeated geometry. This makes the same components useful over multiple construction cycles.

Step 2: Manufacture the Panels

Once the design is confirmed, aluminium panels and related components are manufactured according to the approved drawings.

Dimensional consistency matters because the panels must connect correctly. Slab formwork is rarely used alone. It has to meet Wall Formwork, beam formwork, columns, corners, and supporting components.

Step 3: Install the Supports

The supporting system is installed according to the project design. The supports provide the required support for the slab panels while the concrete is being placed and while it develops the required strength.

The actual support arrangement must be based on engineering calculations and the specific construction method. We do not recommend using one generic support spacing for every project.

Step 4: Install the Slab Panels

Workers position and connect the aluminium slab panels according to the planned layout. They also install beam components, corners, openings, and other related parts as required.

The modular design is especially useful here. Once the workers understand the system, the same installation sequence can be repeated across similar floors.

Step 5: Check the Formwork

Before concrete placement, the completed formwork should be inspected carefully.

Workers should check the slab level, dimensions, connections, supports, openings, cleanliness, and general stability. This is a simple step, but it can prevent many avoidable problems.

Step 6: Place the Concrete

Concrete is placed according to the approved construction procedure. During placement, the formwork and support system must handle the loads created by fresh concrete, workers, equipment, and the construction process.

Concrete behavior is influenced by factors such as mix design, placement speed, temperature, vibration, and slab geometry. Therefore, actual loading conditions should always be evaluated for the project.

Step 7: Strip and Reuse

After the concrete reaches the required condition and stripping is approved, the panels are removed in the planned sequence.

The panels are then cleaned and inspected. Good panels can be moved to the next location and reused.

Source: General concrete construction and formwork practice. Actual erection, support, concrete placement, inspection, and stripping procedures must follow project-specific engineering requirements and local safety regulations.

3. Main Advantages of Aluminum Formwork for Concrete Slabs

Why do contractors choose aluminium for slab formwork? In my experience, it usually comes down to a combination of weight, reuse, modular design, and repeated construction.

1. Lightweight Material

Aluminium has a lower density than steel. This allows suitably designed aluminium panels to be lighter than comparable steel components.

For slab construction, where panels may need to be moved frequently, lower component weight can make handling more practical.

However, “lightweight” does not mean the system can ignore structural requirements. Panel thickness, reinforcement, profile design, support arrangement, and connection strength still need to be considered.

2. Reusable Design

The Reusable Aluminum Formwork System is intended to be used through multiple construction cycles.

This can be especially useful for apartment buildings and other structures with repeated floor plans. Instead of preparing a completely new slab mold for every floor, the same formwork package can move through the building.

Good reuse requires good management. Panels should be cleaned after stripping, inspected for damage, and stored in a way that reduces deformation and unnecessary impact.

3. Modular Panel Arrangement

A modular system gives the contractor a repeatable installation method. Workers can become familiar with the panel layout and use the same basic process on similar floors.

This can help make site operations more organized.

4. Customizable Dimensions

Buildings do not come in one standard size. We can manufacture Custom Aluminum Slab Formwork according to customer drawings.

Customized panels may be required for different slab thicknesses, beam positions, openings, corners, and special architectural or structural details.

5. Durable Construction

Aluminium alloy provides a durable material option for reusable formwork. Actual service life depends on the material specification, panel design, manufacturing quality, site handling, cleaning, storage, and maintenance.

6. Suitable for Repeated Floor Construction

This is perhaps the strongest practical reason to consider aluminium slab formwork.

If a building has many floors with similar dimensions, the formwork can be designed around the repeated cycle. The same panels can be installed, stripped, cleaned, moved, and installed again.

7. Easier System Management

A planned modular system can also make component management easier. Panels can be identified by type or location, and accessories can be organized according to the installation sequence.

For large projects, this kind of organization matters. Small mistakes repeated over hundreds of construction cycles can become expensive.

4. Aluminum Slab Formwork Compared with Steel and Timber

When customers ask me whether aluminium is better than steel or timber, I avoid giving a simple yes or no.

Each material has a different role.

Timber is flexible and easy to modify. It can be useful when the structure has unusual shapes or when on-site adjustment is important.

Steel offers high strength and is commonly considered for heavy-duty applications. The downside is that steel is much denser than aluminium, so comparable components can be heavier.

Aluminium sits somewhere between these options. It provides a reusable metal system while offering a lower material density than steel.

Source: General physical characteristics of aluminium, steel, and timber combined with common formwork construction practice. The table is a qualitative comparison, not a laboratory test or engineering performance guarantee.

There is also a second question that matters more to project managers: which system gives the best overall value?

I recommend looking beyond the purchase price.

Source: General construction cost-planning principles and Rizhao Fenghua quotation practice. Actual costs vary according to project location, labor rates, quantities, logistics, reuse cycles, and confirmed specifications.

For a high-rise residential project with many similar floors, the reuse factor may be very important. For a small project with only a few slabs, the calculation can be completely different.

That is why we prefer to understand the project before recommending a specific formwork configuration.

5. Applications of Aluminum Formwork System for Concrete Slabs

The Aluminum Formwork System for Concrete Slabs is mainly considered for concrete construction where reusable and modular slab forming can provide practical benefits.

Residential Buildings

Residential construction is one of the most common applications I discuss with customers.

Apartment buildings often have similar floor layouts. Bedrooms, living areas, corridors, walls, and slab sections may repeat from one level to another.

This creates a good environment for reusable aluminium formwork because the panel arrangement can be designed around the repeated floor plan.

High-Rise Buildings

High-rise buildings often have many repeated floors, making construction cycles very important.

With a suitable formwork design, aluminium slab panels can be moved through different levels according to the construction schedule.

Of course, high-rise projects also involve special safety requirements, lifting plans, edge protection, working platforms, wind conditions, and concrete placement procedures. These factors must be included in the overall construction plan.

Hotels

Hotels often contain repeated guest-room layouts. This can make modular slab formwork useful in suitable areas.

At the same time, hotels may have large lobbies, restaurants, conference spaces, and other areas with unusual geometry. We can therefore design the aluminium system for the sections where it makes the most sense.

Commercial Buildings

Office buildings and commercial facilities may include repeated structural areas as well as unique architectural spaces.

An Aluminium Slab Formwork System can be considered for repeated concrete sections while other formwork methods may be used for irregular areas.

Industrial Construction

Industrial plants can contain concrete floors, platforms, equipment foundations, beams, walls, and other structures.

Where the slab layout is compatible with modular reusable formwork, aluminium can be considered as part of the construction plan.

Infrastructure Projects

Infrastructure projects are highly varied. Bridges, transportation structures, utility facilities, and other civil engineering projects may have special loading and geometry requirements.

For these applications, I recommend project-specific engineering evaluation before choosing the formwork system.

Source: Rizhao Fenghua product application experience and general construction practice. Actual suitability depends on project engineering, structure, construction sequence, and local requirements.

6. How We Manufacture Aluminum Formwork for Concrete Slabs

As a manufacturer, I believe the quality of a slab formwork system starts before the first aluminium profile is processed.

It starts with understanding the project.

Drawing Review

We begin by reviewing the customer's architectural and structural drawings. We look at slab thickness, floor dimensions, beams, columns, openings, wall positions, and repeated layouts.

This helps us understand how many panels are needed and how they should work together.

Formwork Design

After reviewing the drawings, the formwork layout can be developed.

Our team considers panel sizes, connections, corners, beam areas, openings, support requirements, and construction sequence.

The goal is not to create the most complicated system. The goal is to create a practical one that workers can understand and use repeatedly.

Material Preparation

Aluminium alloy materials are prepared according to the confirmed production requirements.

Material selection needs to balance strength, rigidity, weight, manufacturability, and intended application.

Cutting and Machining

Aluminium sections and other components are cut and processed according to production drawings.

Dimensional accuracy is important because slab panels need to connect with other formwork components. Poor dimensional control can create problems during assembly.

Welding and Fabrication

Where welding is required, components are fabricated using appropriate welding processes. Our factory has automated welding lines and professional workshops to support consistent production.

For relevant products and processes, we work with applicable EN 1090 requirements.

Assembly and Quality Inspection

After manufacturing, components are inspected. We check dimensions, connections, welding areas, component condition, and overall fit according to the applicable production requirements.

Our production is managed under an ISO 9001 quality management system.

Depending on the product and destination market, relevant international requirements may include EN 74, EN 1090, and CE-related conformity requirements.

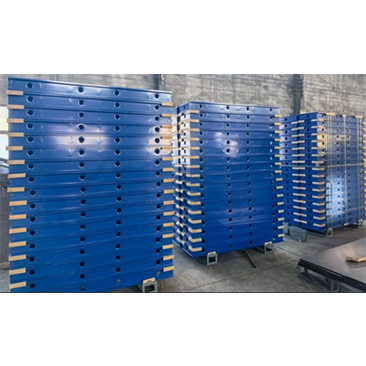

Export Packing

After inspection, products are packed for shipment.

We can use steel frames, bundles, or export-standard packaging depending on the product, quantity, and transportation requirements.

Good export packing is important because the products may travel a long distance before reaching the construction site.

Production Lead Time

Our standard production lead time is usually 30–60 days. The actual schedule depends on order quantity, customization requirements, drawing confirmation, production workload, and other project conditions.

For customized Aluminum Formwork System for Concrete Slabs, early drawing confirmation is particularly helpful because production cannot properly begin until the important project details are clear.

7. Why Choose Rizhao Fenghua for Aluminum Slab Formwork?

When I talk to international customers, I often say that choosing a formwork supplier is almost as important as choosing the formwork itself.

The supplier needs to understand the product, manufacture it consistently, communicate clearly, and deliver it in a condition that makes sense on the construction site.

Manufacturing Experience Since 1953

Rizhao Fenghua Scaffolding Co., Ltd. was established in 1953. We have long-term experience in formwork, scaffolding, and construction accessories.

Construction technology has changed significantly over the years, so we combine our manufacturing experience with modern equipment and customized production.

80,000 m² Manufacturing Facility

Our factory covers approximately 80,000 square meters and includes professional manufacturing workshops, advanced production equipment, and automated welding lines.

This gives us the production environment needed for both standard construction products and customized projects.

Customized According to Customer Drawings

We provide customized aluminum slab formwork according to customer drawings and project requirements.

This means we can discuss the actual floor layout rather than trying to force every customer into the same standard panel arrangement.

Quality Management

Our manufacturing process follows ISO 9001 quality management requirements. For relevant products, we also work with international standards and certification requirements such as EN 1090, EN 74, and CE-related requirements.

I recommend that every customer confirm the exact compliance requirements for the destination country and specific product before ordering.

Complete Construction Product Range

Our product range includes aluminium alloy formwork, Steel Formwork, adjustable supports, ring lock scaffolding, Cuplock Scaffolding, Frame Scaffolding, and construction accessories.

This allows us to support customers who need several types of temporary construction equipment for one project.

International Export Experience

Our products are exported to 126 countries and regions worldwide.

International delivery involves more than putting products into a container. We also need to consider packing, loading, documentation, shipping schedules, and destination requirements.

Flexible Payment and Delivery

We support payment methods including T/T and L/C, according to the agreed contract.

Products can be shipped by sea, rail, or other international logistics methods. The suitable transportation method depends on destination, order quantity, delivery schedule, and customer requirements.

8. Aluminum Formwork System for Concrete Slabs FAQ

What is an Aluminum Formwork System for Concrete Slabs?

It is a reusable aluminium formwork system designed to create and support concrete slabs during construction. It normally includes slab panels, supporting components, connectors, and related accessories.

Why use aluminium for concrete slab formwork?

Aluminium has a lower density than steel and can be used to create relatively lightweight reusable panels. The system is also well suited to modular construction and repeated floor layouts.

Is aluminium slab formwork reusable?

Yes. The panels are designed for repeated construction cycles. Actual reuse depends on panel design, material quality, site handling, cleaning, storage, maintenance, and construction conditions.

Can you manufacture custom aluminum slab formwork?

Yes. We manufacture customized formwork according to customer drawings and project requirements. Slab dimensions, thickness, beam positions, openings, corners, and other details can be considered during system planning.

Is aluminum formwork lighter than steel?

Aluminium has a lower density than steel. Therefore, suitably designed aluminium formwork components are generally lighter than comparable steel components. Actual weight depends on panel dimensions, material specification, reinforcement, and structural design.

What types of buildings are suitable for aluminium slab formwork?

Residential buildings, hotels, commercial buildings, industrial projects, and selected infrastructure applications can be considered. Projects with repeated floor layouts are often particularly suitable for reusable modular systems.

Can aluminium formwork be used for high-rise buildings?

Yes, where the building design and construction method are compatible. High-rise projects require careful planning for lifting, working platforms, edge protection, wind conditions, concrete placement, and other safety requirements.

What information do you need before quoting?

We recommend providing architectural and structural drawings. Useful information also includes slab thickness, floor layout, number of floors, building height, project quantity, destination, required standards, and expected delivery date.

What is your standard production time?

Our standard production lead time is generally 30–60 days. The exact schedule depends on order quantity, customization, drawing confirmation, production planning, and project complexity.

How do you pack aluminum slab formwork for export?

We use steel frames, bundles, or export-standard packaging according to the product and transportation requirements. The packing method is planned to support safe loading, transportation, and unloading.

What payment terms do you support?

We support T/T and L/C, subject to the agreed commercial contract.

How can the panels be maintained?

Panels should be cleaned after stripping and checked for deformation or damage. They should be stored carefully and protected from unnecessary impact. Proper maintenance is important for reusable formwork.

What standards do your products follow?

Our manufacturing operates under ISO 9001 quality management. Depending on the product and destination market, applicable requirements may include EN 1090, EN 74, and CE-related conformity requirements.

Can you supply other construction products?

Yes. In addition to aluminium formwork, we manufacture steel formwork, adjustable supports, ring lock scaffolding, cuplock scaffolding, frame scaffolding, and construction accessories.

Can I get a quotation based only on floor area?

A rough estimate may be possible, but an accurate quotation requires more information. Floor area alone does not show the exact slab shape, beam layout, openings, wall positions, corners, and other components.

Conclusion: Is an Aluminum Slab Formwork System Right for Your Project?

From my experience, the best formwork decision starts with the construction plan rather than the product catalog.

An Aluminum Formwork System for Concrete Slabs can be a practical choice when a project needs reusable panels, modular installation, relatively lightweight components, and repeated concrete slab construction.

It is particularly worth considering for residential buildings, high-rise projects, hotels, commercial buildings, and other structures where similar floor layouts are repeated.

But I would not recommend choosing aluminium simply because it sounds modern. The building design must be suitable. The formwork must be properly engineered. The support system must match the actual loads. Workers need suitable training, and the panels need proper maintenance.

Before placing an order, I recommend checking several things:

• Are the floor layouts repeated?

• How many concrete slab cycles will the system be used for?

• What are the slab thicknesses and dimensions?

• Where are the beams, openings, columns, and walls?

• How will the panels be moved on site?

• What support system is required?

• What standards are required in the destination market?

• What packaging and shipping method will be used?

• What is the required project delivery schedule?

• Can the supplier manufacture according to your drawings?

These questions give us a much clearer picture than simply asking for the price of aluminium formwork per square meter.

At Rizhao Fenghua Scaffolding Co., Ltd., we manufacture Aluminum Formwork System for Concrete Slabs according to customer drawings and project requirements. With manufacturing experience dating back to 1953, an approximately 80,000-square-meter factory, professional workshops, automated welding lines, and international export experience, we can support customers looking for customized formwork and scaffolding solutions.

Our standard production lead time is usually 30–60 days, depending on order quantity, customization, drawing confirmation, and production planning. We support T/T and L/C payment terms according to the agreed contract, and products can be shipped by sea, rail, or other international logistics methods.

If you are planning a residential tower, commercial building, hotel, industrial project, or another concrete construction project, send us your drawings and basic project information.

We can review the floor layout, discuss the required aluminium slab panels and accessories, confirm the formwork configuration, and work with you on production, packing, and delivery.

For us, a good slab formwork system is not simply a set of aluminium panels. It is a system that makes sense from the factory to the construction site—and continues to work through every planned construction cycle.

Technical Sources and Reference Notes

The information in this article is intended for general product education and purchasing reference. It does not replace structural design, engineering calculations, approved shop drawings, construction method statements, risk assessments, or local construction regulations.

• ISO 9001: International standard for quality management systems.

• EN 1090: European standard series related to the execution of steel and aluminium structures and applicable conformity requirements.

• EN 74: European standard covering specified couplers, spigot pins, and baseplates associated with scaffolding and falsework applications.

• CE marking: European conformity marking that applies to products falling within relevant European legislation.

• General formwork engineering practice: Formwork loading, support spacing, erection, inspection, concrete placement, and stripping must be determined according to the actual project conditions.

Table source note: The comparison tables combine general material characteristics, construction formwork principles, and Rizhao Fenghua product planning experience. They are intended as practical buyer guidance and should not be treated as laboratory test results or guaranteed product performance.
